Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Remove the right inner fender.

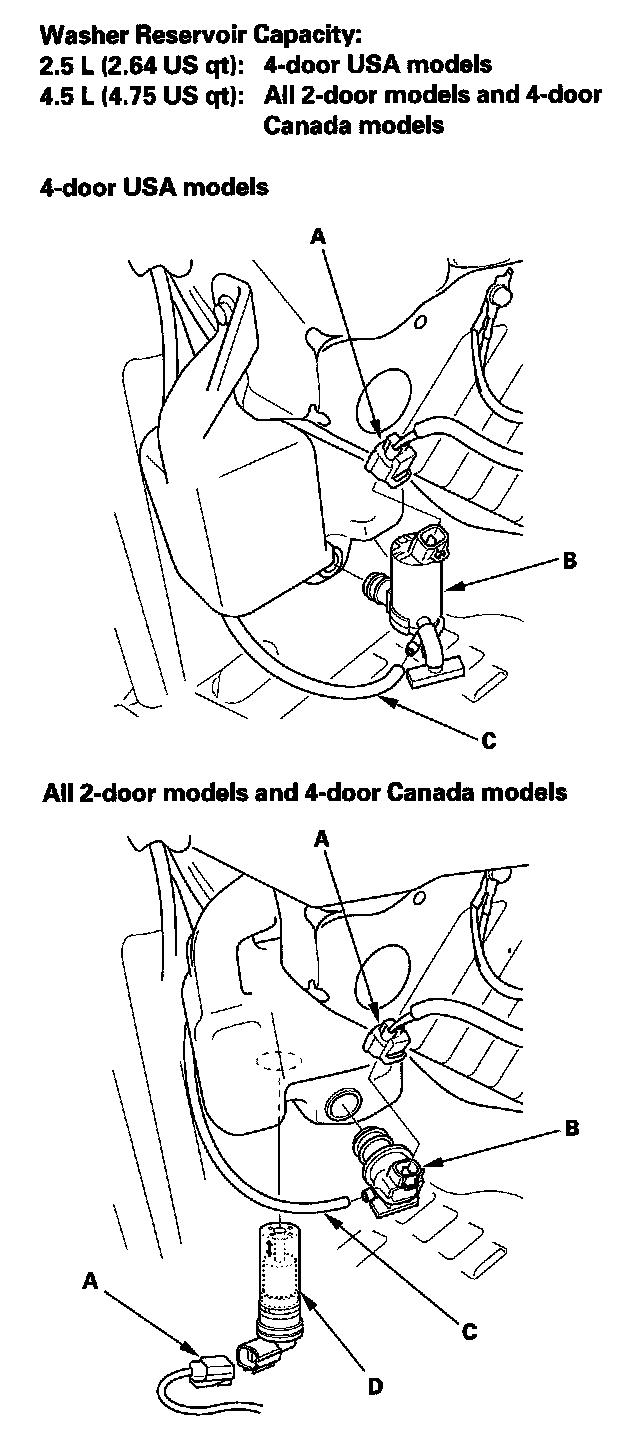

2. Disconnect the 2P connector(s) (A) from the washer motor (B) and the washer fluid level switch (Canada models).






3. Disconnect the washer tube (C), then if necessary, remove the washer motor and the washer fluid level switch (D) (Canada models).

NOTE: Fluid may flow out of the opening.

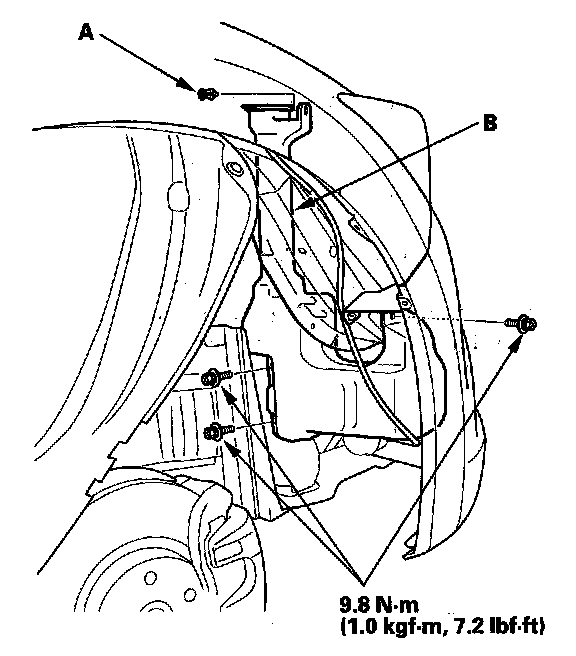

4. Remove the clip (A) and three bolts from the washer reservoir (B).






5. Install the washer reservoir in the reverse order of removal. Check the washer motor operation.
