Variable Induction Control Actuator: Service and Repair

IMT Actuator Replacement

J35Z3 engine

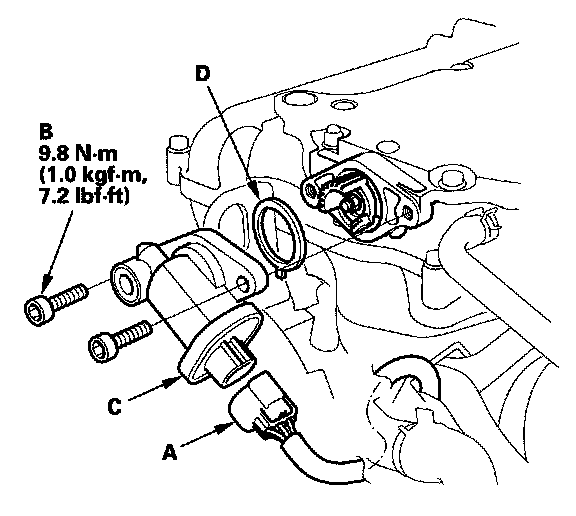

1. Remove the engine cover.
2. Disconnect the IMT actuator 5P connector (A).






3. Remove the bolts (B) and the IMT actuator (C).
4. Install the parts in the reverse order of removal with a new O-ring (D).
