4TH Clutch Transmission Fluid Pressure Switch Replacement

4th Clutch Transmission Fluid Pressure Switch Replacement

1. Do the battery removal procedure.
2. Remove the air cleaner assembly.

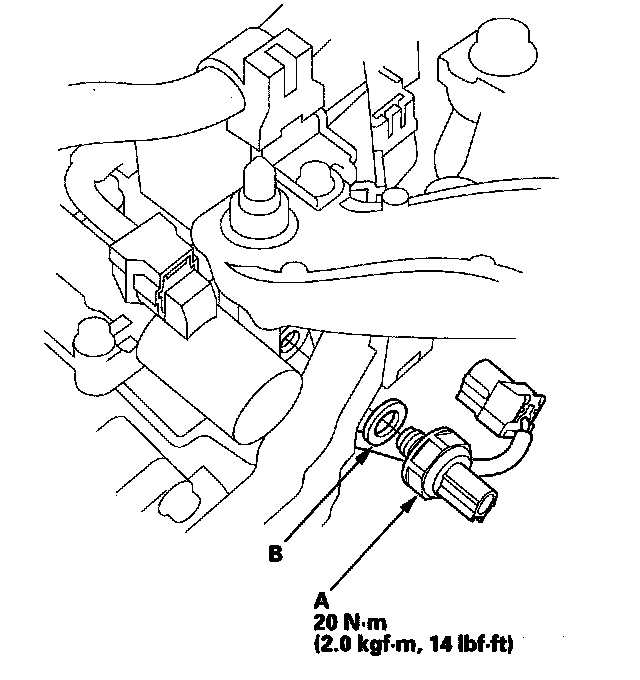

3. Disconnect the 4th clutch transmission fluid pressure switch connector, and remove the 4th clutch transmission fluid pressure switch (A).





4. Install the new 4th clutch transmission fluid pressure switch and a new sealing washer (B), and tighten the switch.
5. Make sure there is no water, oil, dust, or foreign particles inside the connector.
6. Connect the connector securely.
7. Install the air cleaner assembly.
8. Do the battery installation procedure.
