Output Shaft (Countershaft) Speed Sensor Replacement

Output Shaft (Countershaft) Speed Sensor Replacement


M/T

1. Lift the vehicle, and support it with jackstands.
2. Remove the splash shield.

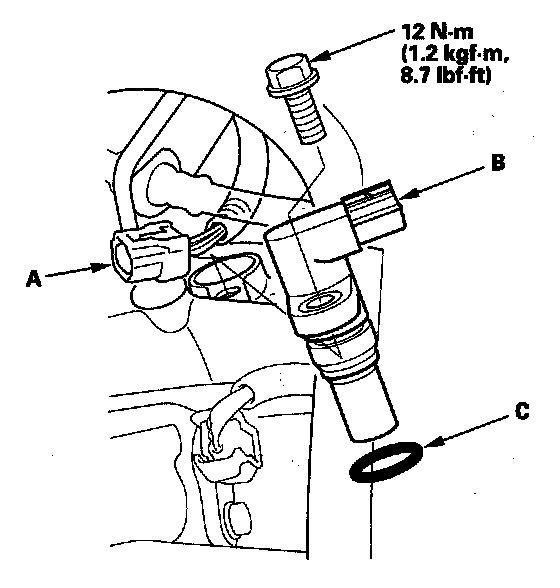

3. Disconnect the output shaft (countershaft) speed sensor connector (A).






4. Remove the output shaft (countershaft) speed sensor (B).
5. Install the parts in the reverse order of removal with a new O-ring (C).
