View 226-249: 227

227. Audio Unit (except USA Navigation):

249. XM Receiver ('07-'08 USA: Navigation):

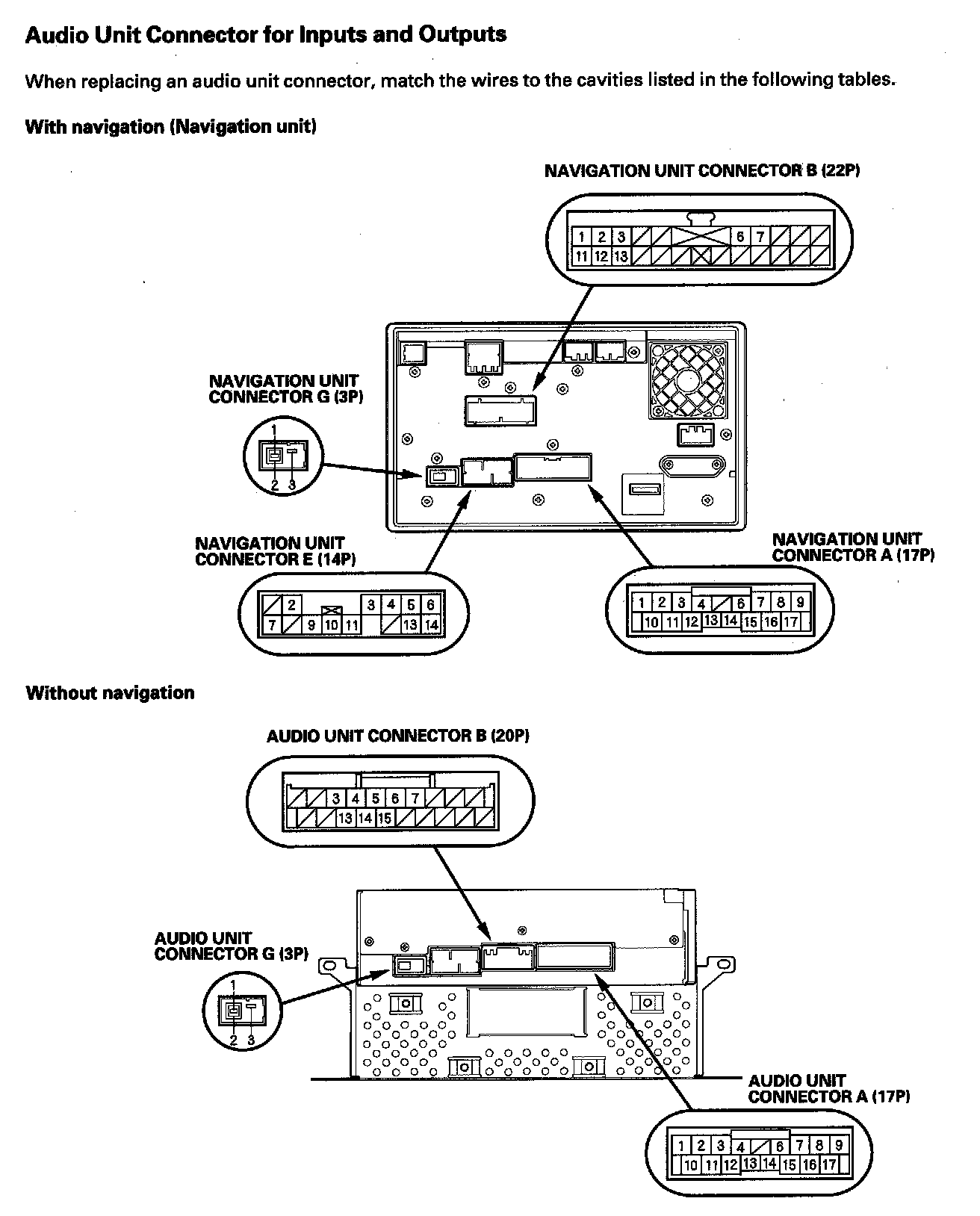

Audio Unit Connector For Inputs And Outputs (Part 1):

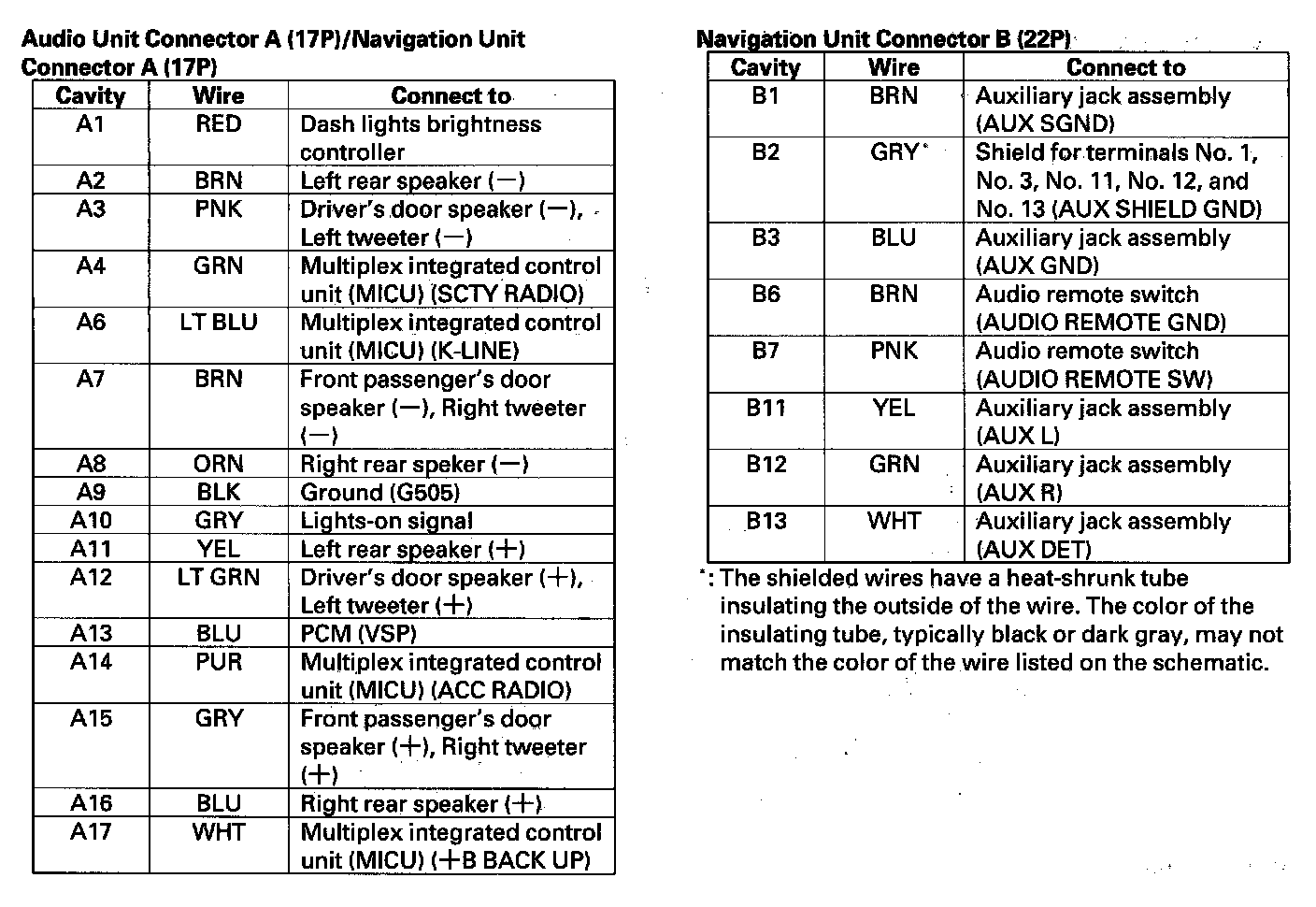

Audio Unit Connector For Inputs And Outputs (Part 2):

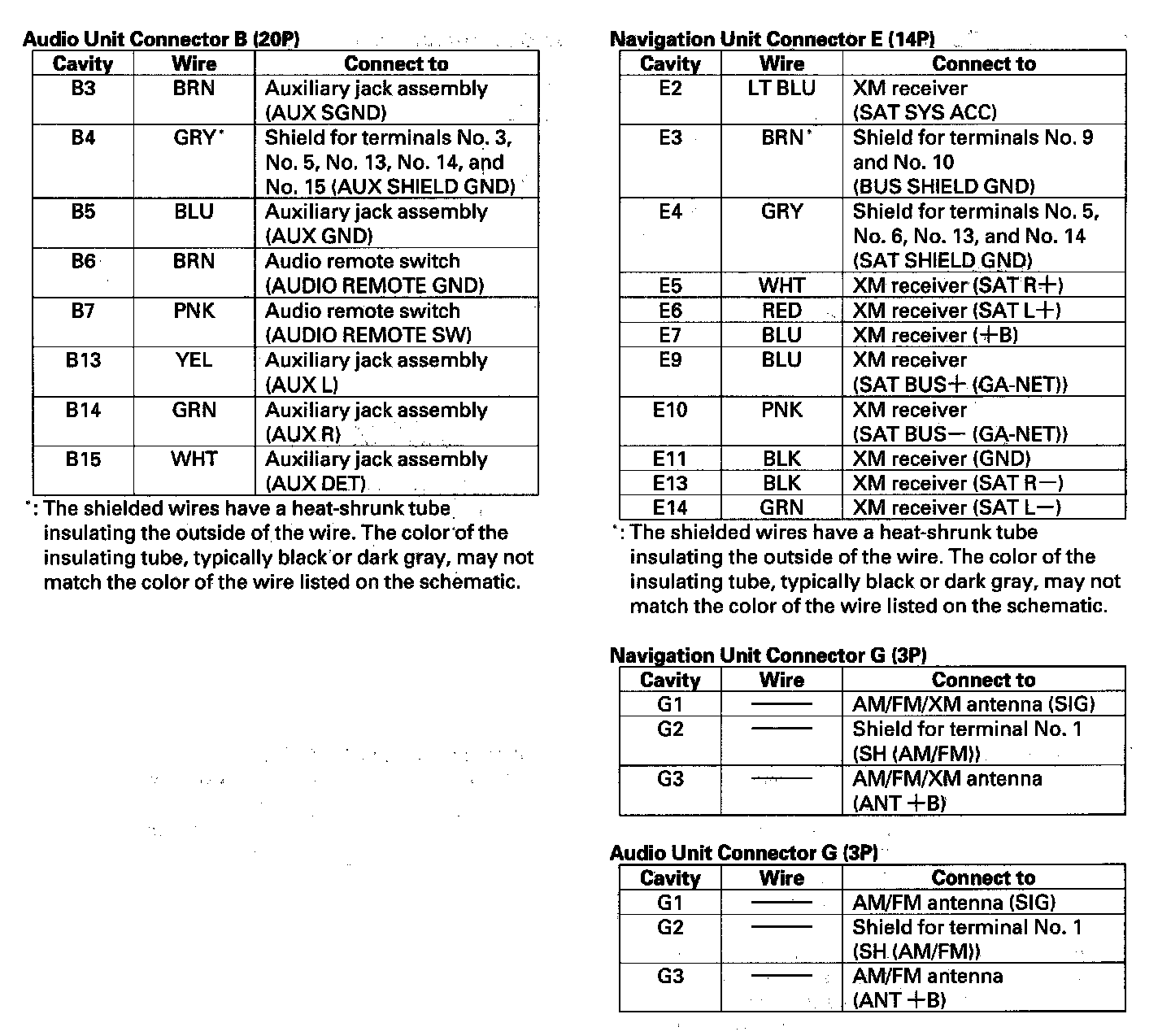

Audio Unit Connector For Inputs And Outputs (Part 3):

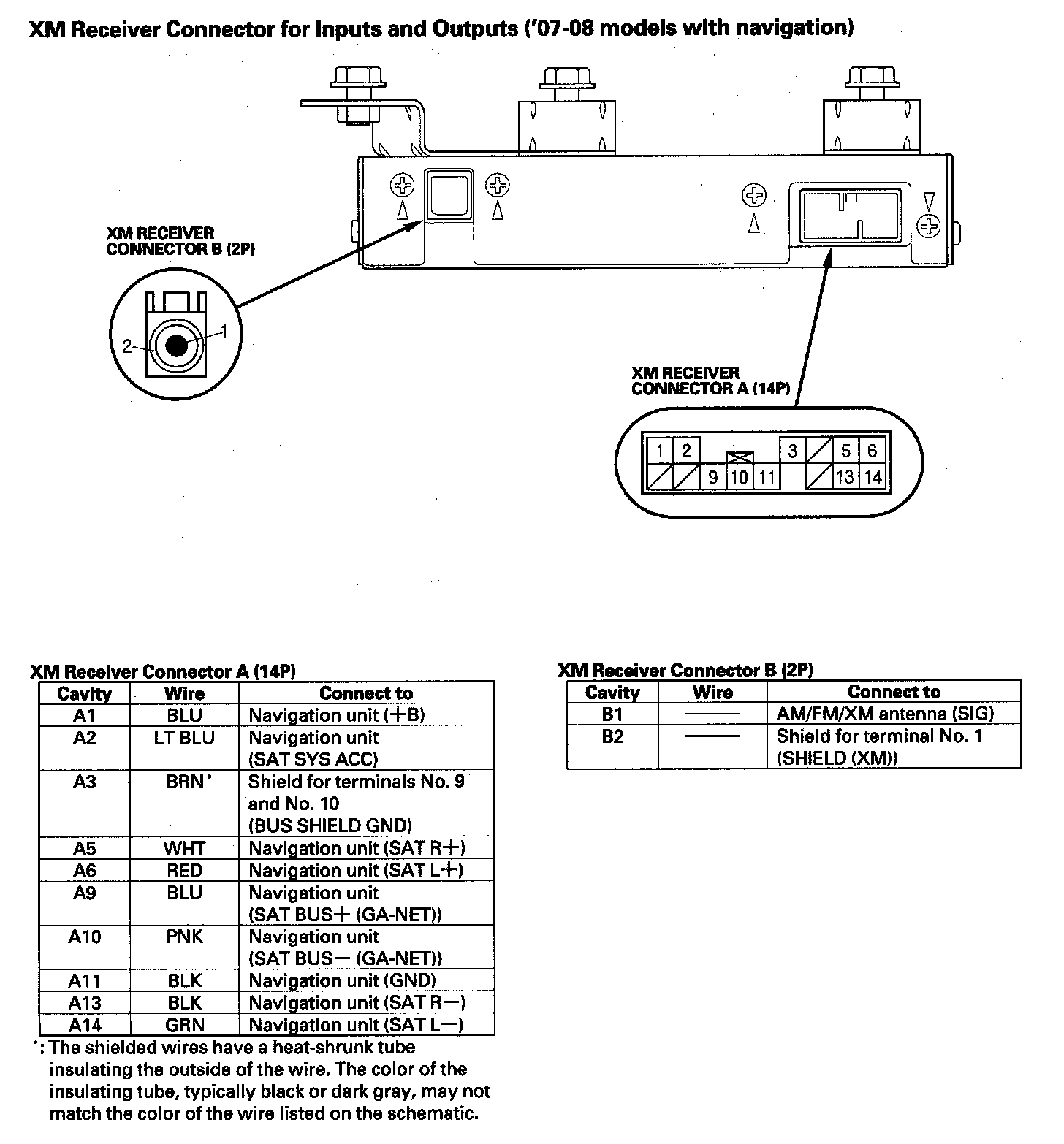

XM Receiver Connector For Inputs And Outputs ('07-08 Models With Navigation):
