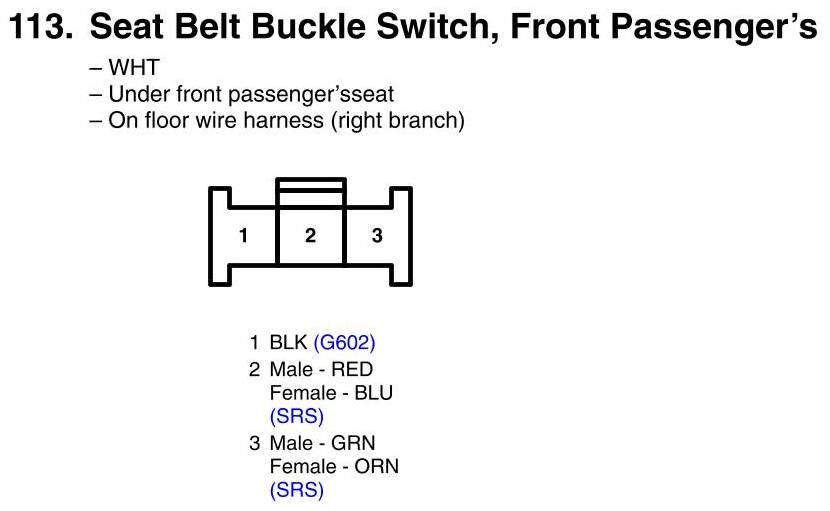

View 113 - Seat Belt Buckle Switch, Front Passenger's Connector View
View 113 - Seat Belt Buckle Switch, Front Passenger's Connector View
