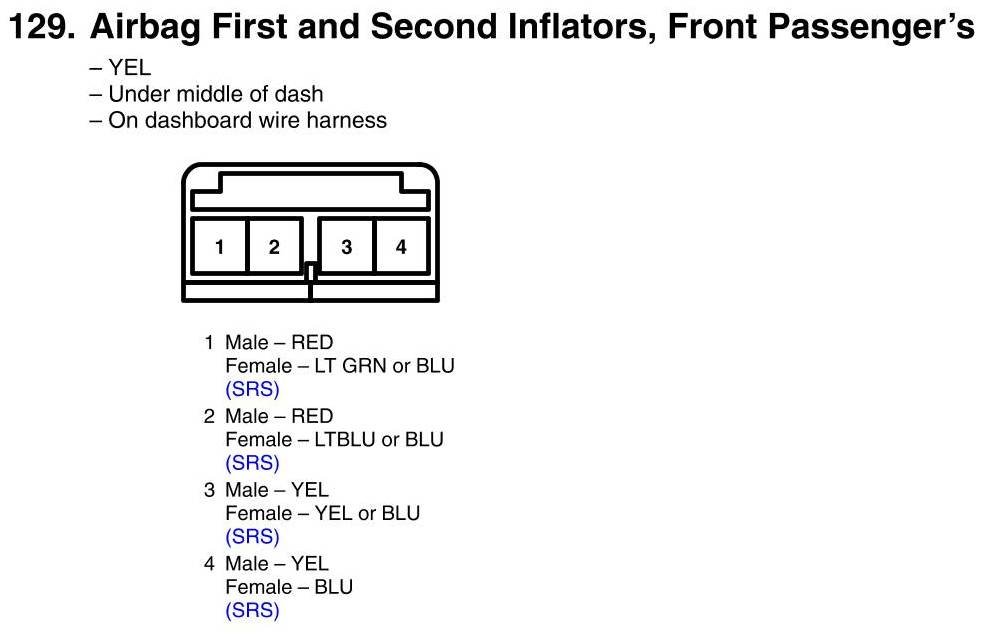

View 129 - Airbag First And Second Inflators, Front Passenger's Connector View
View 129 - Airbag First And Second Inflators, Front Passenger's Connector View
