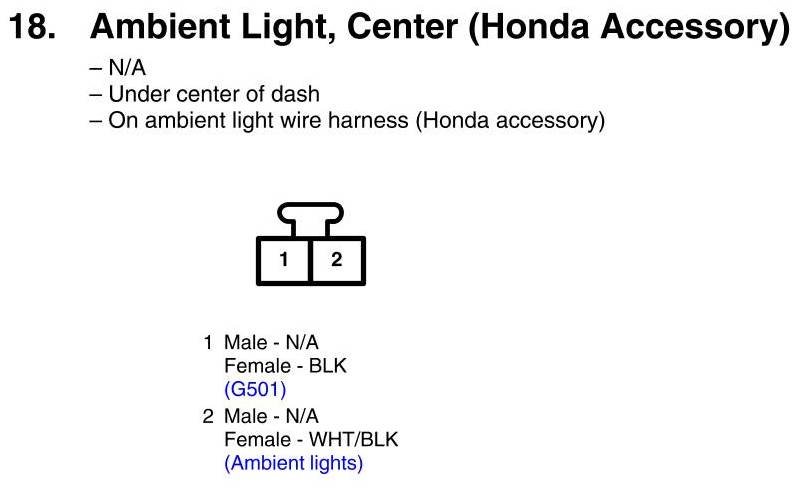

View 18 - Ambient Light, Center Connector View (Honda Accessory)
View 18 - Ambient Light, Center Connector View (Honda Accessory)
