Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Remove the right front inner fender Front Inner Fender Replacement.

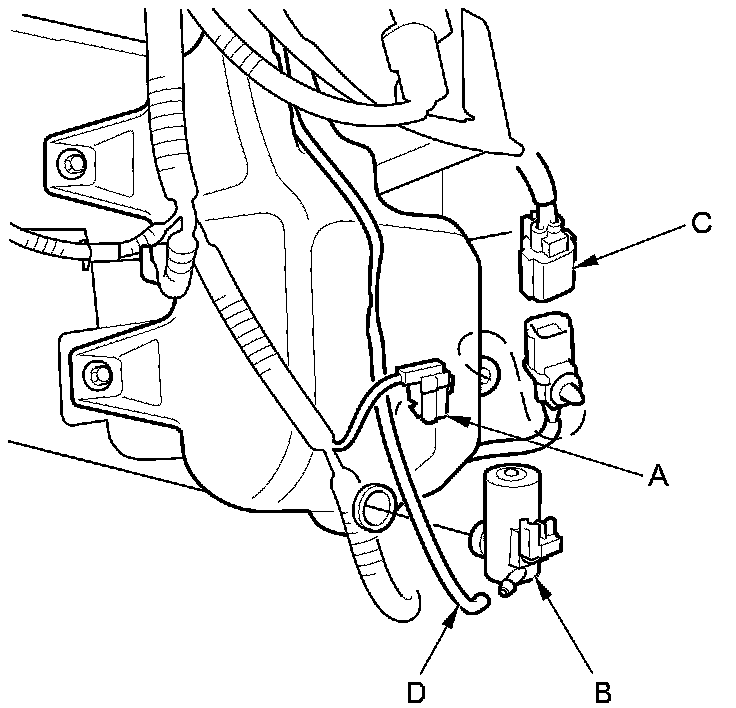

2. Disconnect the 2P connector(s) (A) from the windshield washer motor (B) and the washer fluid level switch (C)*.









3. Disconnect the windshield washer tube (D), then if necessary, remove the windshield washer motor and the washer fluid level switch*.

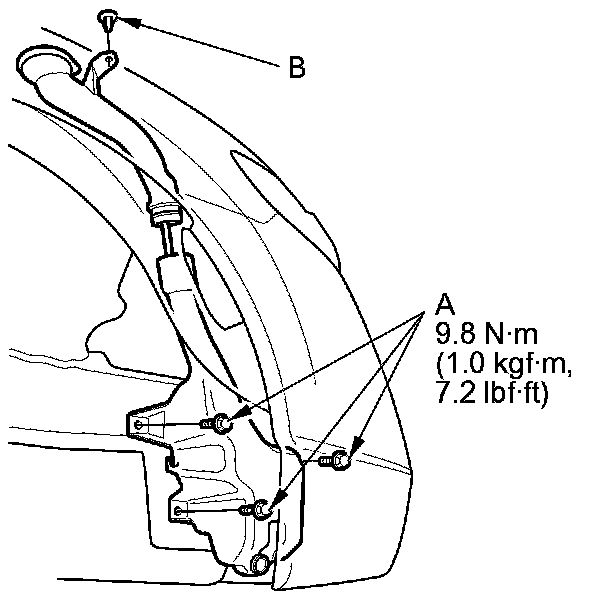

4. Remove the bolts (A) and the clip (B), then remove the washer reservoir.









5. Install the washer reservoir in the reverse order of removal.
