Brake Pedal Cover Replacement

Brake Pedal Cover Replacement

NOTE: This procedure shows a model equipped with a metal brake pedal cover.

1. Cover the carpet under the brake pedal to prevent metal shavings from getting on the carpet.

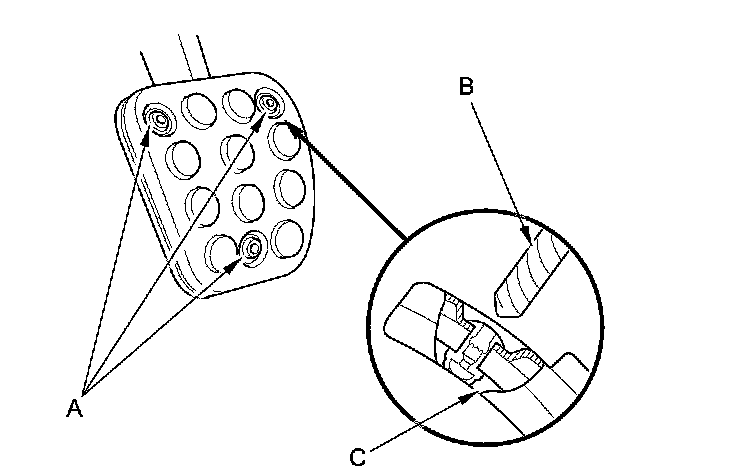

2. Center-punch each of rivets (A), and drill their heads off with a 3 mm (0.12 in) drill bit (B).

NOTE: Do not drill the pedal pad (C).

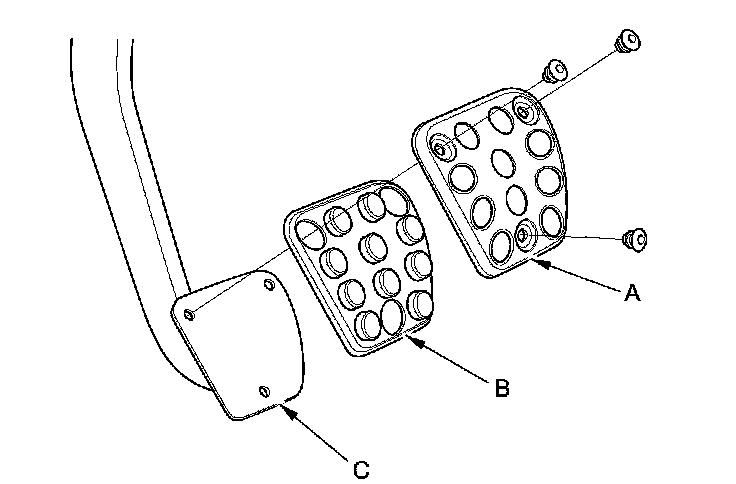

3. Remove the pedal plate (A) and the pedal cover (B) from the pedal pad (C).






4. Set the pedal cover to the pedal plate.

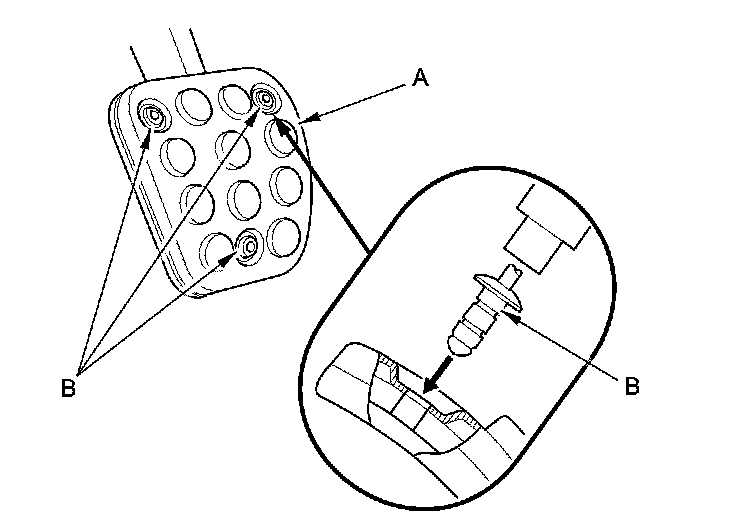

5. Install the pedal plate (A) with the rivets (B) firmly.





6. Make sure the pedal cover and plate is securely fastened on the brake pedal.

7. Check the brake pedal height.
