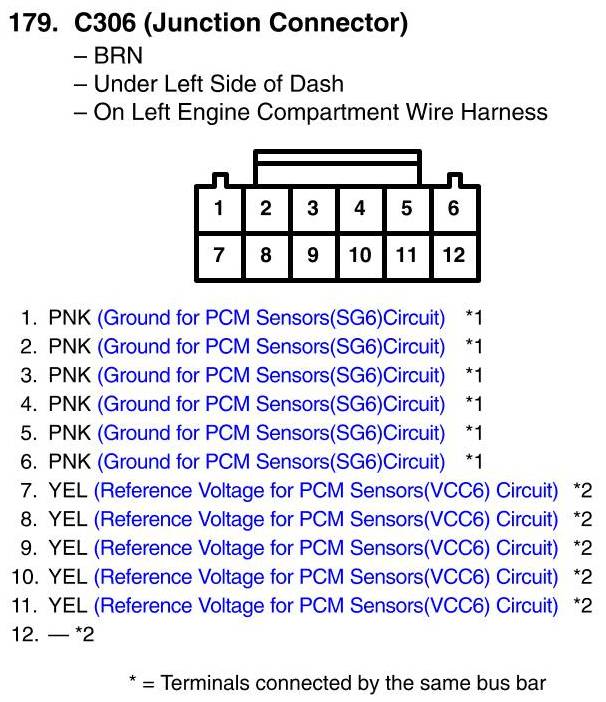

View 179 - C306 (Junction Connector) Connector View
View 179 - C306 (Junction Connector) Connector View
