Rear Fender Liner: Service and Repair

Rear Inner Fender Replacement

NOTE:

- Take care not to scratch the rear bumper or the body.
- The left side is shown; the right side is similar.

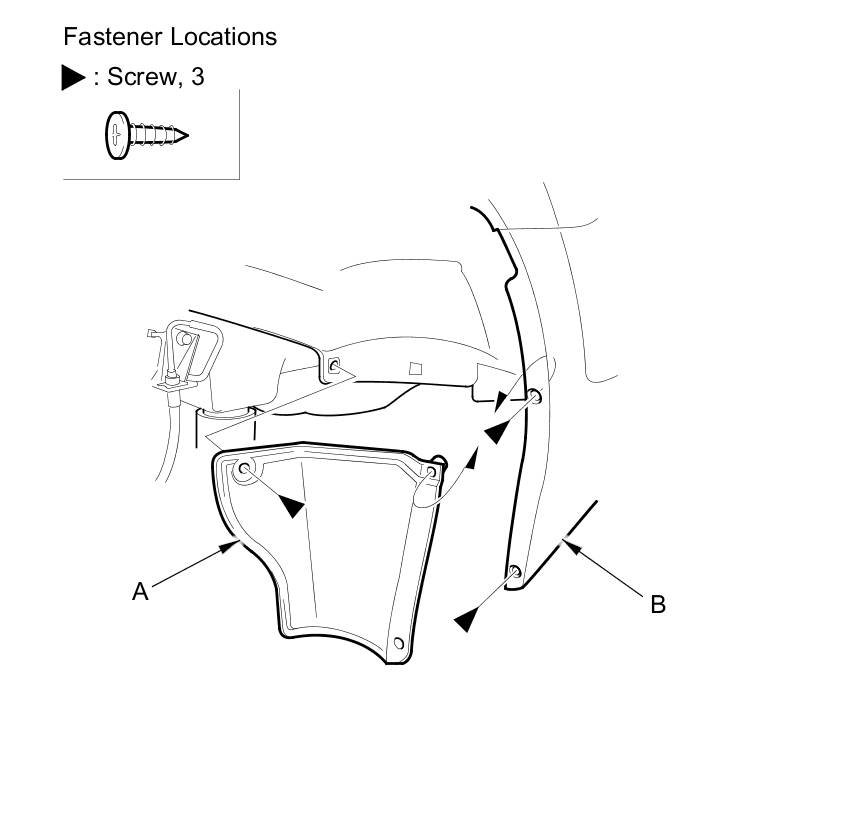

1. Remove the screws, then remove the rear inner fender (A) from the rear bumper (B) and the body.





2. Install the inner fender in the reverse order of removal.
