Auxiliary Jack Assembly Replacement

Auxiliary Jack Assembly Replacement

With navigation

1. Remove the dashboard center lower cover Dashboard Center Lower Cover Removal / Installation.

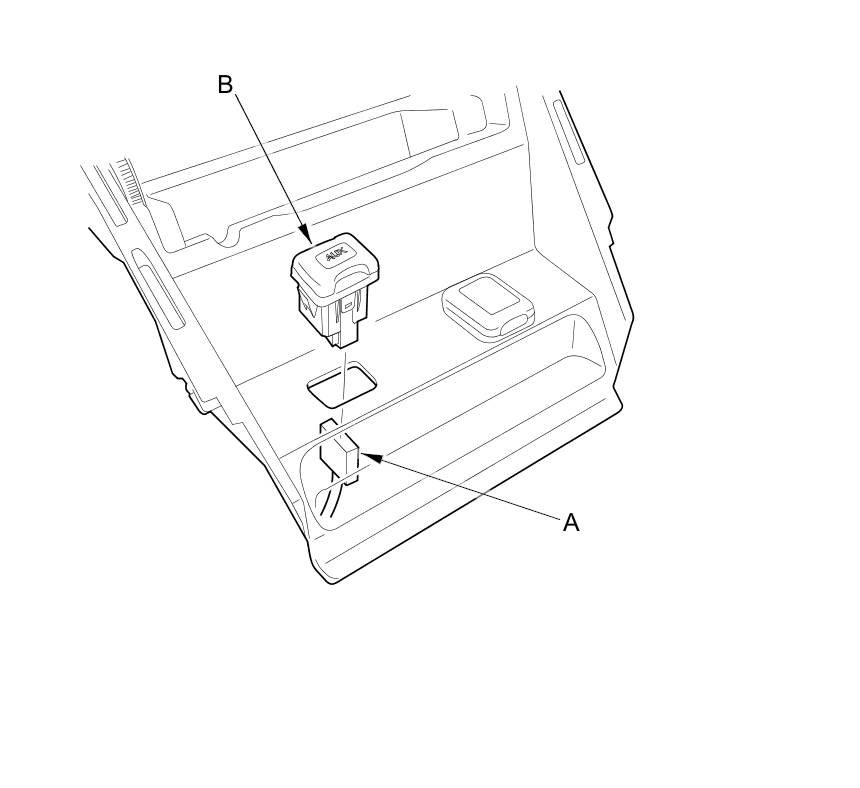

2. Remove the 5P connector (A) from the auxiliary jack assembly (B).






3. Push out the auxiliary jack assembly from the dashboard center lower cover.

4. Install the auxiliary jack assembly in the reverse order of removal.
