Dashboard Vent Removal/Installation

Dashboard Vent Removal/Installation

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Driver's outside vent is shown; driver's inside vent is similar.

1. Remove the instrument panel Instrument Panel Removal / Installation.

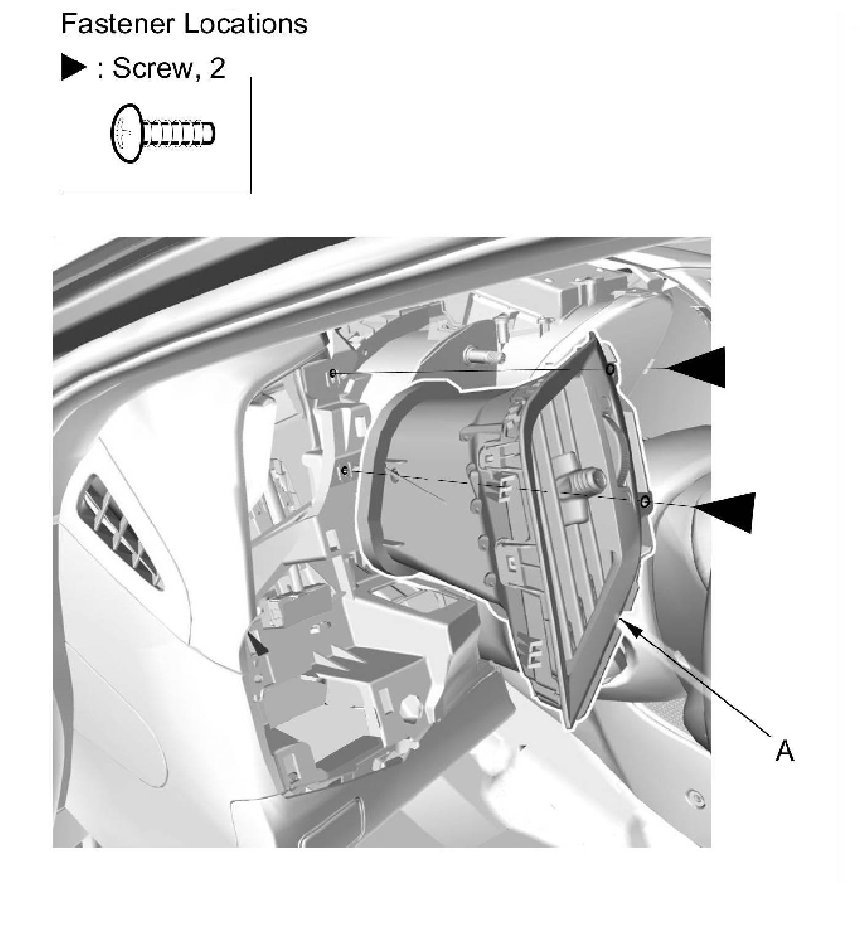

2. Remove the screws, then pull out on the dashboard vent (A).






3. Install the dashboard vent in the reverse order of removal.
