Evaporative Emission Control Canister: Service and Repair

EVAP Canister Replacement

1. Raise the vehicle on a lift Service and Repair.

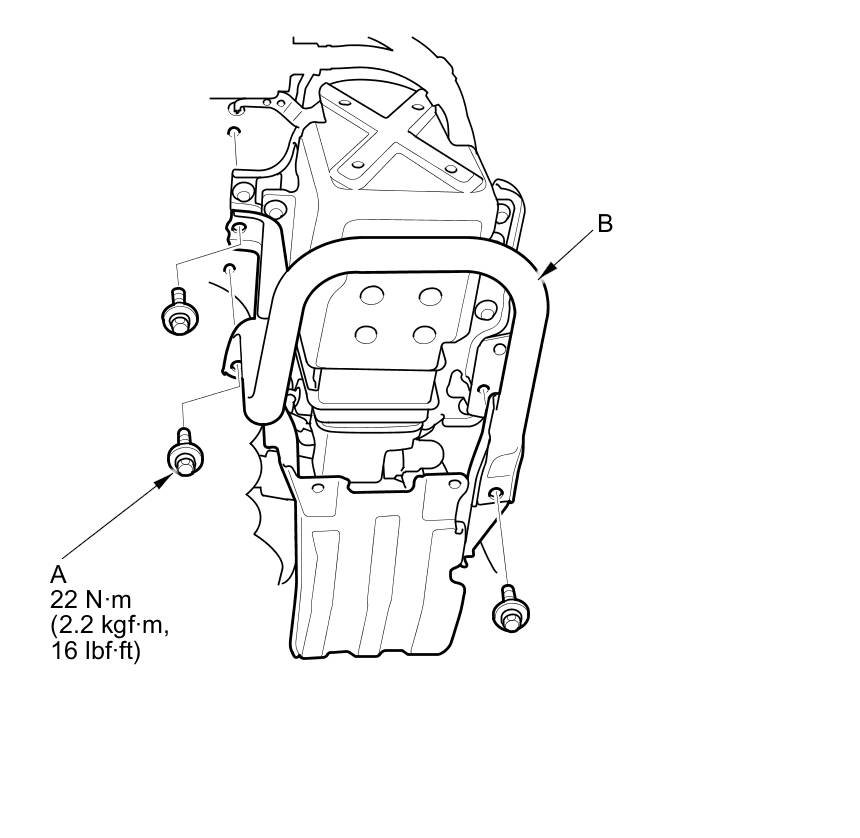

2. Remove the bolts (A), then remove the EVAP canister guard (B).

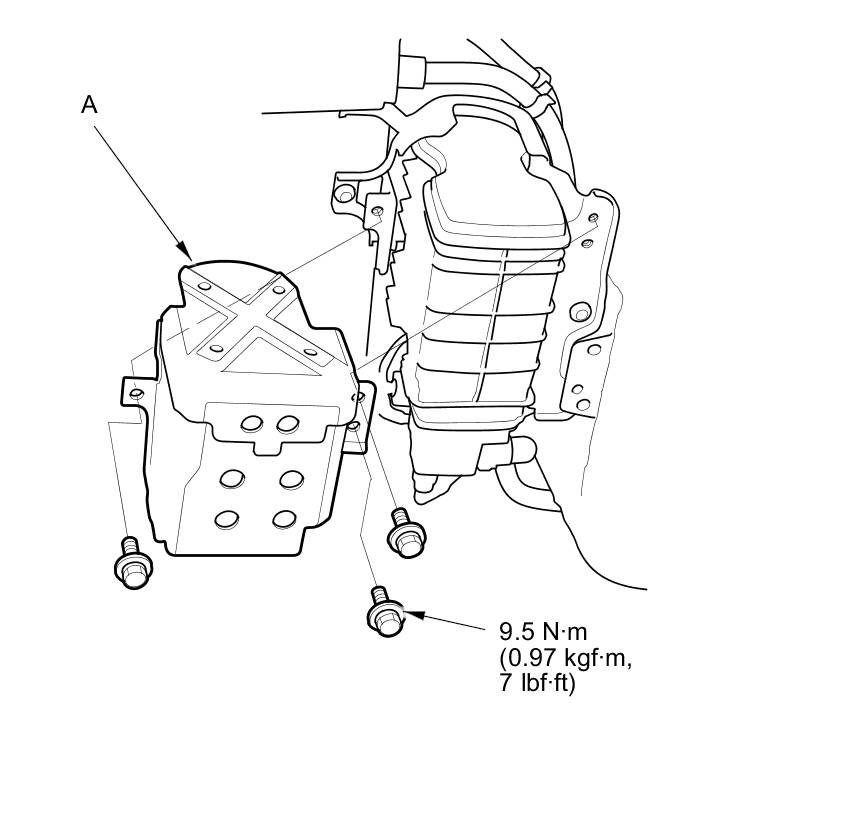

3. Remove the EVAP canister cover (A).

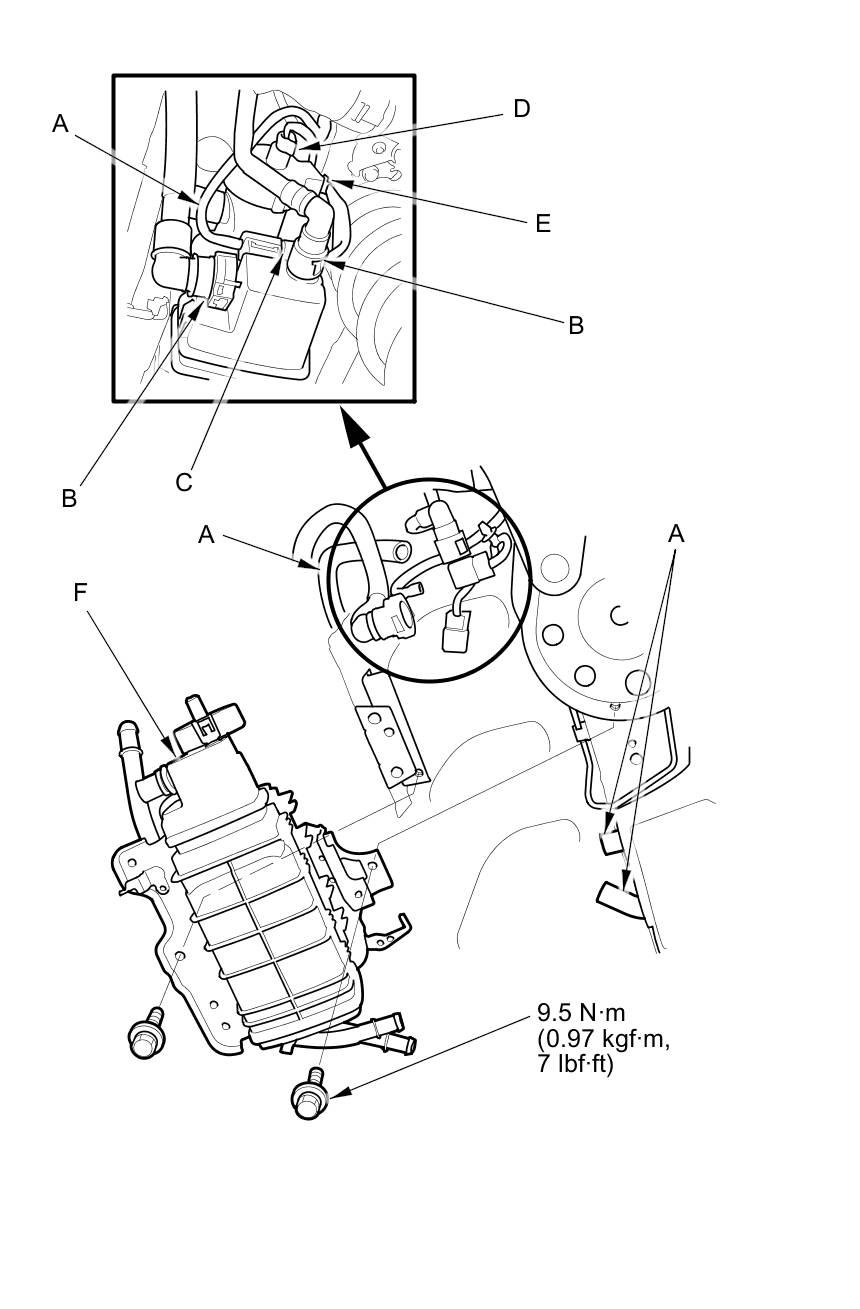

4. Disconnect the hoses (A).






5. Disconnect the quick-connect fittings (B) from the EVAP canister Fuel Line/Quick-Connect Fitting Removal.

6. Disconnect the FTP sensor 3P connector (C) and the EVAP canister vent shut valve 2P connector (D), then remove the harness clip (E).

7. Remove the bolts, then remove the EVAP canister assembly (F).

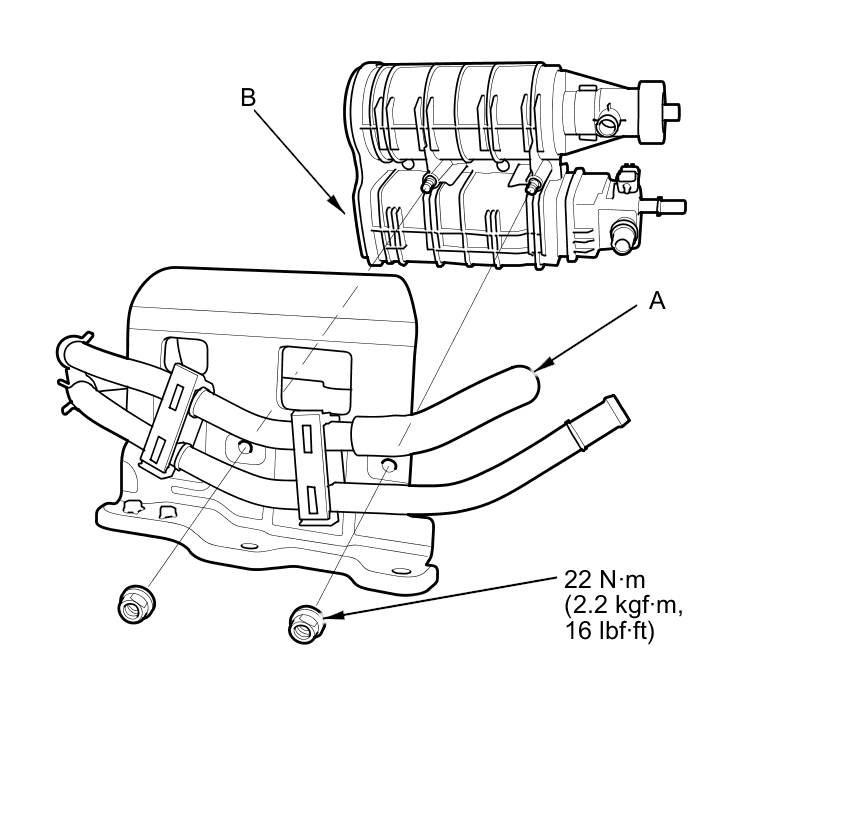

8. Disconnect the drain tube (A), then remove the EVAP canister (B) from the EVAP canister bracket.






9. Remove the FTP sensor Service and Repair.

10. Remove the EVAP canister vent shut valve Service and Repair.

11. Install the parts in the reverse order of removal.
