EGR Tube: Service and Repair

Service Information

EGR Pipe Removal and Installation

Removal

1. EGR Pipe

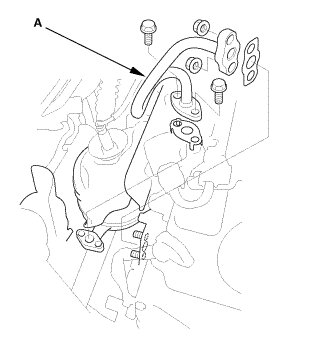

1. Remove the EGR pipe (A).

Installation

1. EGR Pipe

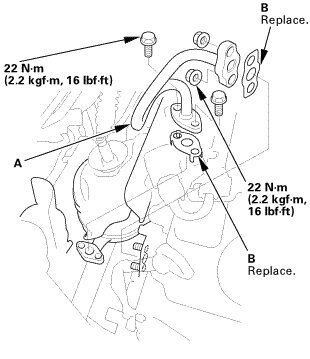

1. Install the EGR pipe (A) with new gaskets (B).
