Passengers Outer Vent Removal and Installation

Passenger's Outer Vent Removal and Installation

Removal

1. Front Door Opening Seal As Needed - Passenger's Side

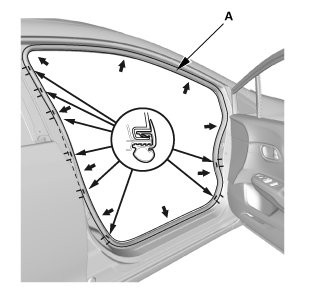

1. Remove the front door opening seal (A) as needed.

2. Dashboard Side Cover - Passenger's Side

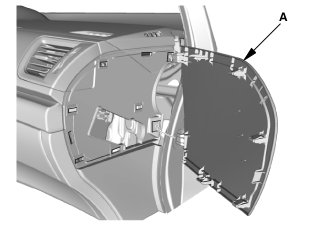

1. Remove the dashboard side cover (A).

3. Passenger's Outer Vent

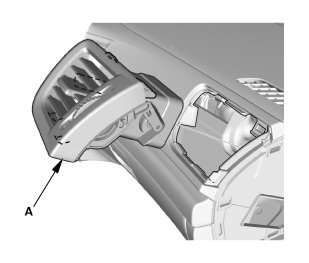

1. Remove the passenger's outer vent (A).

Installation

1. Passenger's Outer Vent





1. Install the passenger's outer vent (A).

2. Dashboard Side Cover - Passenger's Side





1. Install the dashboard side cover (A).

3. Front Door Opening Seal As Needed - Passenger's Side





1. Install the front door opening seal (A).
