Dashboard Wire Harness

Connector and Harness Locations

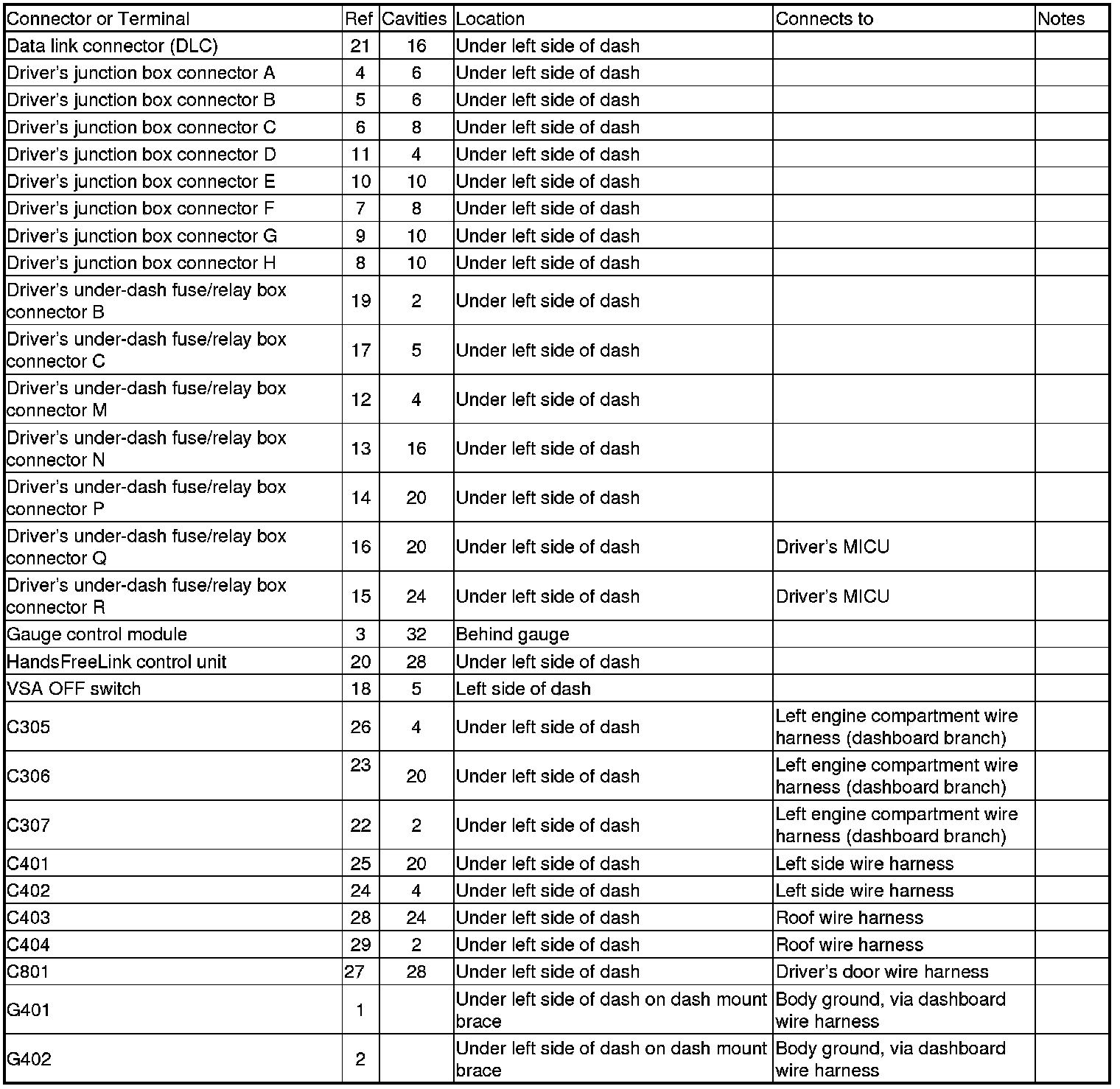

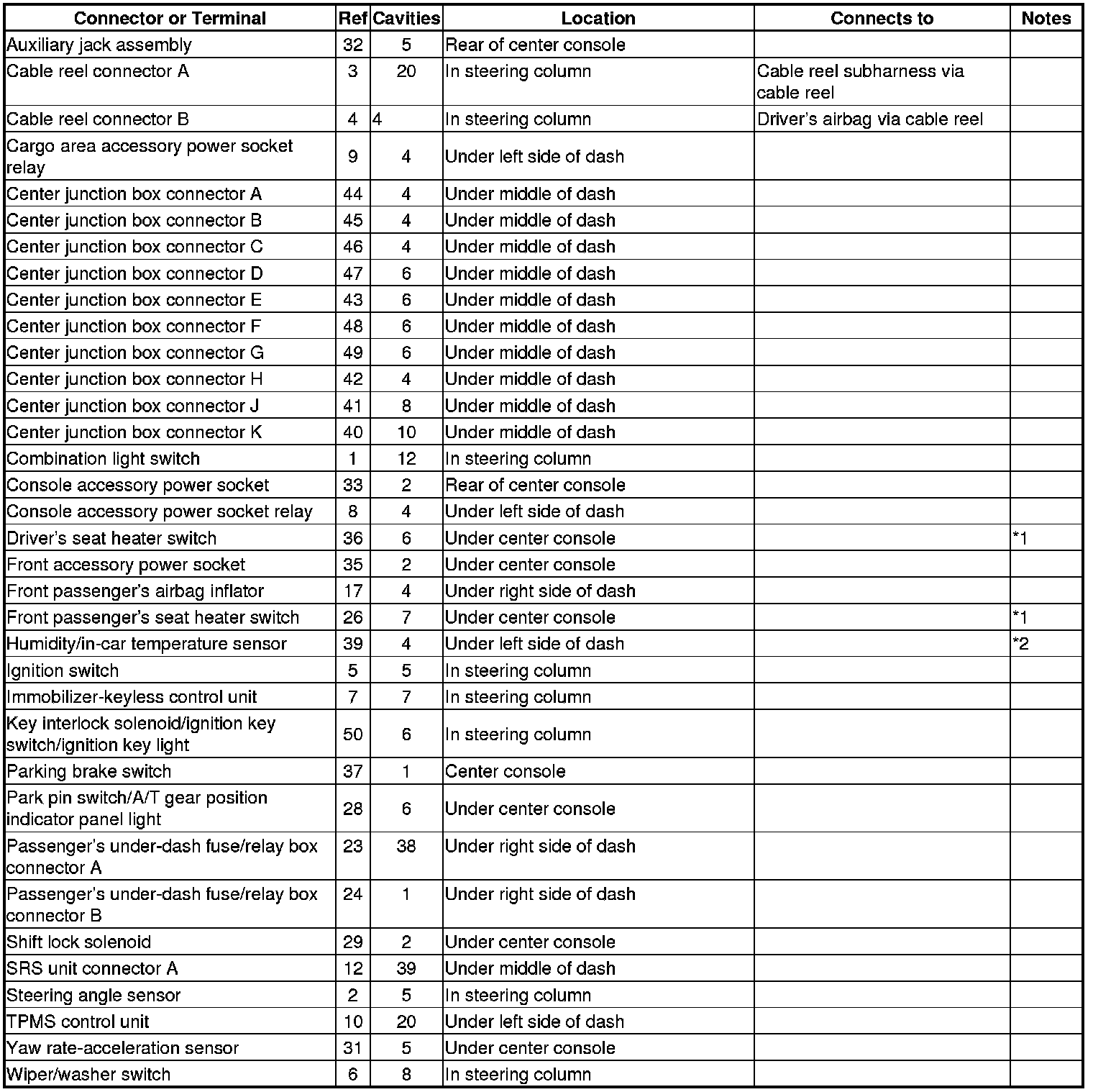

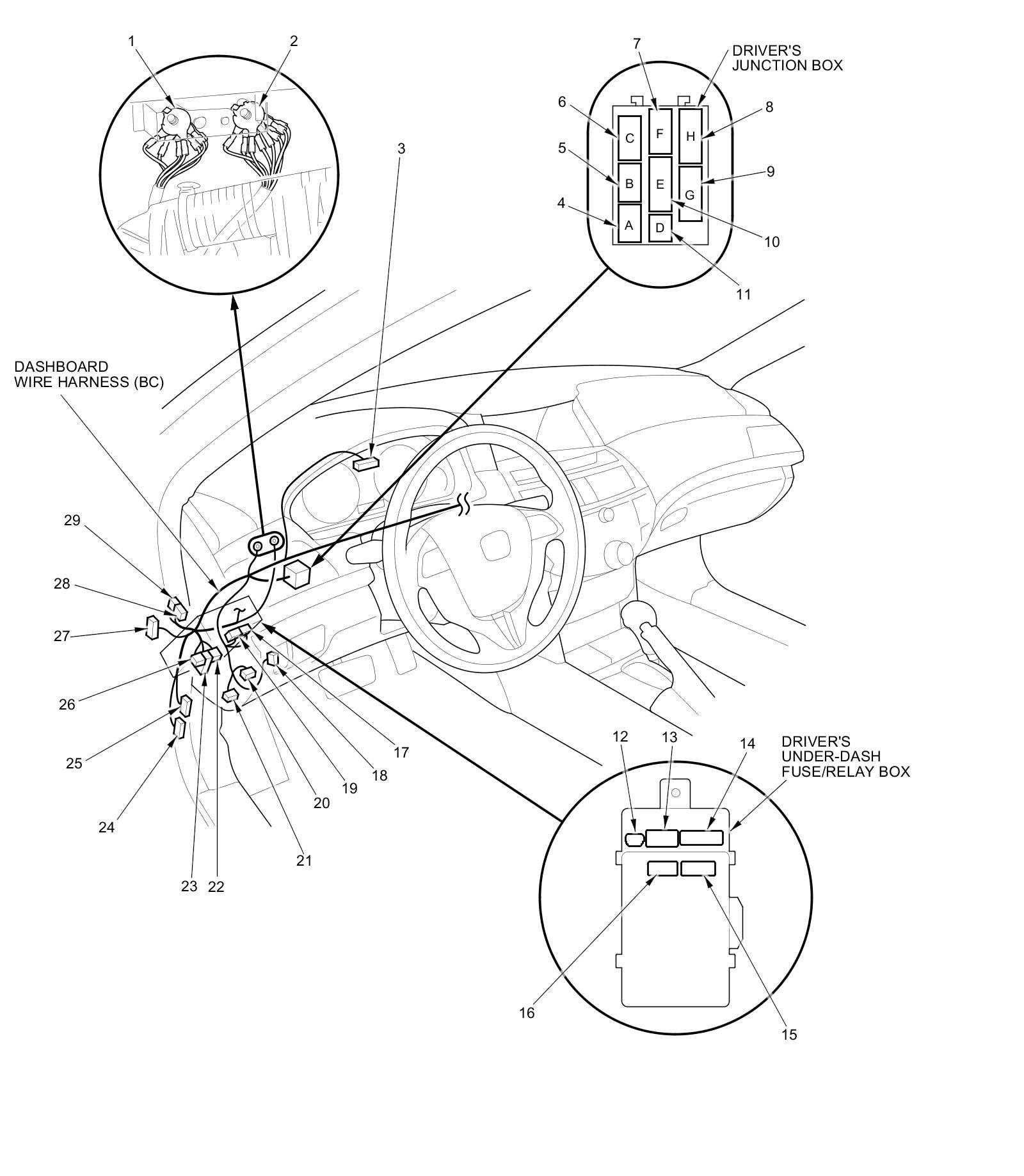

Dashboard Wire Harness (View of Driver's Side) (BC)

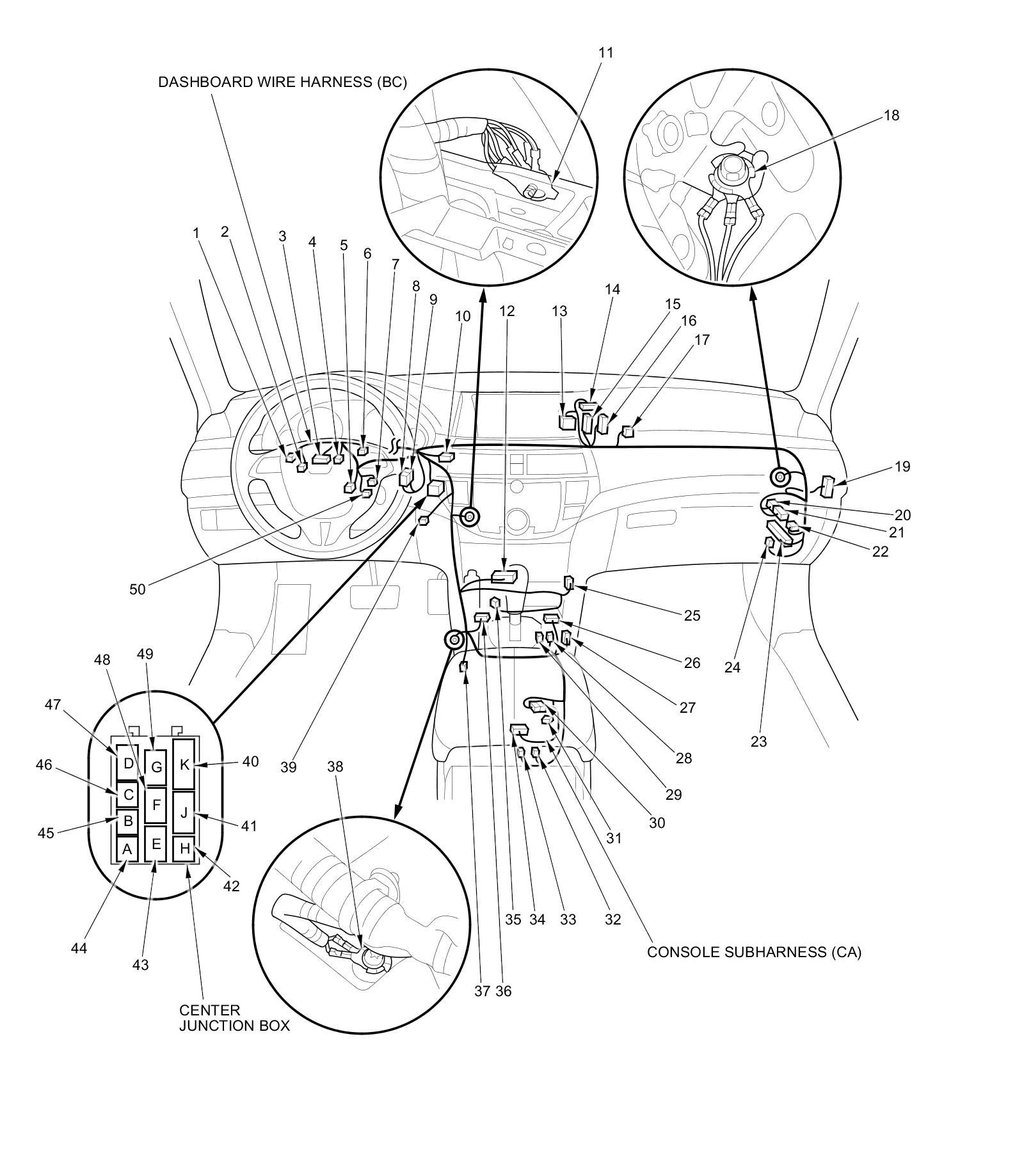

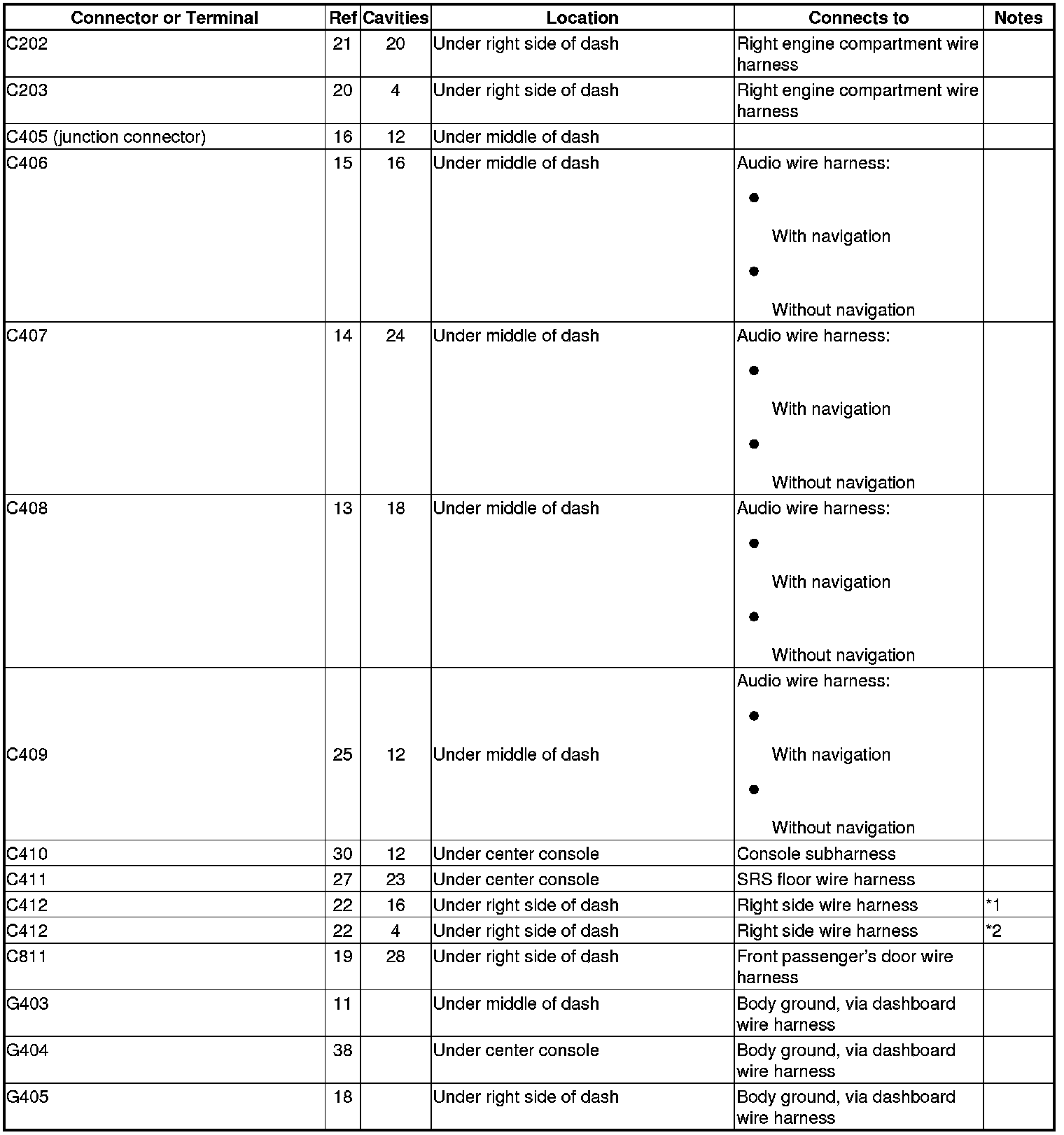

Dashboard Wire Harness (View of Middle to Passenger's Side) (BC)

Dashboard Wire Harness (View of Middle to Passenger's Side) (BC) (cont'd)
