Air Outlet Duct Replacement - Floor, RH

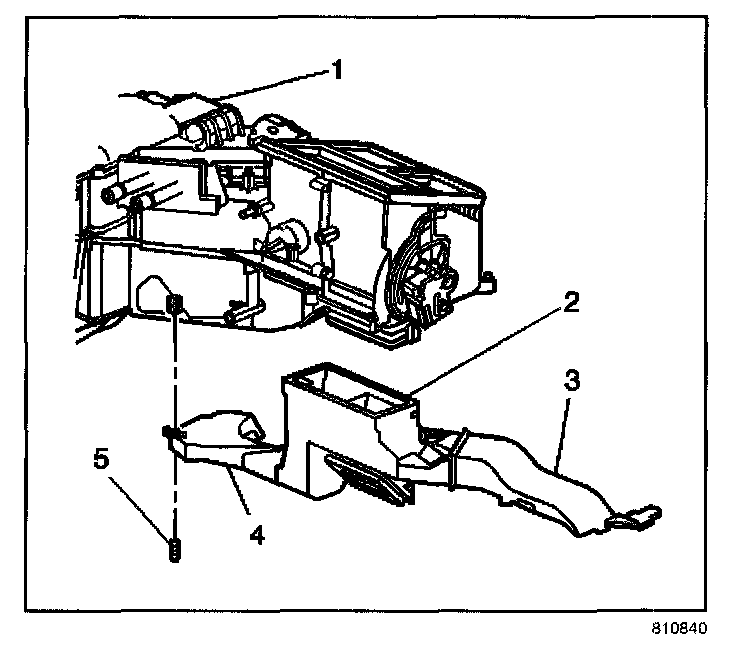

AIR OUTLET DUCT REPLACEMENT - FLOOR, RHREMOVAL PROCEDURE
1. Remove the right IP insulator panel.
2. Remove the screw (5) from the right floor air outlet duct (4).
3. Remove the right floor air outlet duct (4) from the HVAC module assembly (2).

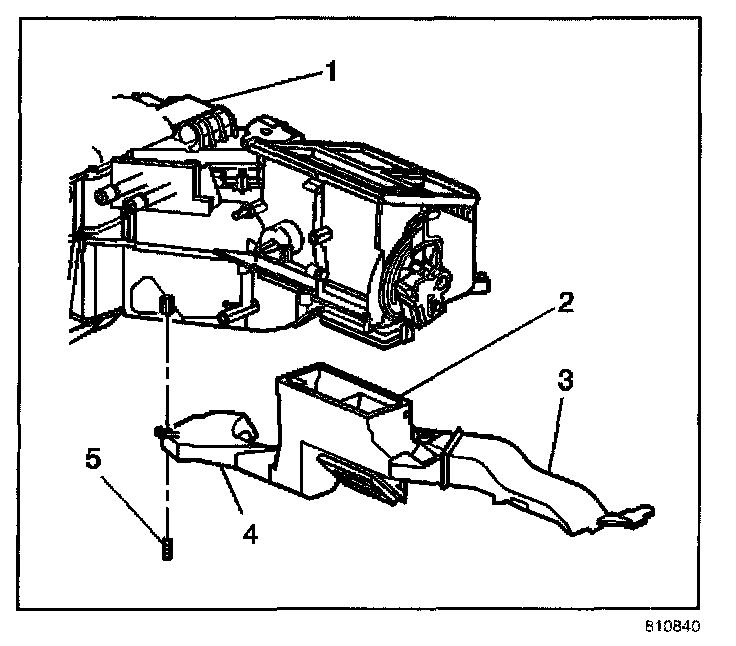

INSTALLATION PROCEDURE
1. Install the right floor air outlet duct (4) to the HVAC module assembly (2).
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the screw (5) to the right floor air outlet duct (4).
Tighten
Tighten the screw to 1.6 N.m (14 lb in).
3. Install the right IP insulator panel.
