Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Marker Lamp >> Roof Marker Lamp - Front

Roof Marker Lamp - Front

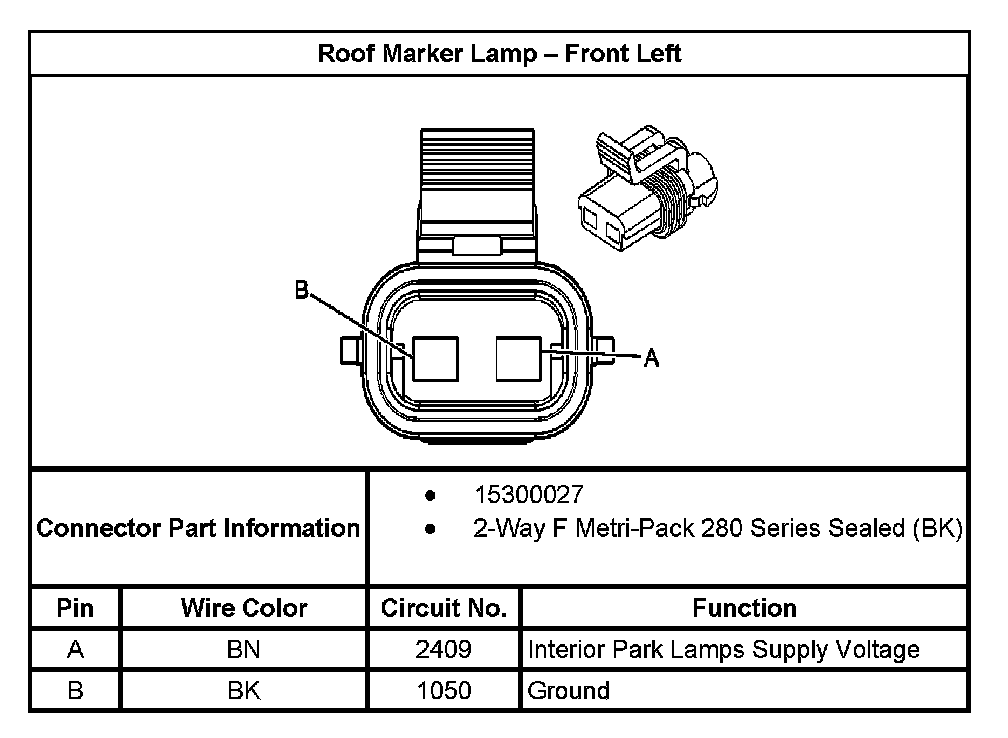

Roof Marker Lamp - Front Left:

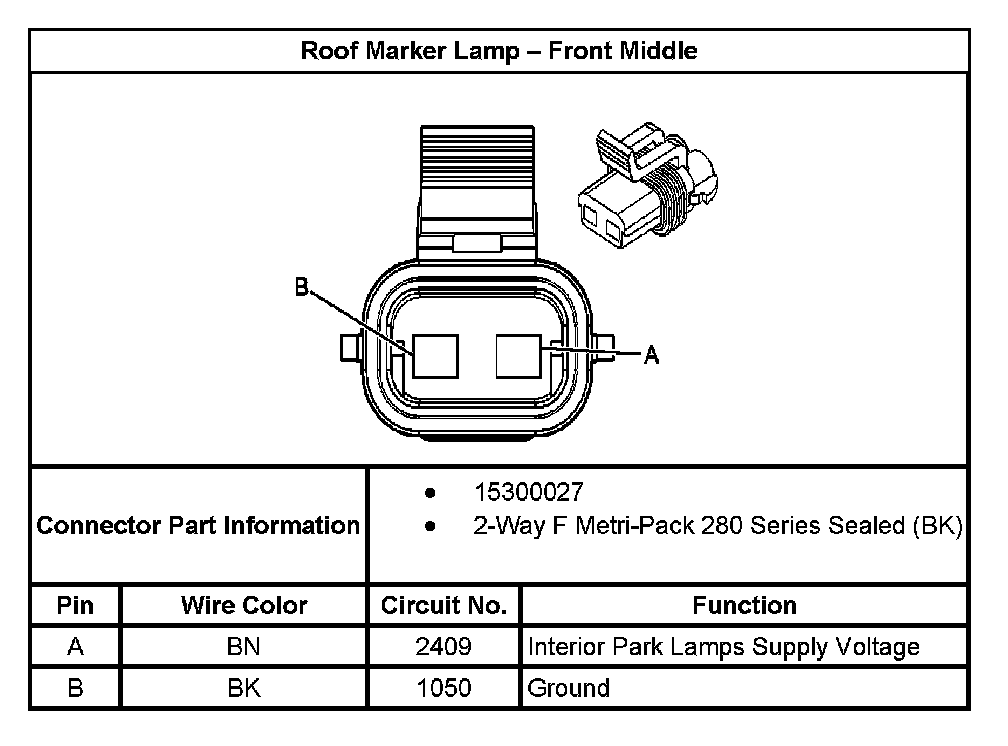

Roof Marker Lamp - Front Middle:



Roof Marker Lamp - Front Middle:
