Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Latch
>>
Service and Repair
>>

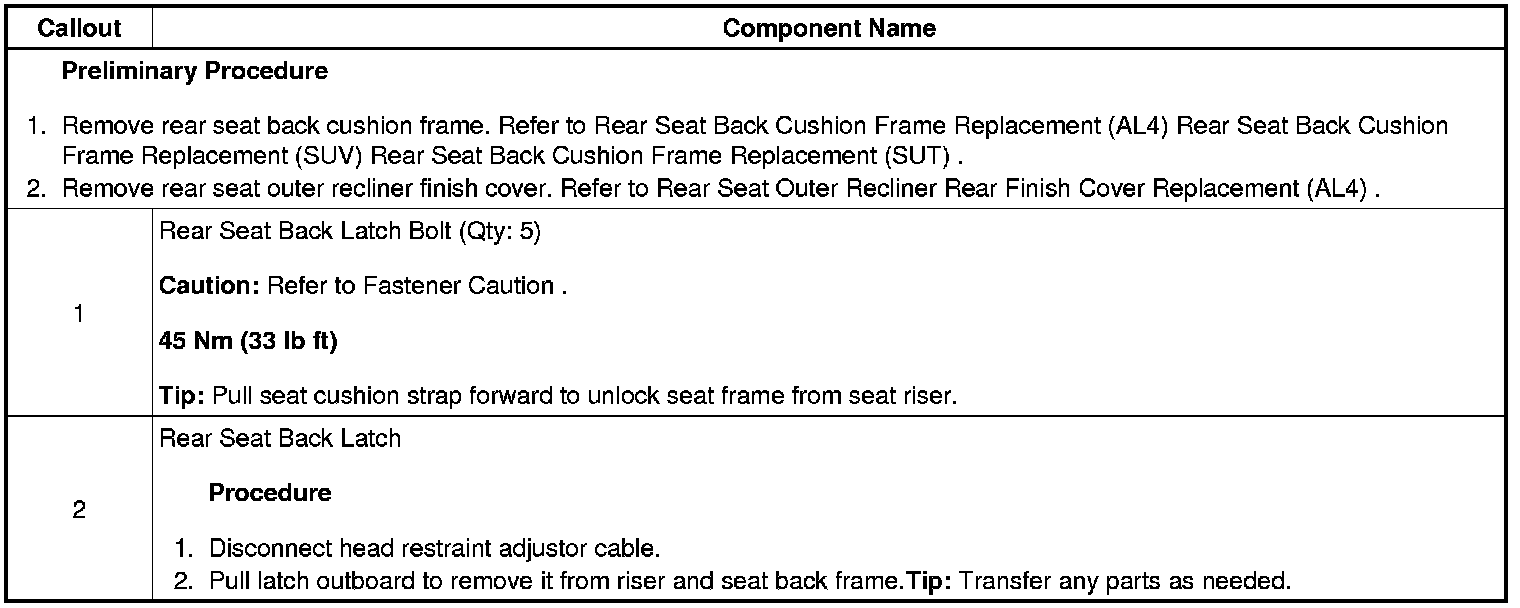

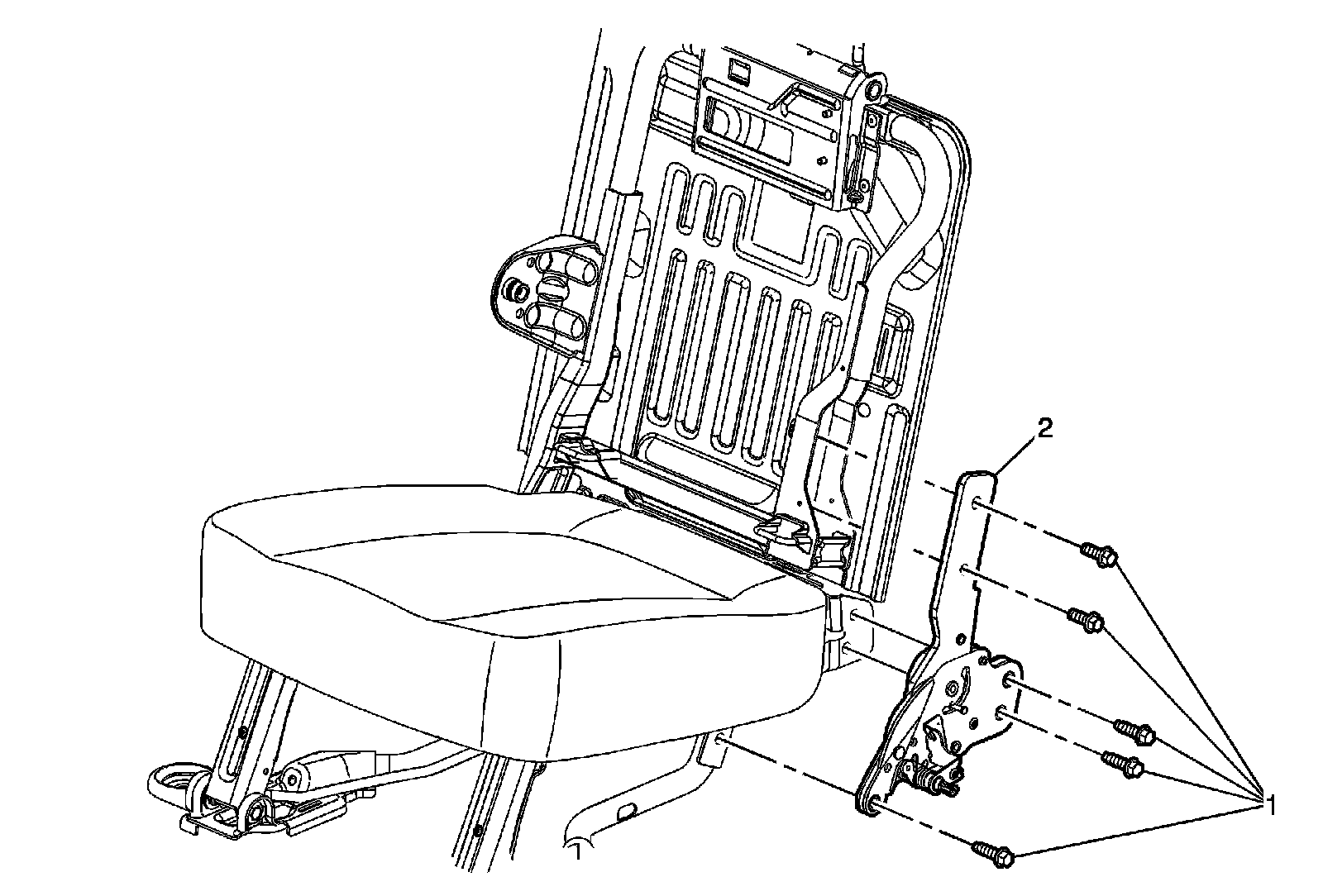

Rear Seat Back Latch Replacement (AL4)
Rear Seat Back Latch Replacement (AL4)
Rear
Seat Back
Latch Replacement (AL4)
