Hyundai Truck
>>
2001
>>
Santa Fe V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

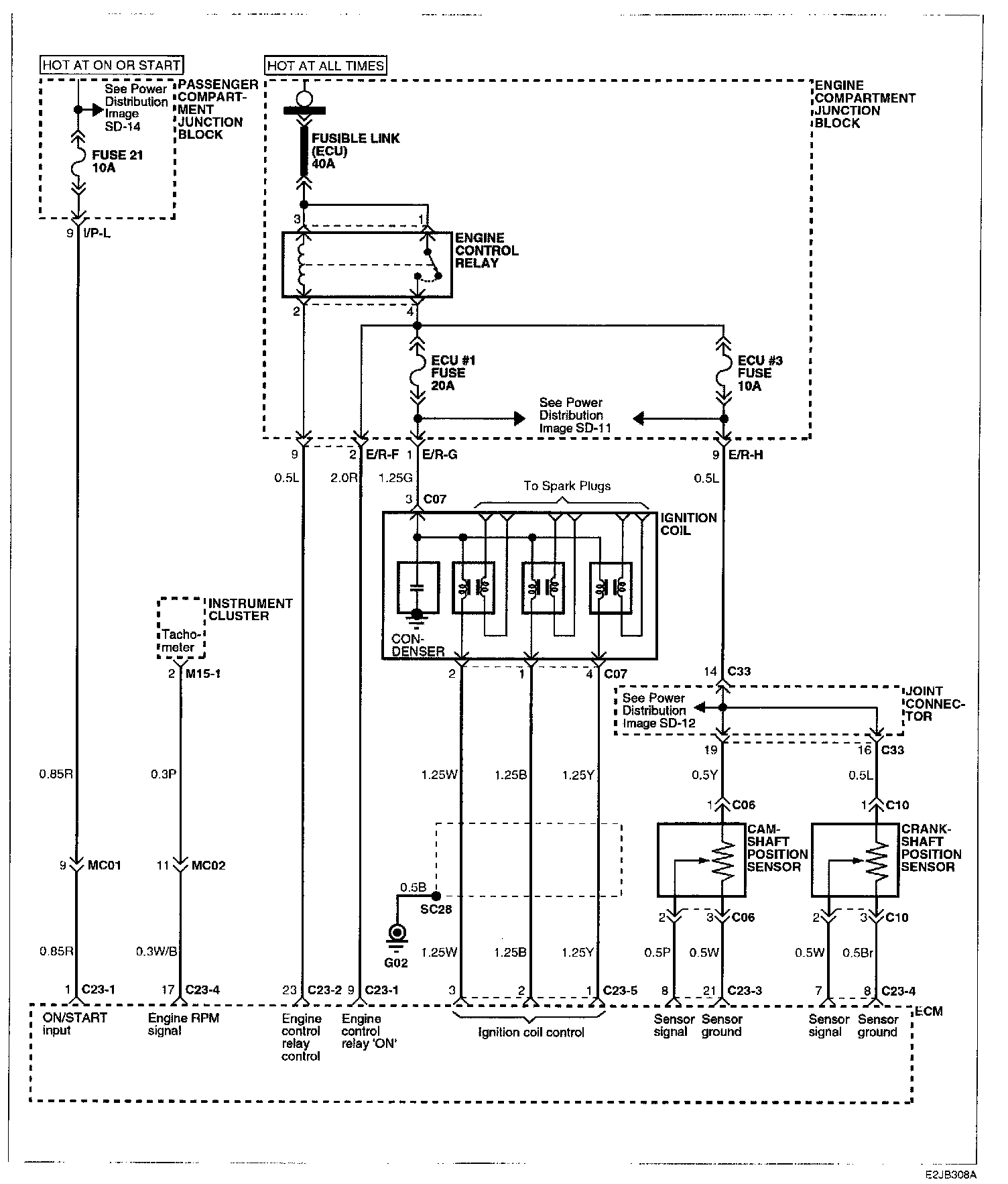

Image SD-58 - Ignition System (V6) (1):
