IAT Sensor - Resistance Correction
Group: ENGINE ELECTRICALNumber: 02-36-003
Date: FEBRUARY, 2002
Model: 2001-2002 SANTA FE V6
Subject:
2001-02 SANTA FE V6 INTAKE AIR TEMPERATURE (IAT) SENSOR RESISTANCE SHOP MANUAL CORRECTION
DESCRIPTION:
The 2001-2002 Santa Fe Shop Manuals contain incorrect information for the Intake Air Temperature (IAT) Sensor internal resistance for the V6 Engine.

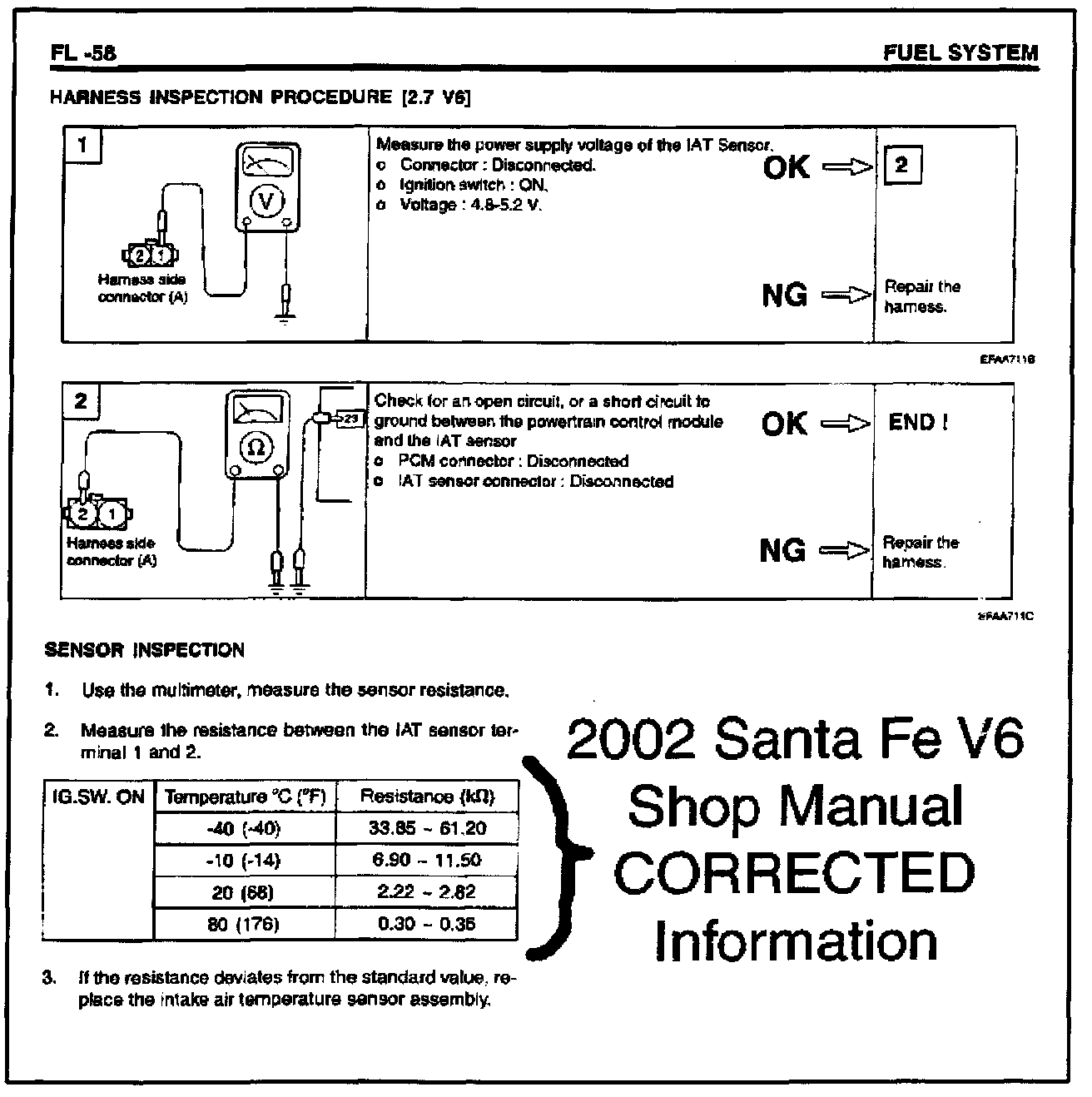

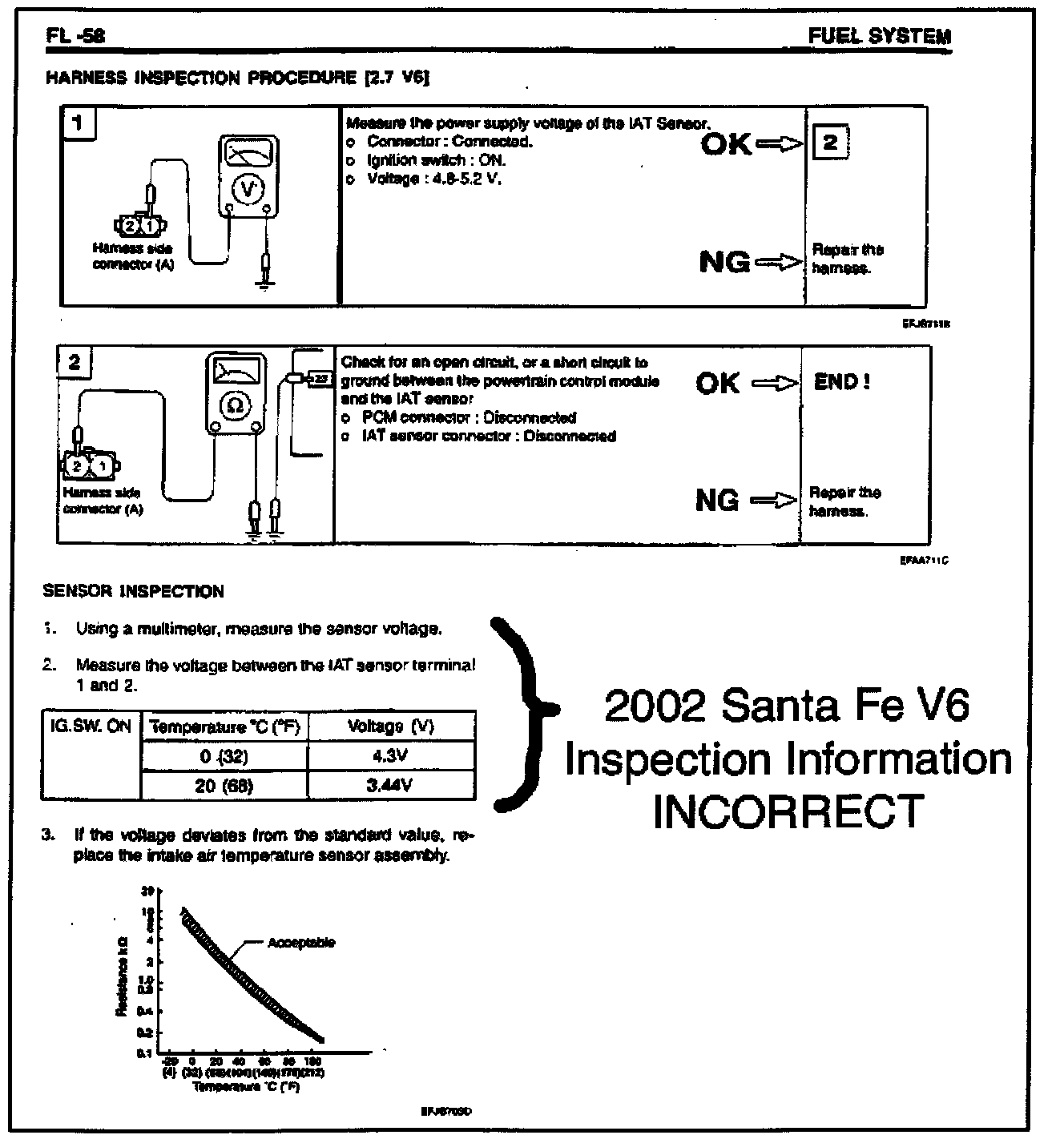

Please see the illustrations shown (example is 2002 Santa Fe Shop Manual). The illustrations apply to the 2001 Santa Fe as well.
For future reference, write this TSB number on the top of the pages in the table.
