Keyless Entry
Keyless Entry

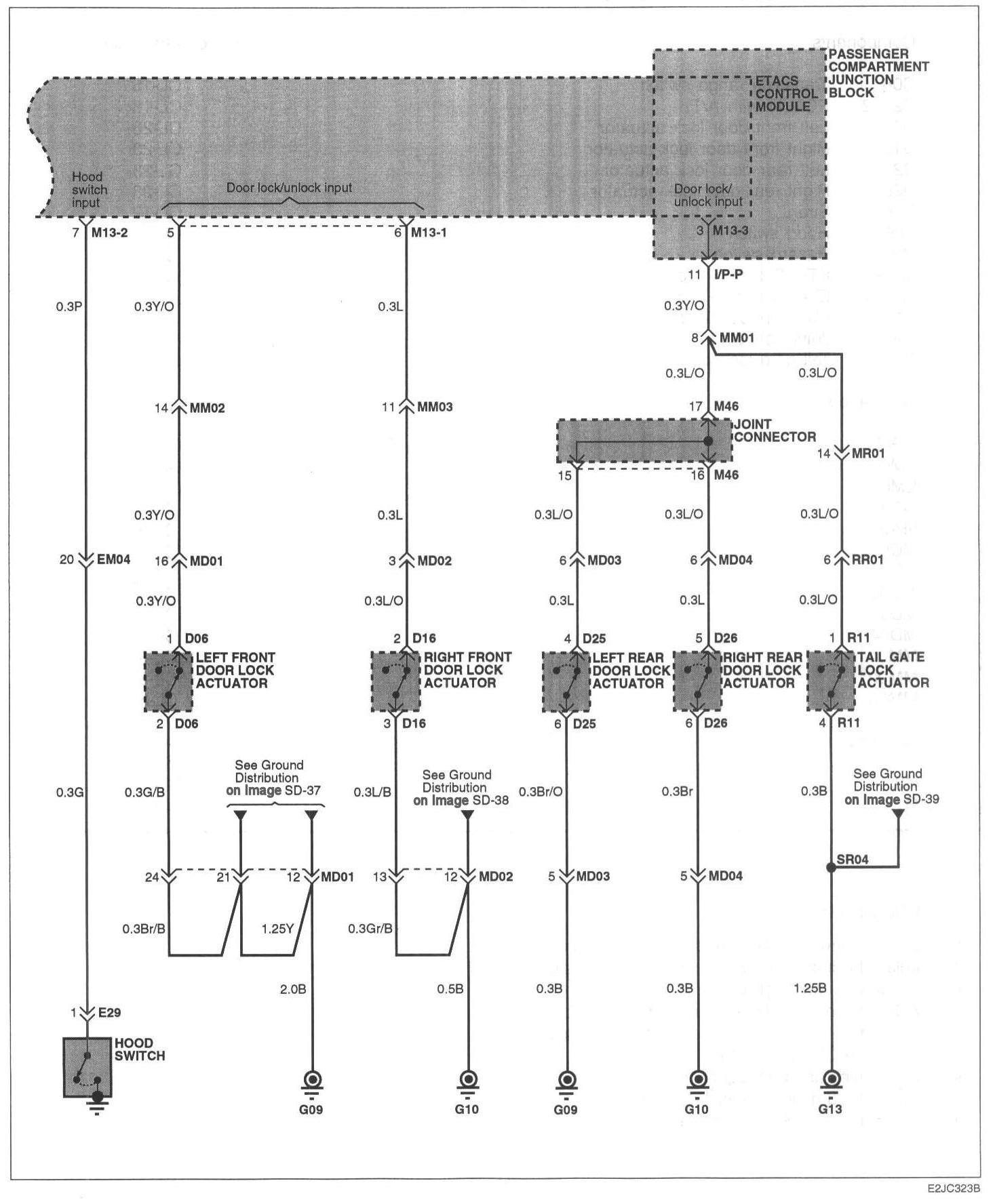

Image SD-114 Keyless Entry & Burglar Alarm System (1):

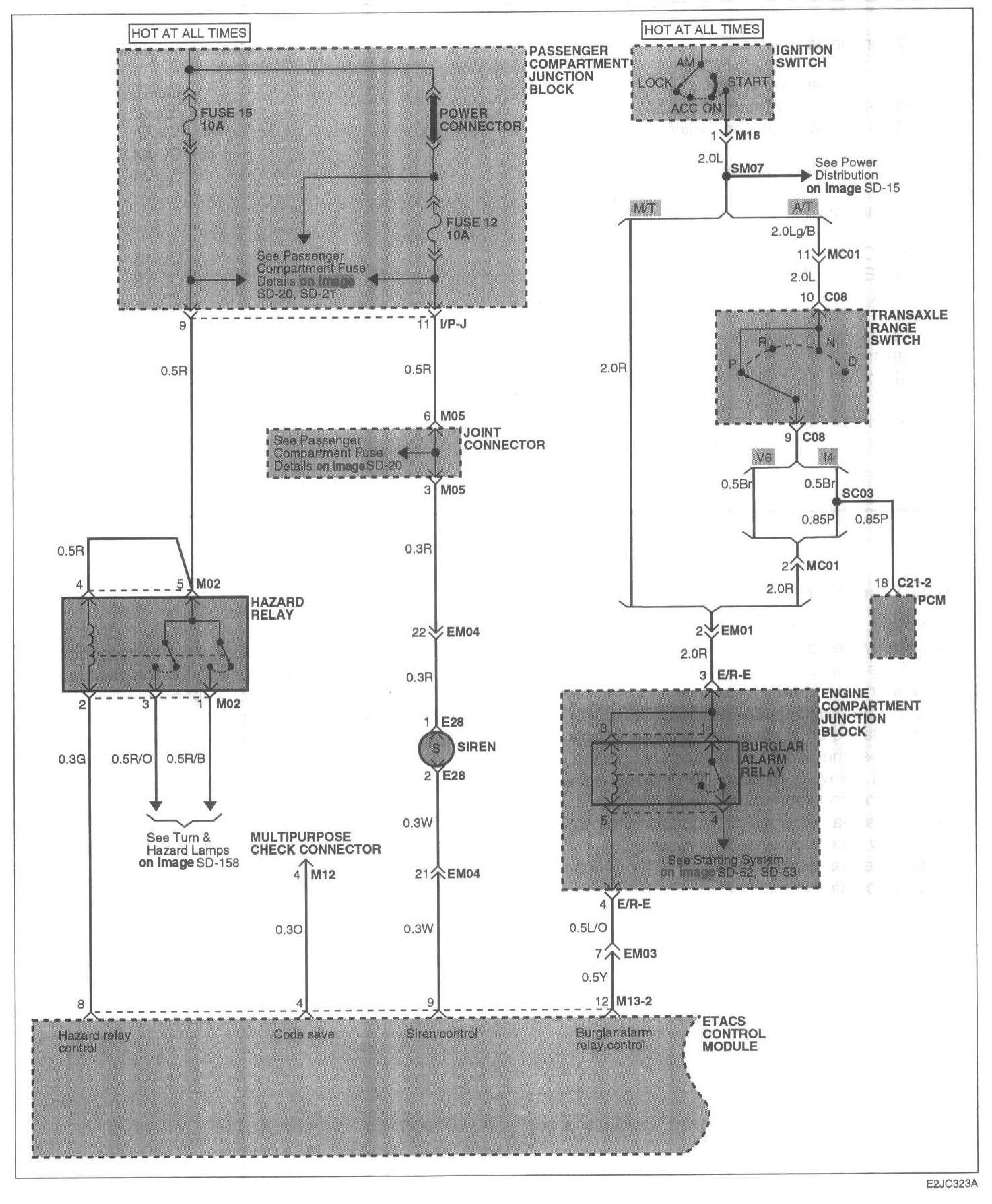

Image SD-115 Keyless Entry & Burglar Alarm System (2):
