Multiple Junction Connector: Locations

M04, M05, M06 Joint Connector, M03 Flasher Unit:

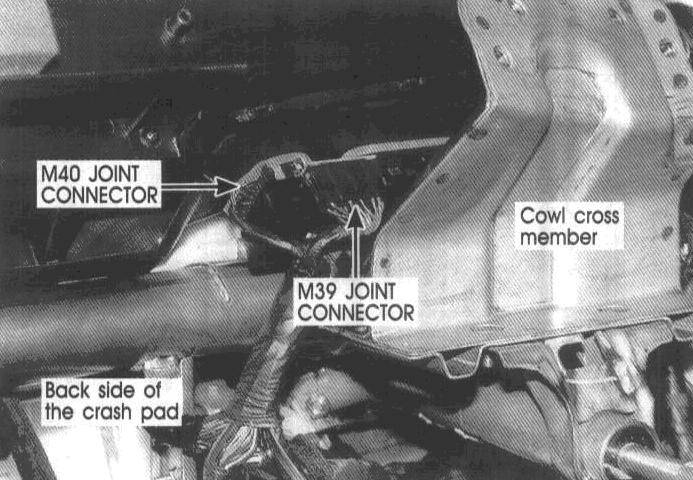

M39, M40 Joint Connector:

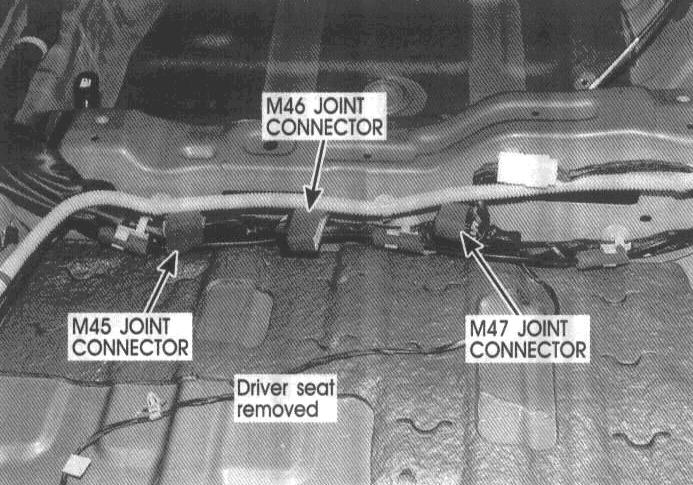

M45, M46, M47 Joint Connector:

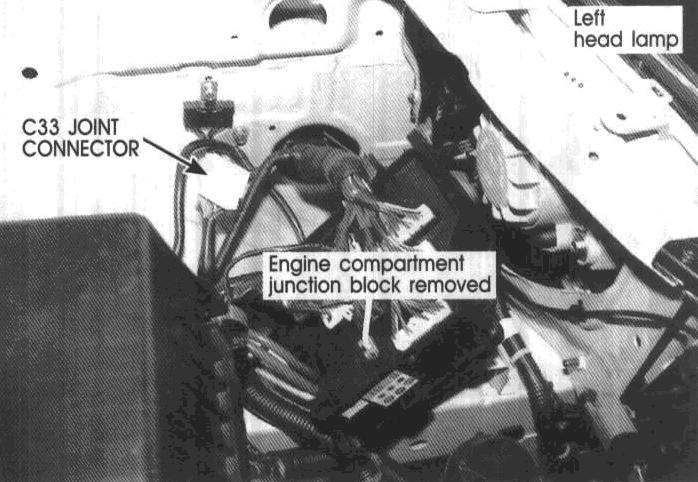

C33 Joint Connector:

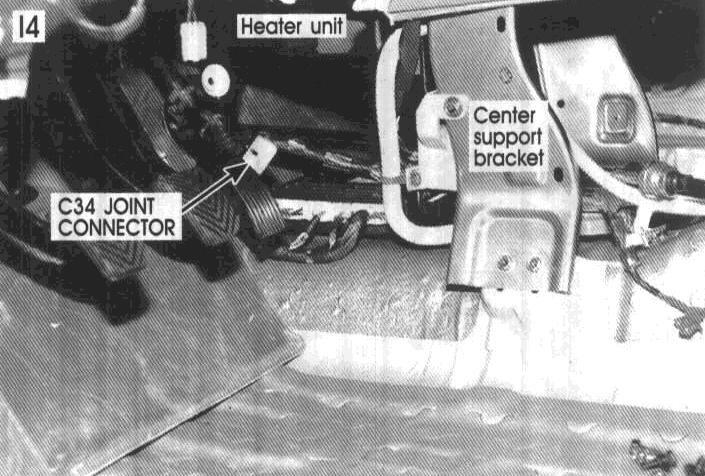

C34 Joint Connector:

C35 Joint Connector, C36 ATM Control Relay:
