Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai Truck
>>
2002
>>
Santa Fe L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

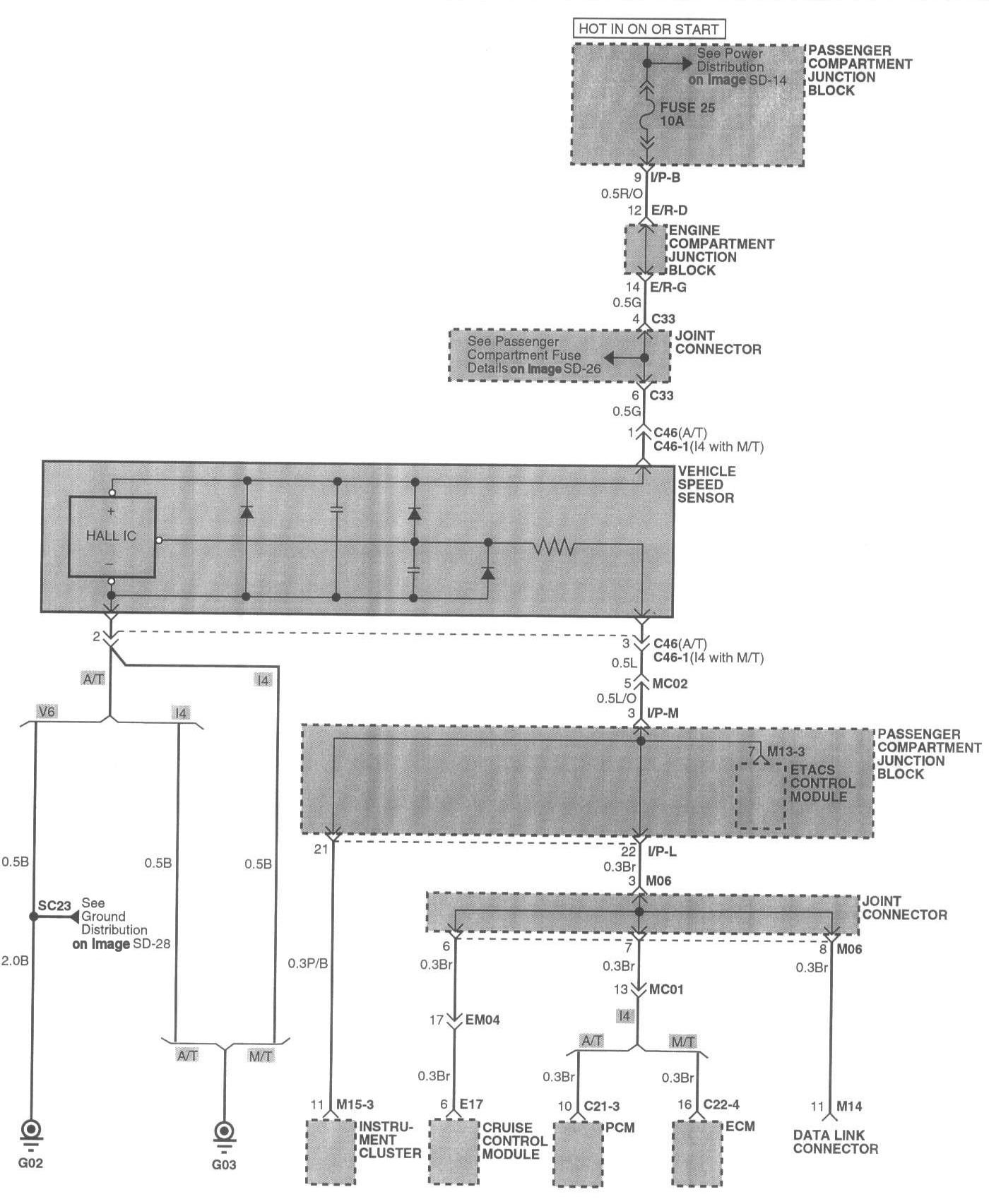

Image SD-44 Vehicle Speed Sensor (1):
