Hyundai Truck
>>
2003
>>
Santa Fe V6-2.7L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Air Bag Control Module
>>
Locations
>>
Connector Locations
Connector Locations

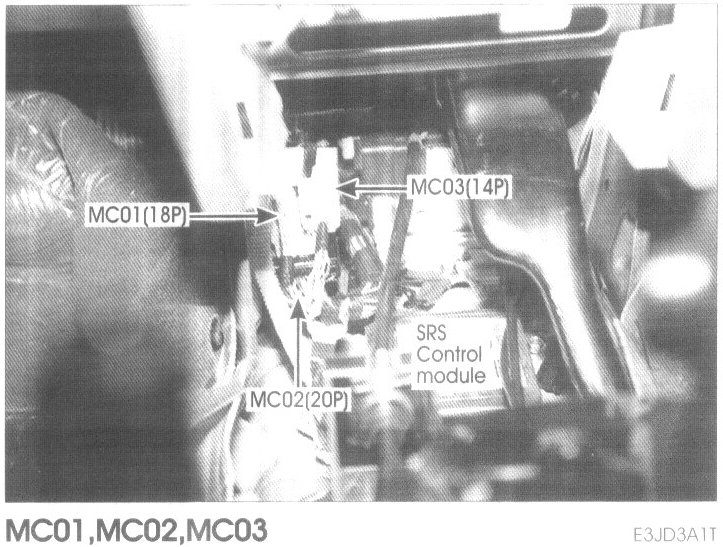

MC01, MC02, MC03:

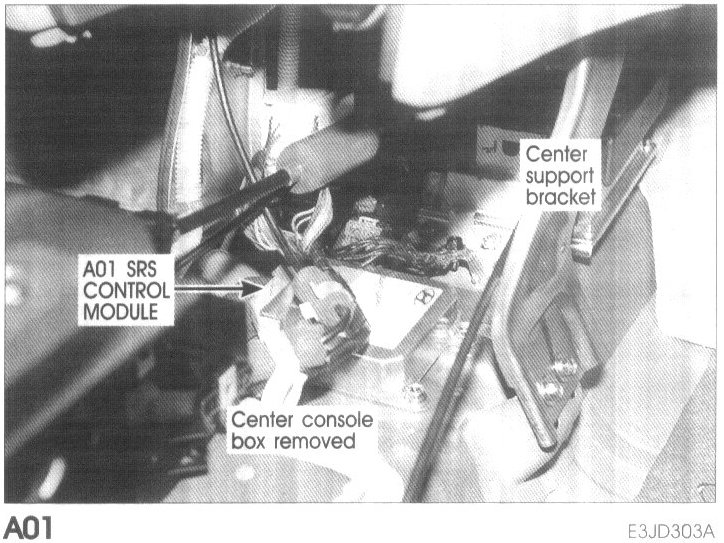

A01:

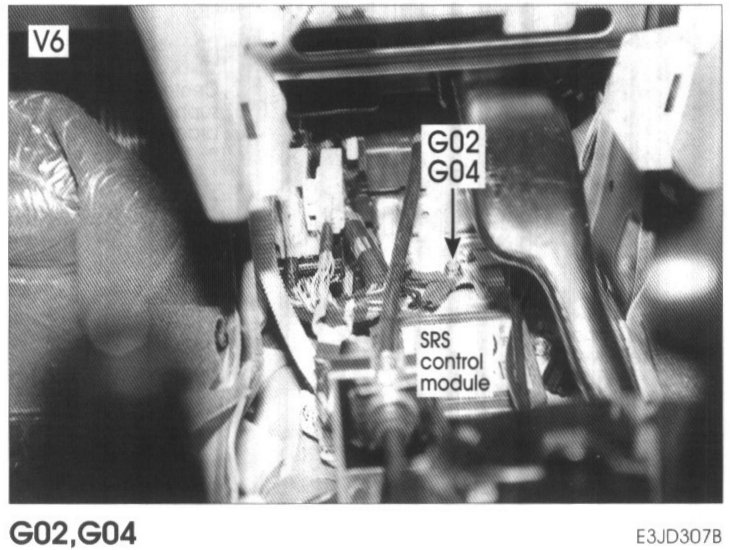

G02, G04:

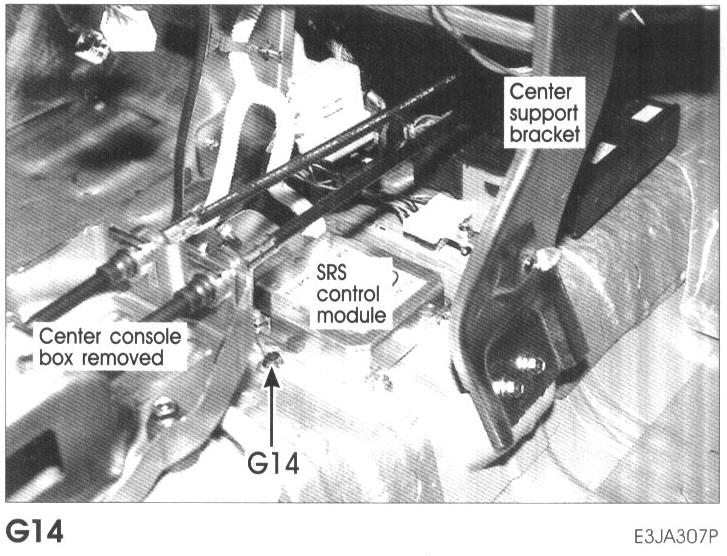

G14:
