Input Monitoring

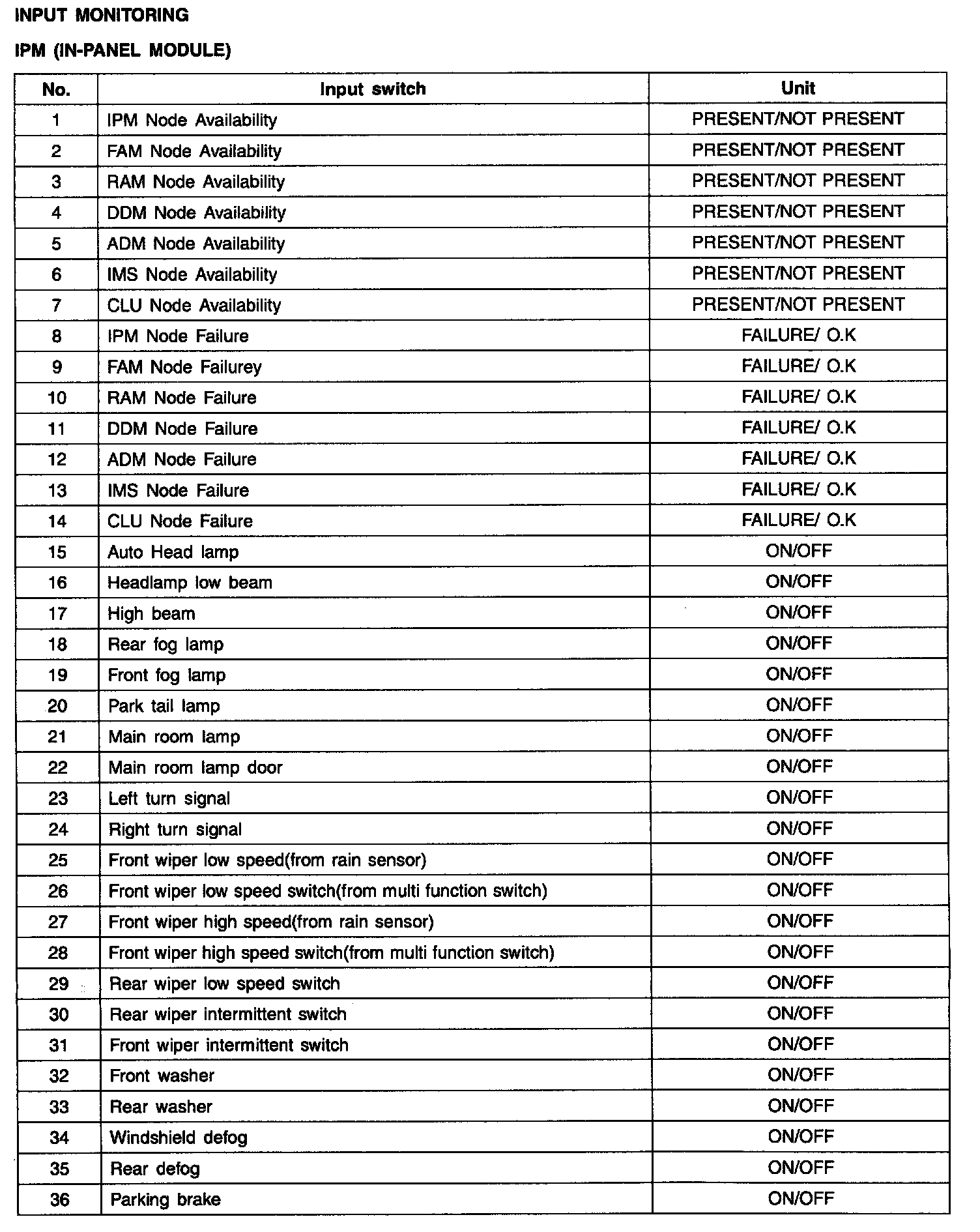

IPM (In-Panel Module) (Part 1):

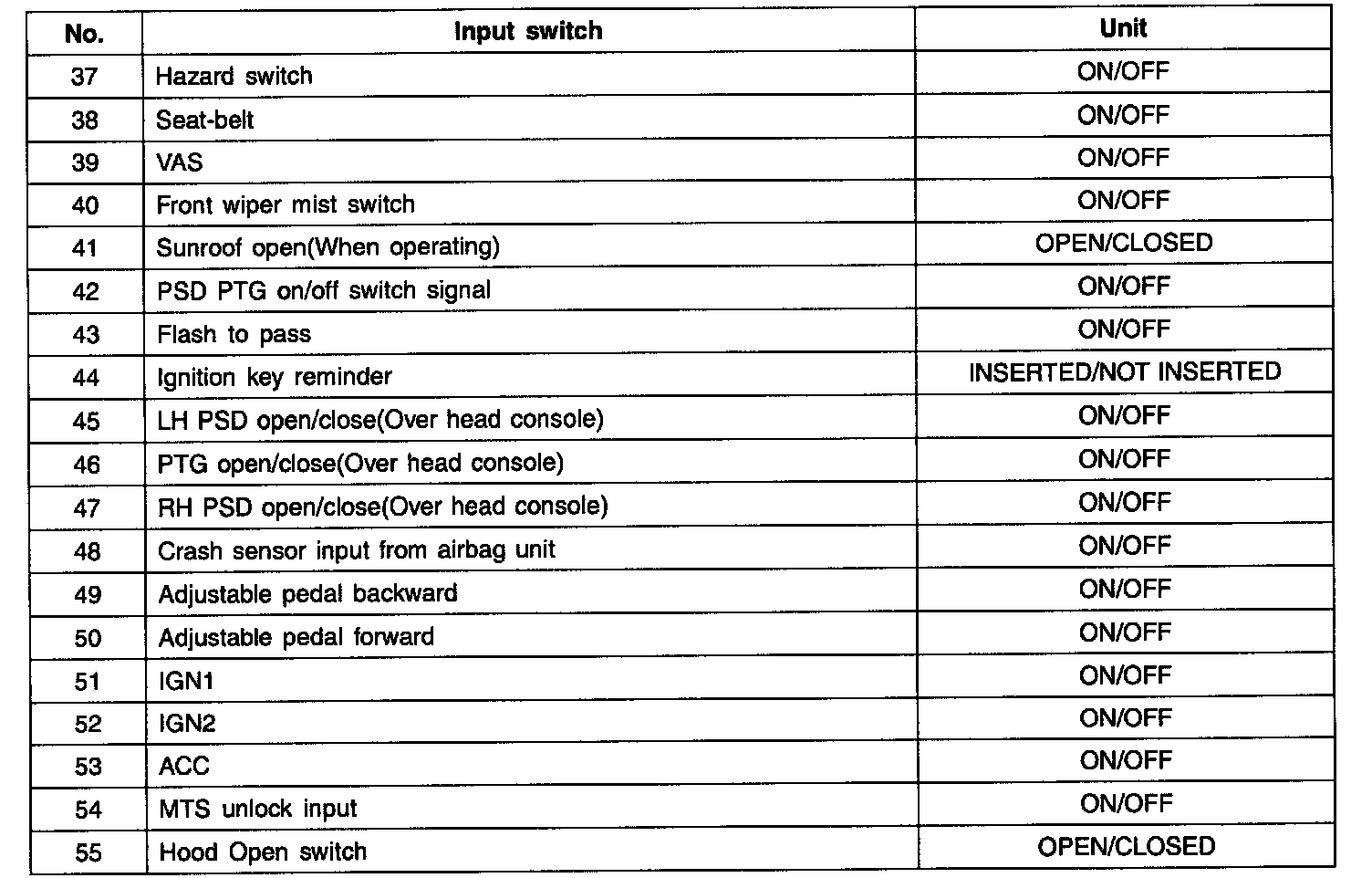

IPM (In-Panel Module) (Part 2):

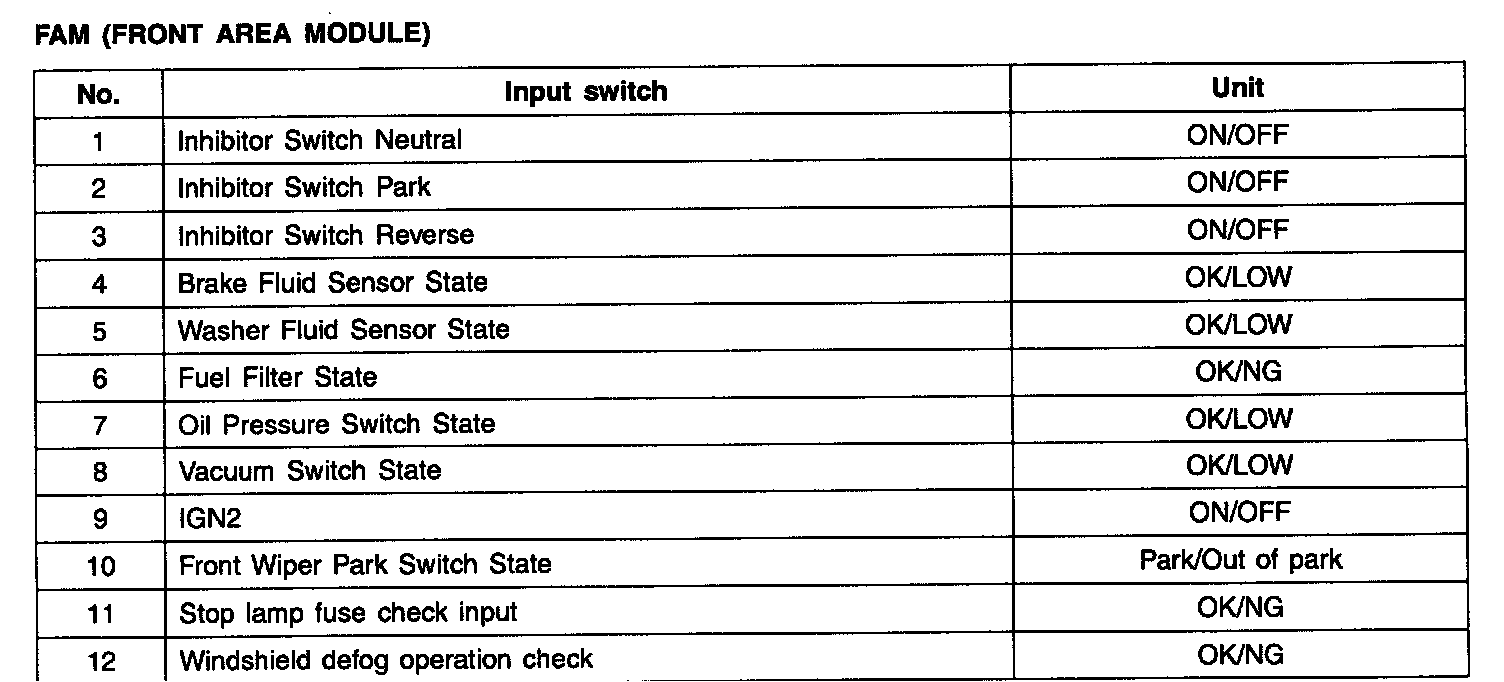

FAM (Front Area Module):

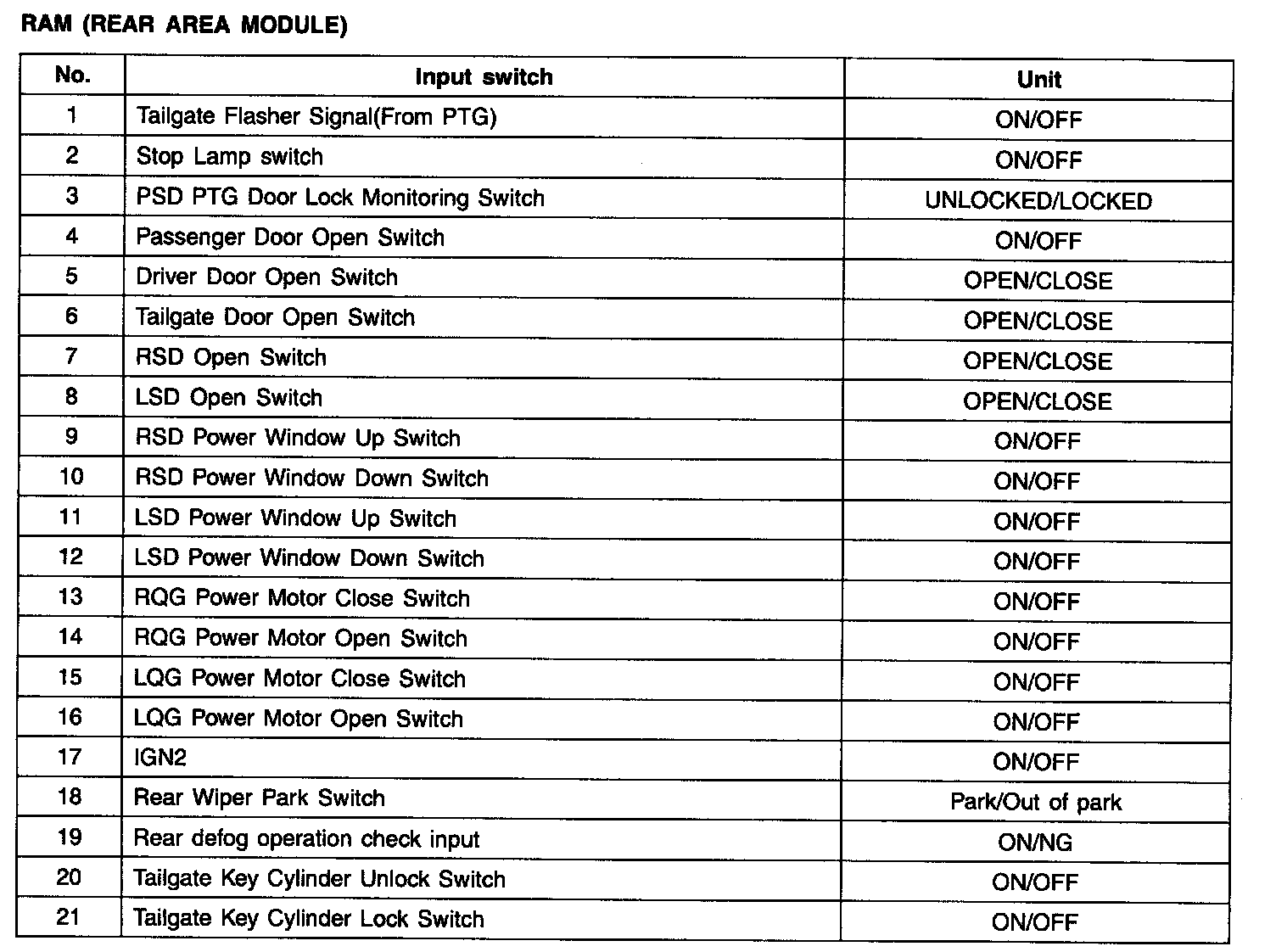

RAM (Rear Area Module):

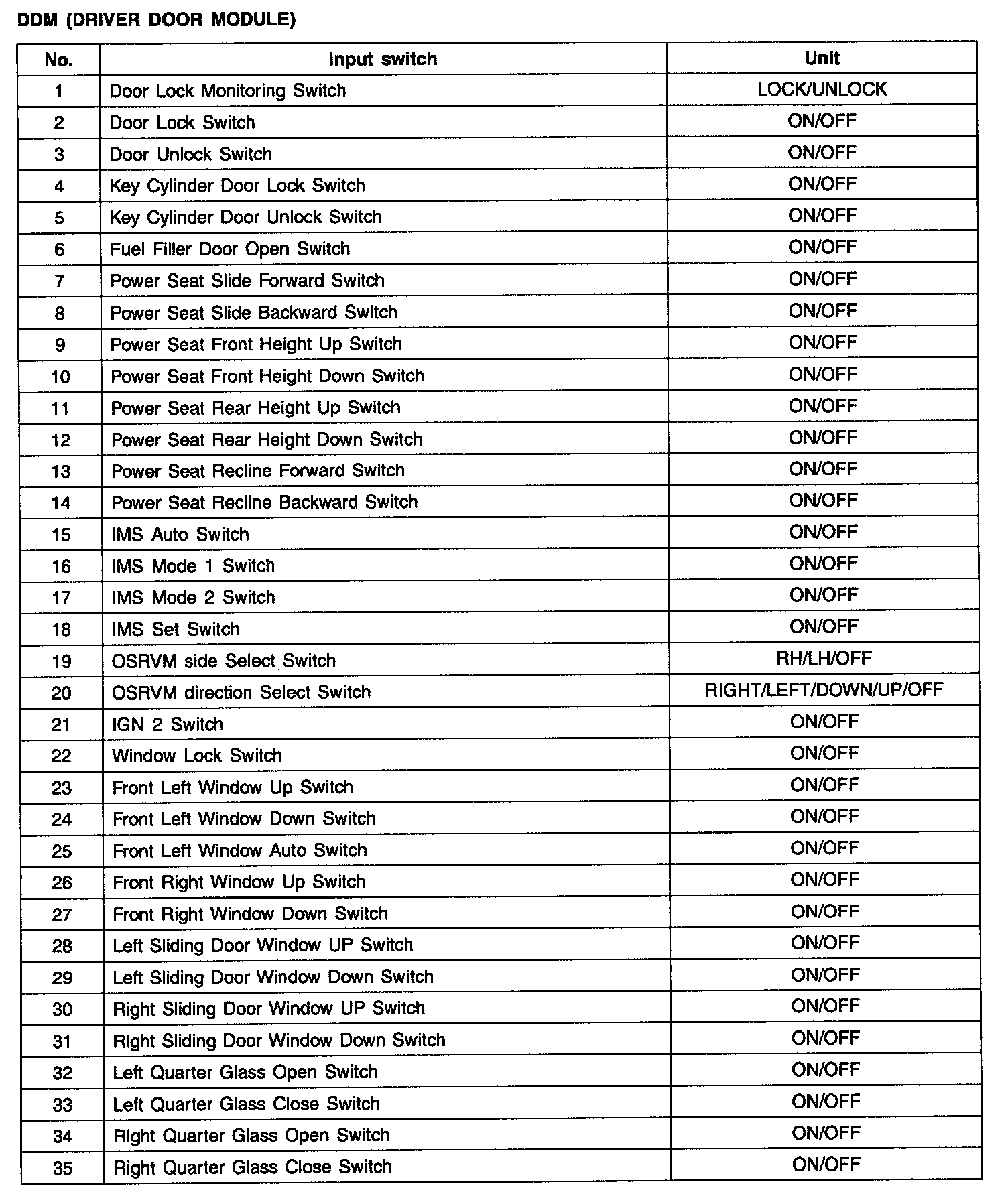

DDM (Driver Door Module):



ADM (Assist Door Module):



IMS Module:
