Radio/Stereo
Radio/Stereo

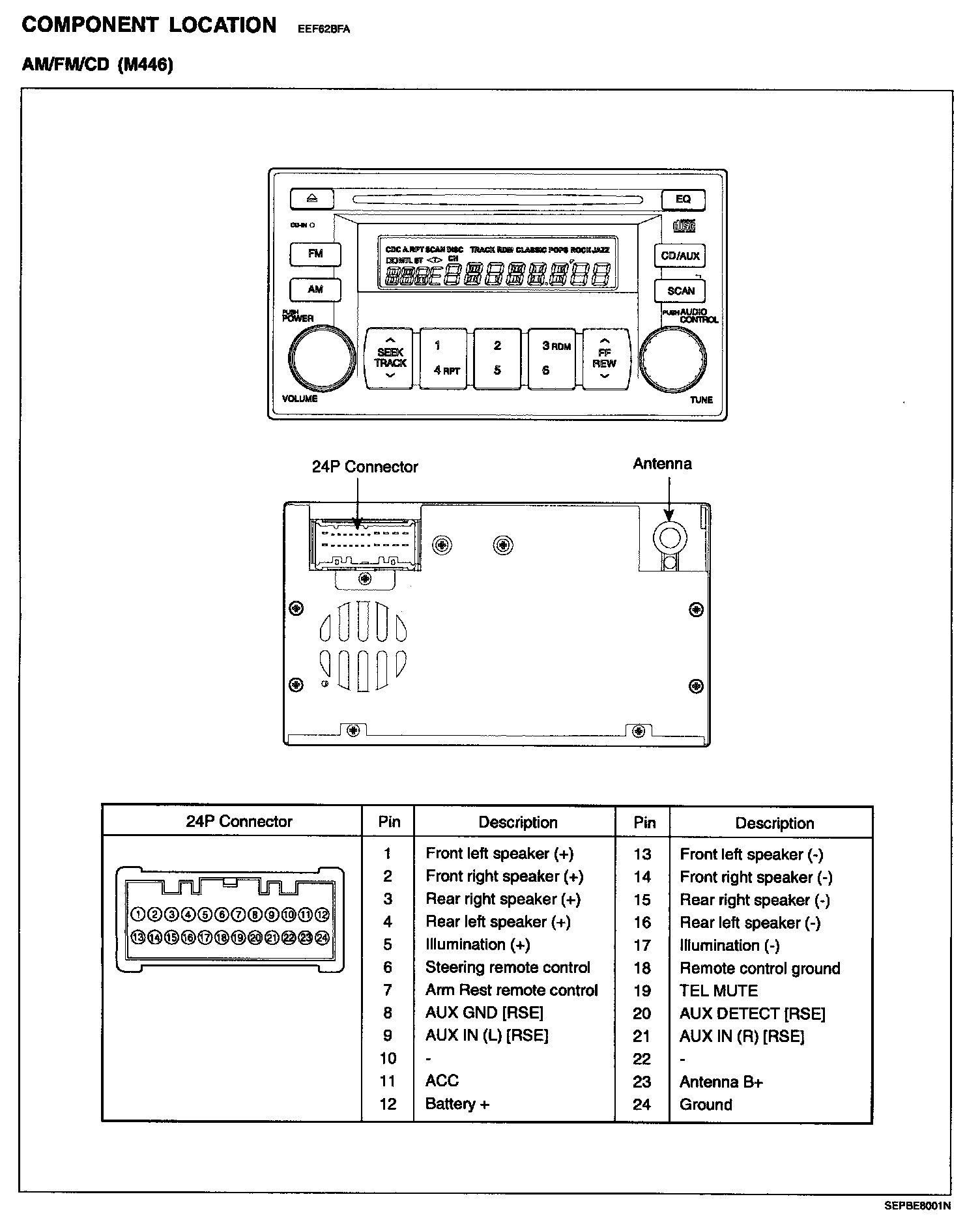

Audio Unit [AM/FM/CD (M446)] - Component Location:

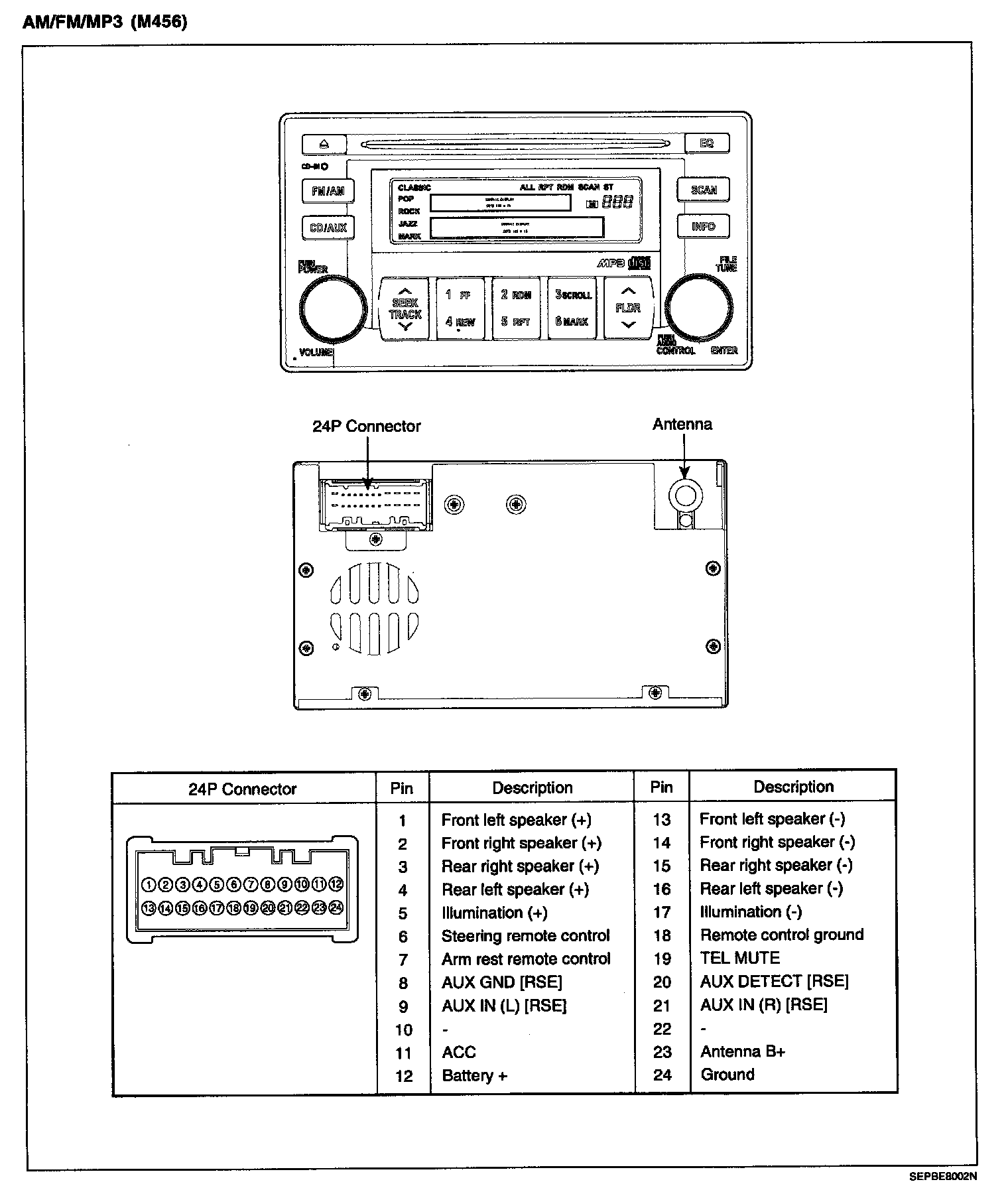

Audio Unit [AM/FM/MP3 (M456)] - Component Location:

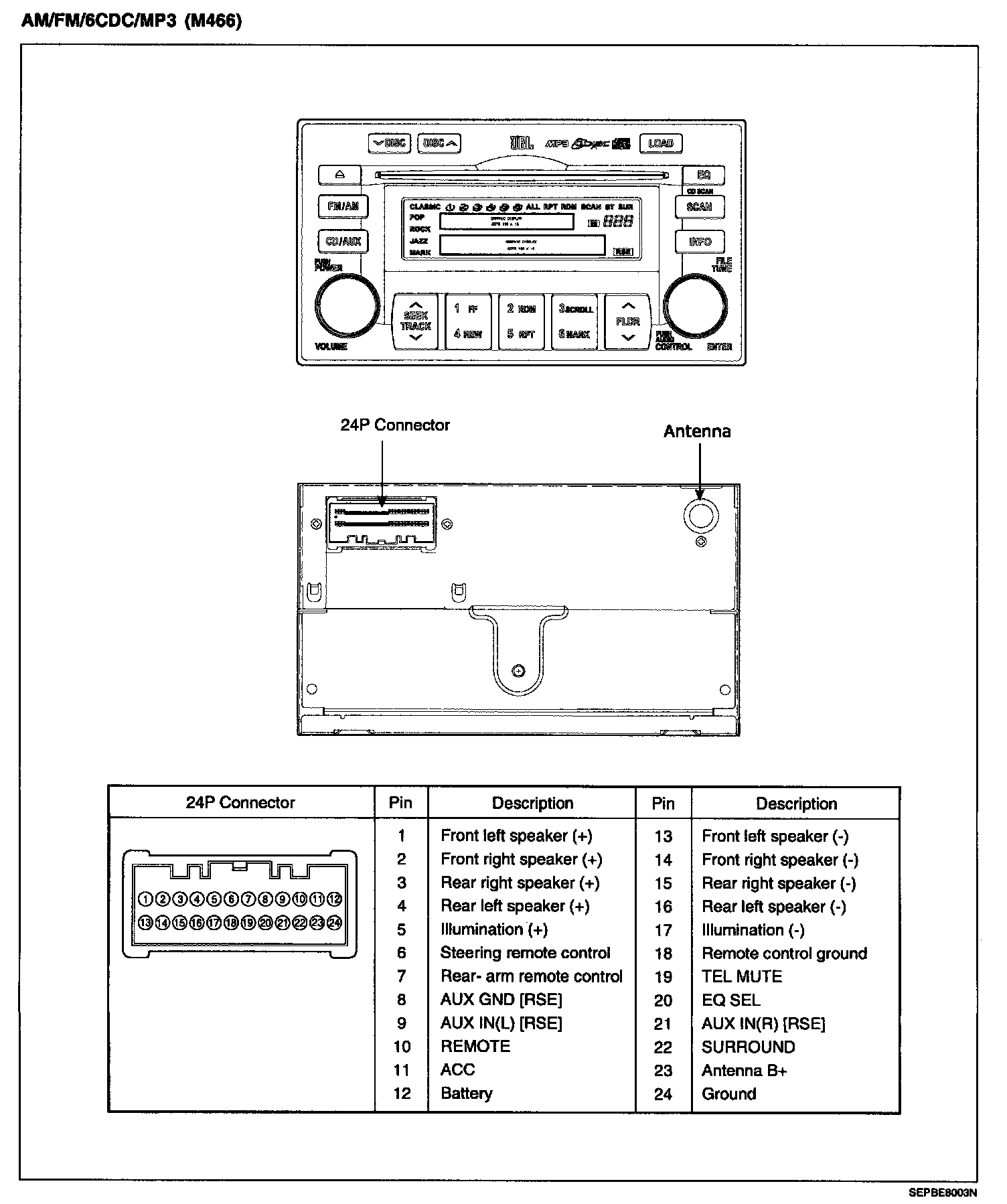

Audio Unit [AM/FM/6CDC/MP3 (M466)] - Component Location:
