Relay Box (Passenger Compartment) IPM
Relay Box (Passenger Compartment) IPM

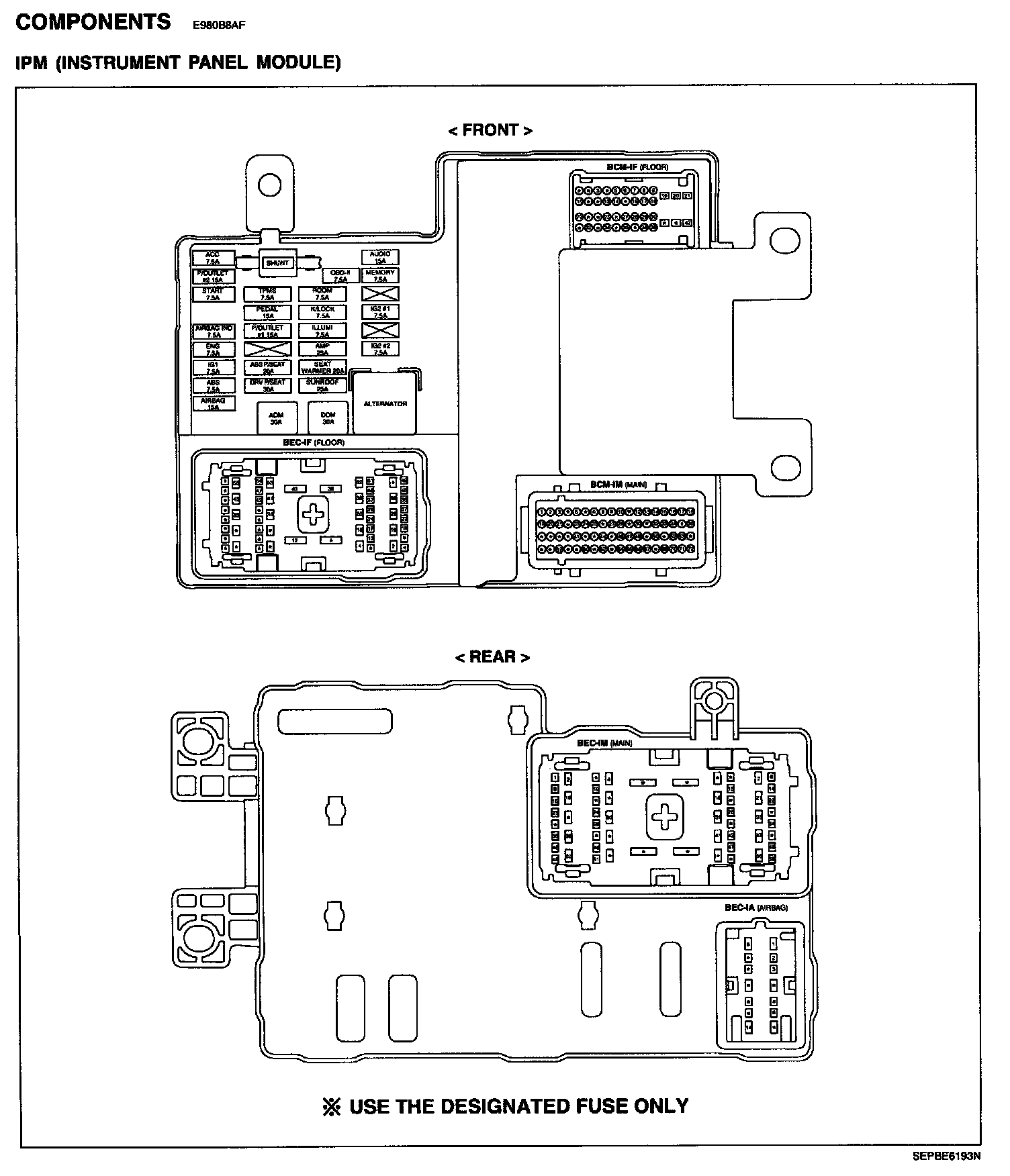

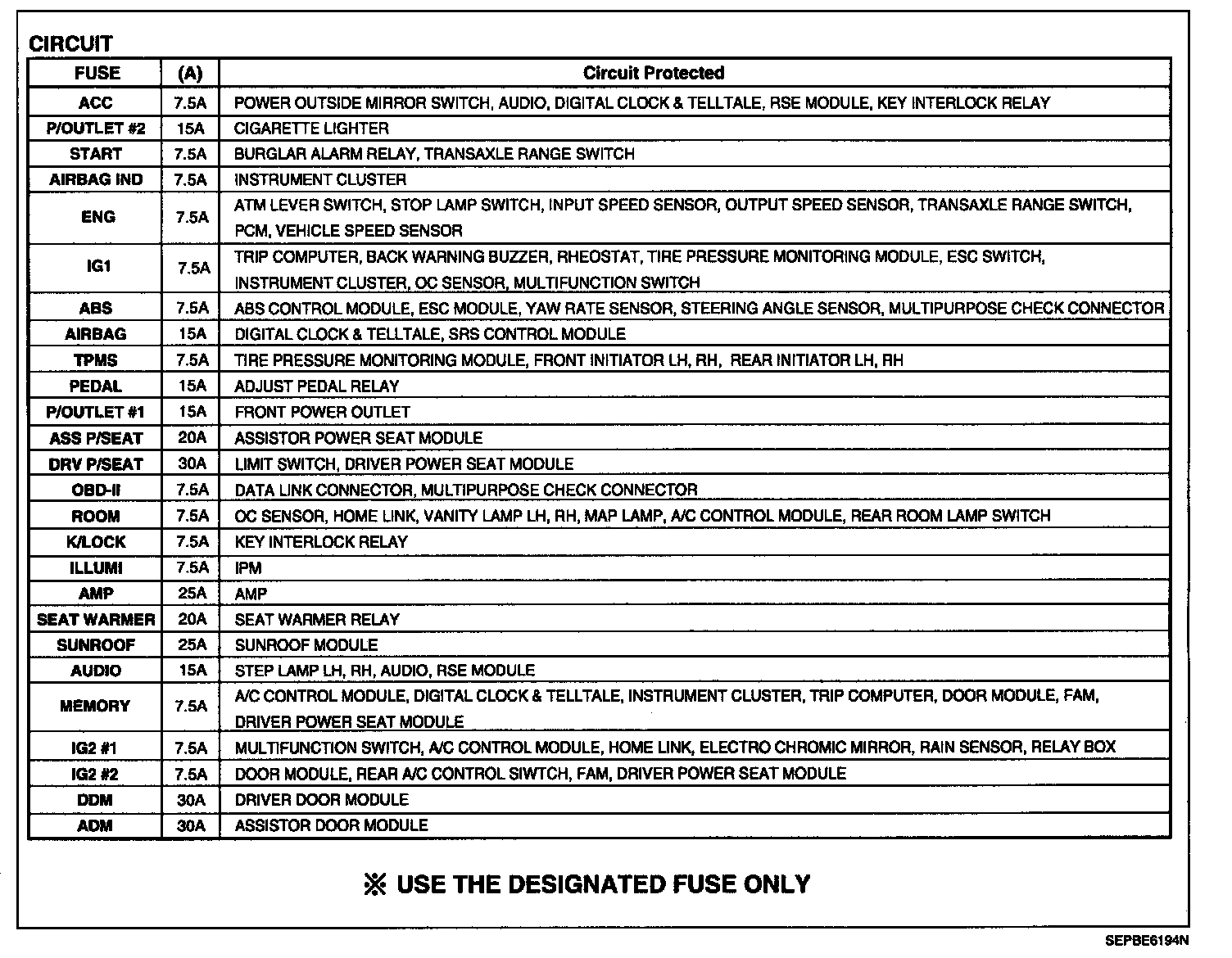

Relay Box (Passenger Compartment) IPM (Instrument Panel Module) - Components:
Relay Box (Passenger Compartment) IPM (Instrument Panel Module) - Components:
