Front Wiper Motor

FRONT WIPER MOTOR

REMOVAL

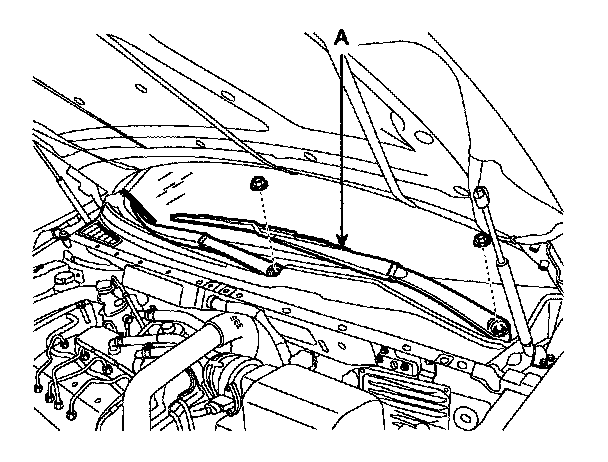

1. Remove the windshield wiper arm and blade after removing the mounting nut (A).

TORQUE: 28-32 Nm (2.8-3.2 kgf.m, 20-23.1 lbf.ft)

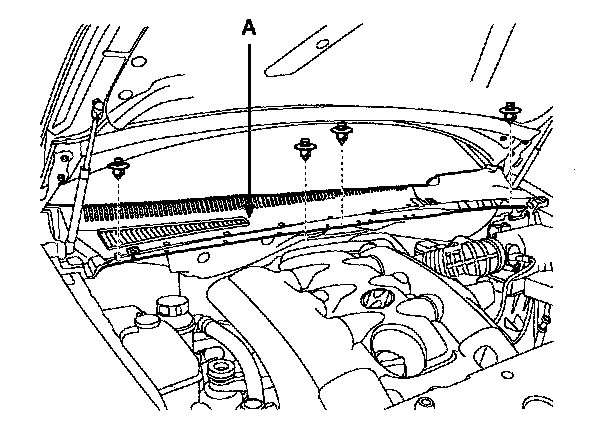

2. Remove the weather strip and the cowl top cover (A) after removing 4 fasteners.

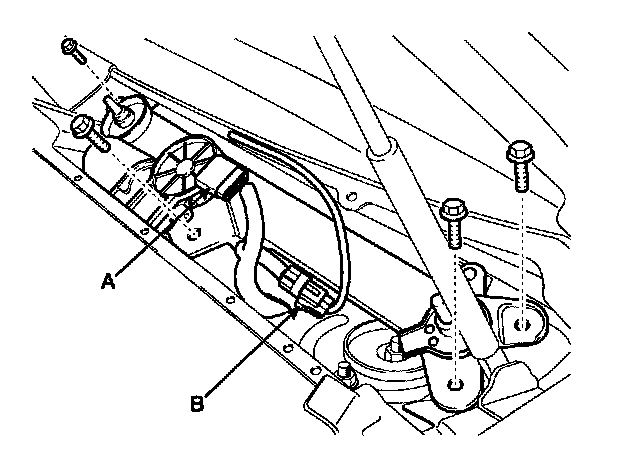

3. Remove the windshield wiper motor and linkage assembly after removing 4 bolts. Disconnect the wiper motor connector (A) and windshield deicer connector (B) from the wiper motor & linkage assembly.

Torque: 7-11 Nm (0.7-1.1, kgf.m, 5.0-7.9 lbf.ft)






4. Installation is the reverse of removal.

INSTALLATION

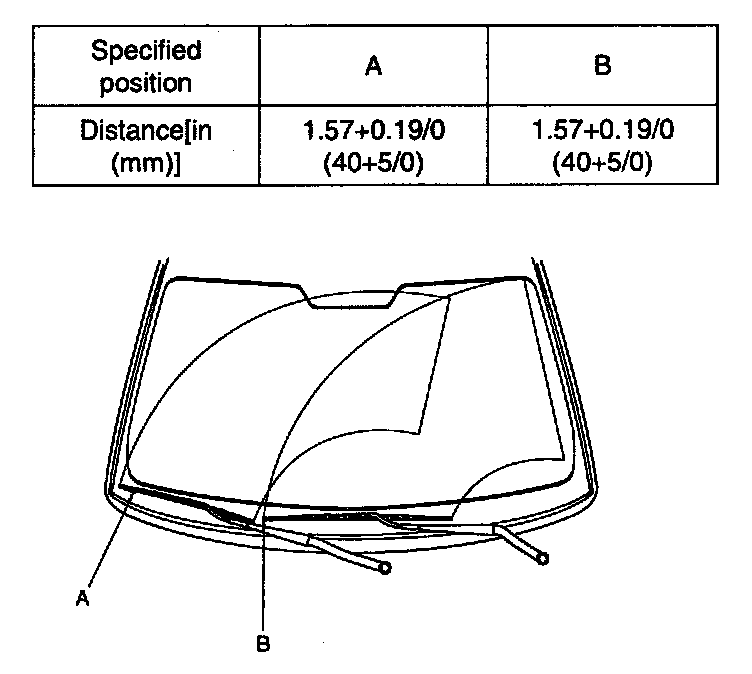

1. Install the wiper arm and blade to the specified position.






2. Set the washer nozzle on the specified spray position.
