Home >> Hyundai Truck >> 2008 >> Tucson AWD L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Locations

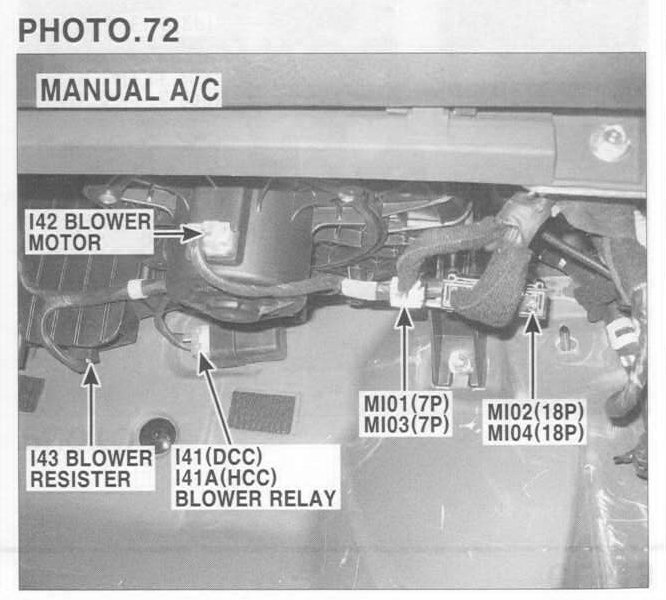

Blower Motor Resistor: Locations

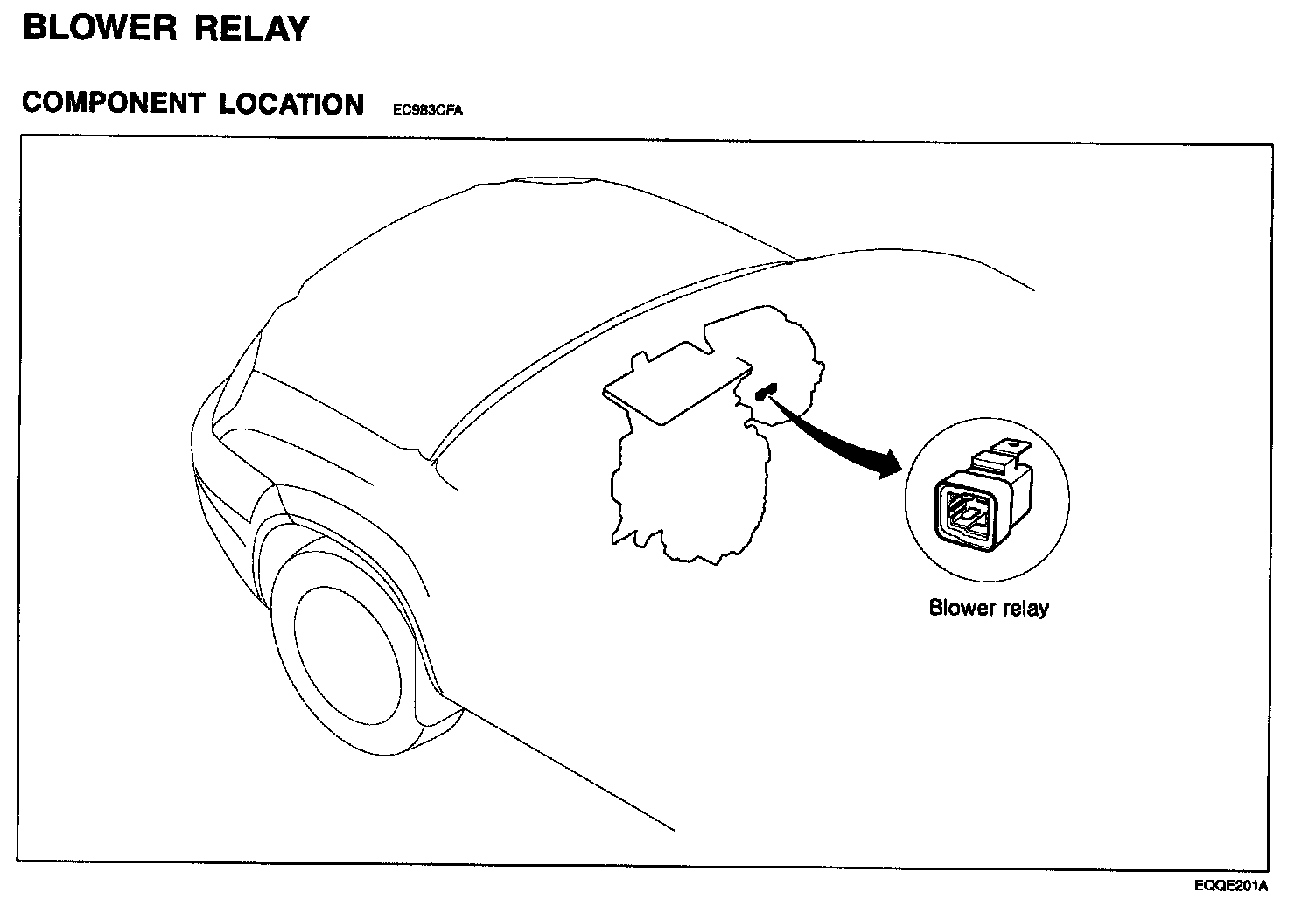

Blower Relay - Component Location:
