Grille: Service and Repair





Radiator Grille Replacement
1. Open the hood.

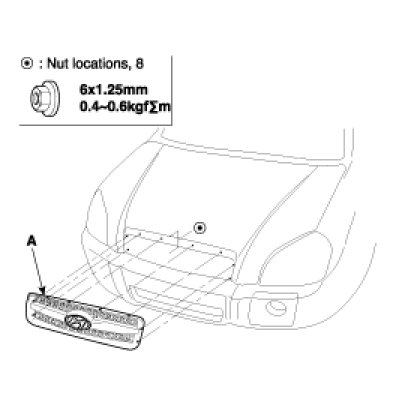

2. Remove the radiator grille (A).
3. Installation is the reverse of removal.
