Power Mirror Switch: Testing and Inspection

Inspection

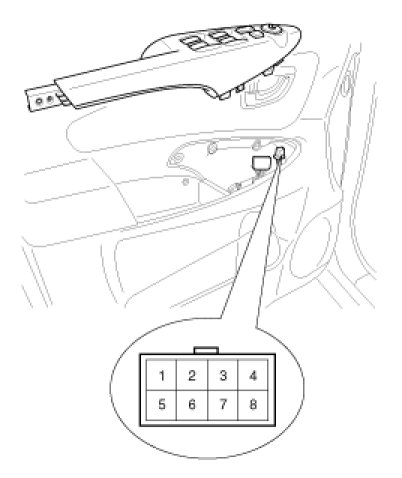

1. Remove the driver's door trim panel. (see BD group-front door)
2. Disconnect the 8P connector from the power door mirror switch.

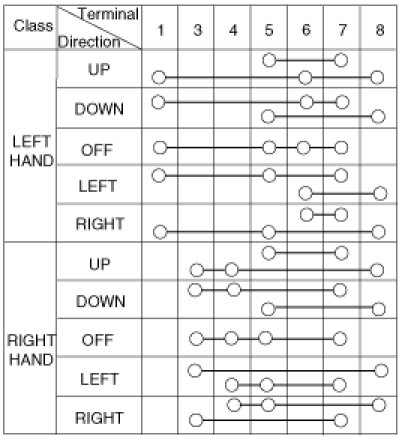

3. Check for continuity between the terminals in each switch position according to the table.
