Ambient Temperature Sensor / Switch HVAC: Testing and Inspection





Inspection

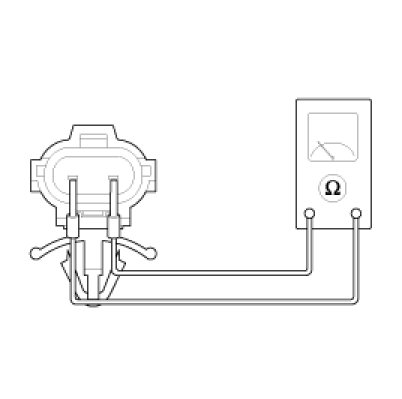

Measure the resistance.

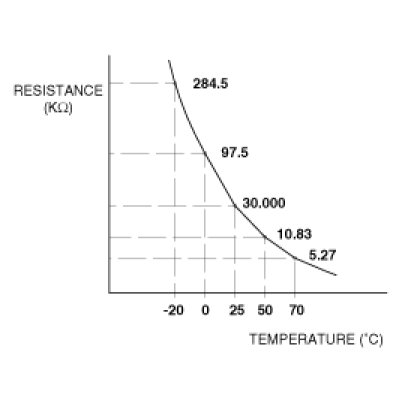

Resistance-temp. Characteristic Table











Characteristics
