Reassembly

Reassembly

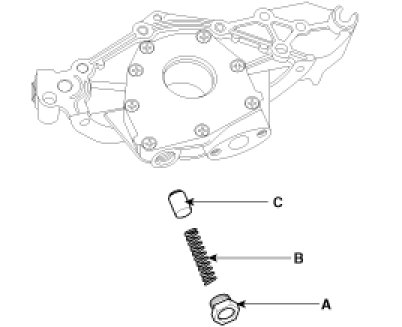

1. Install relief plunger.
Install relief plunger(C) and spring(B) into the front case hole, and install the plug(A).

Tightening torque
40 - 50Nm (4.0 - 5.0kgf.m, 30 - 37lb-ft)
