Reassembly

Reassembly

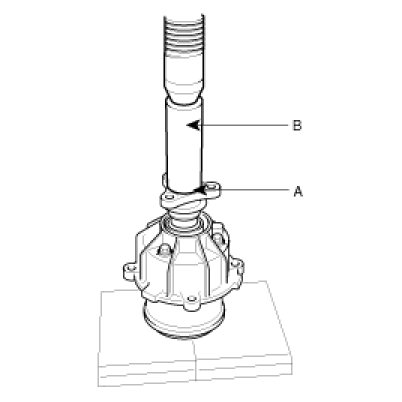

1. When reassembling the back plate oil seal(A), reassemble it using a suitable tool(B).




2. In case of the coupling case oil seal(A), too, reassemble it using a suitable tool(B).




3. When reassembling the 4WD coupling assembly and the flange(A), too, reassemble them using a suitable tool(B).

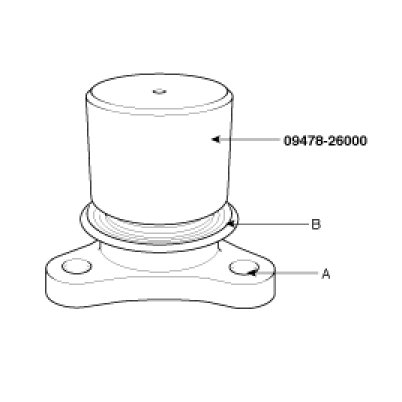

4. Install the flange(A) oil seal(B) using special tool(09478-26000).
