Rear Glass Defogger Switch





Inspection

1. Remove the negative(-) battery terminal.

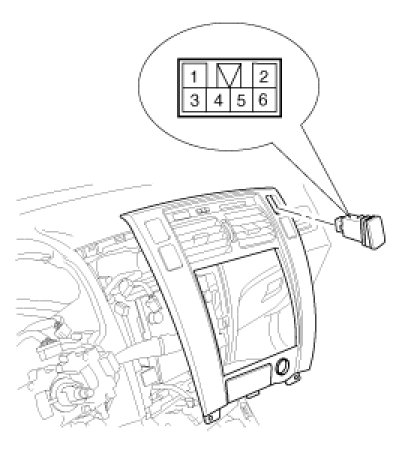

2. Remove the center facia panel then disconnect the 6P connector from the rear window defogger switch.

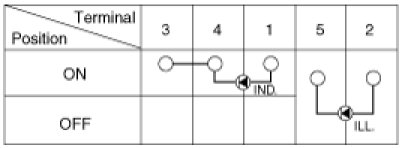

3. Check for continuity between terminals while operating the defogger switch.
