Electrical Diagrams

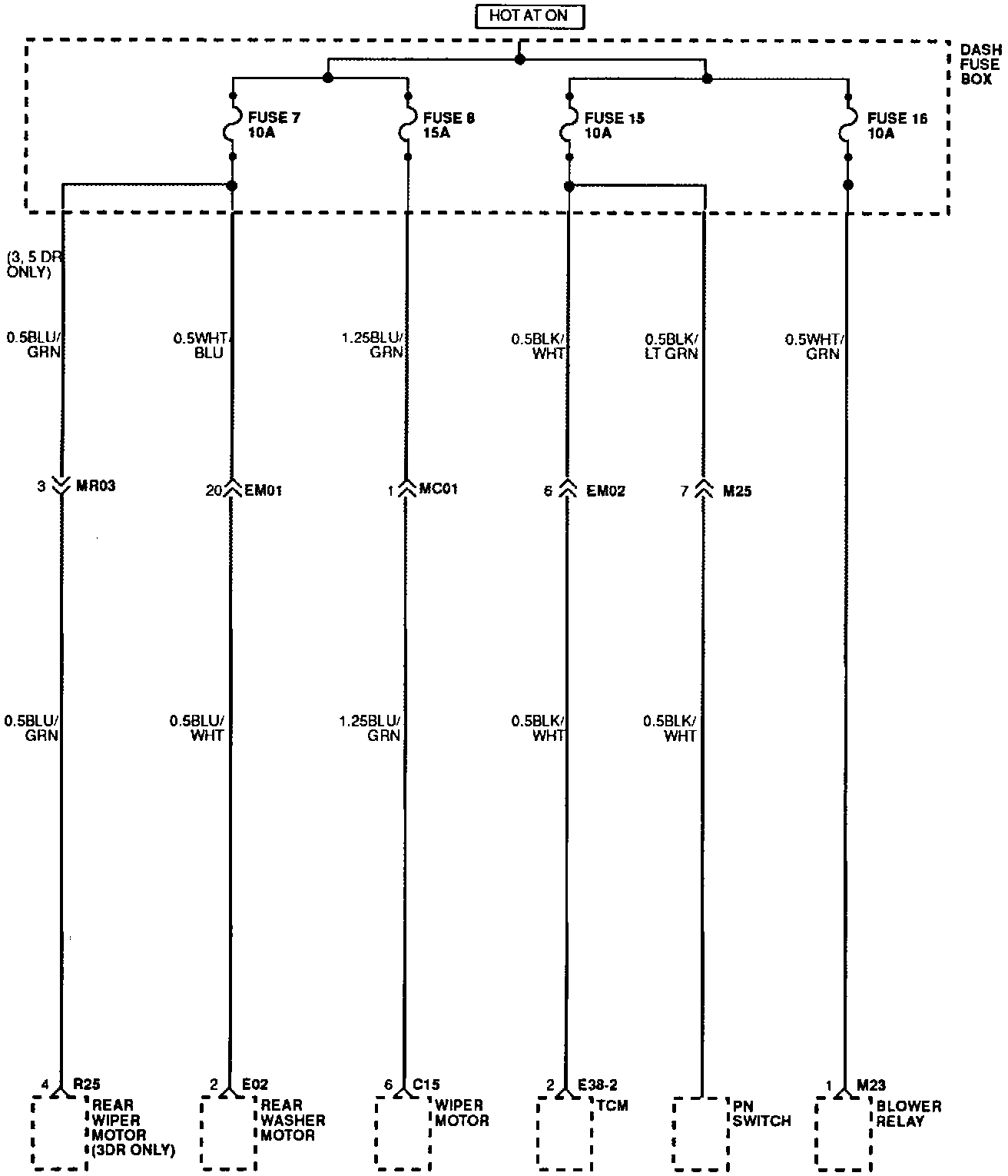

Dash Fuse Box Details (Part 1 Of 4):

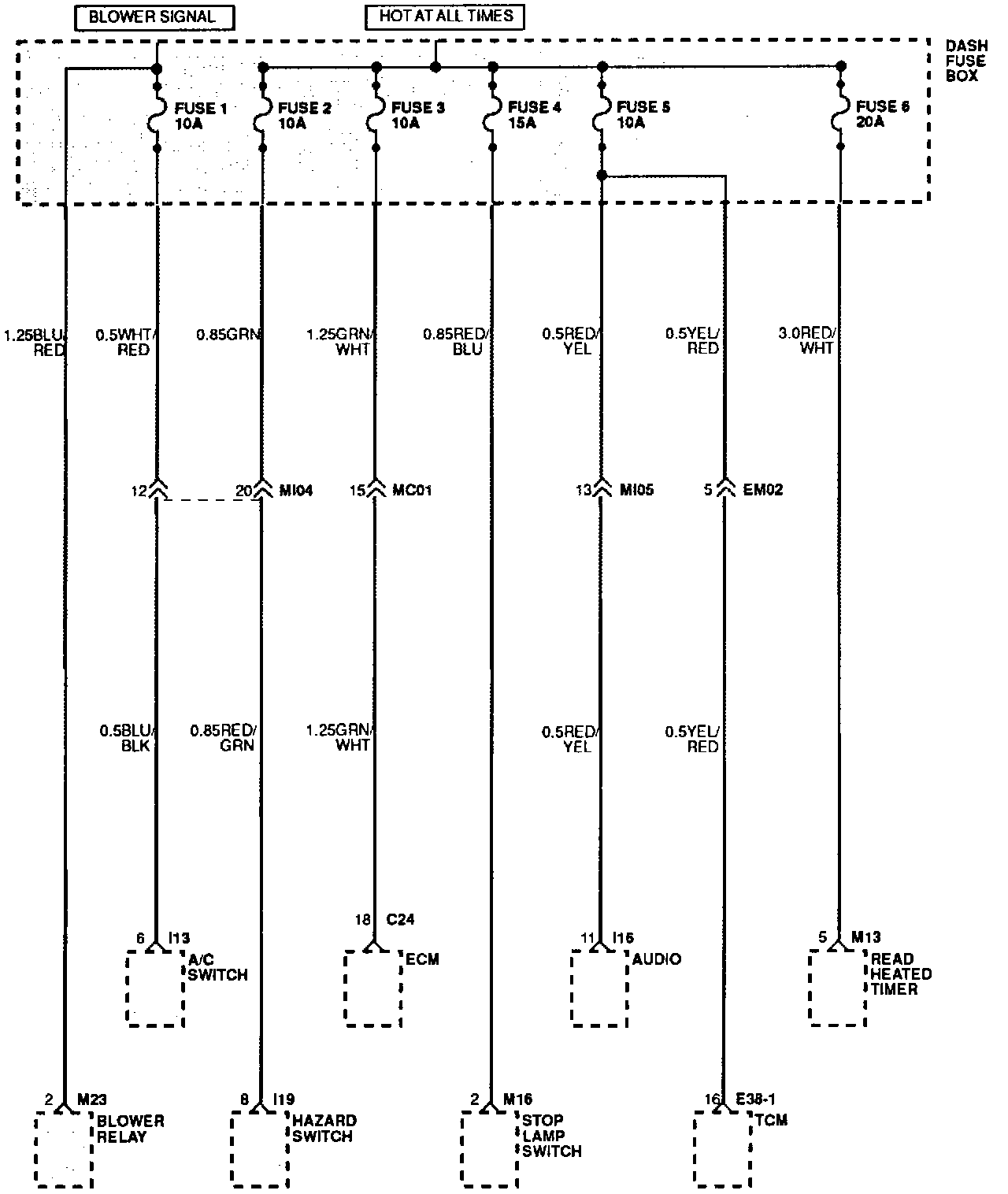

Dash Fuse Box Details (Part 2 Of 4):

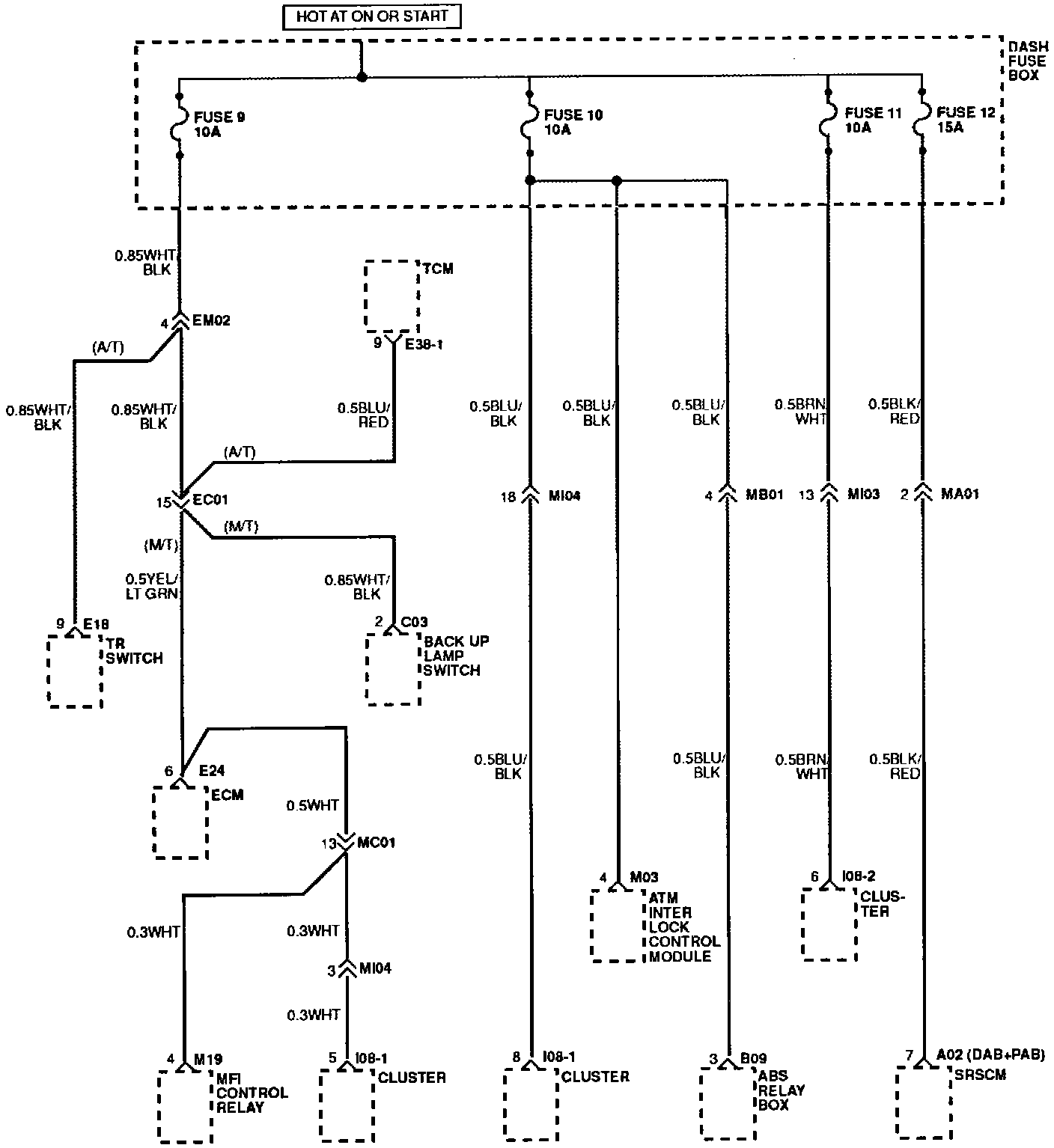

Dash Fuse Box Details (Part 3 Of 4):




Dash Fuse Box Details (Part 4 Of 4):
