Antilock Brakes / Traction Control Systems

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

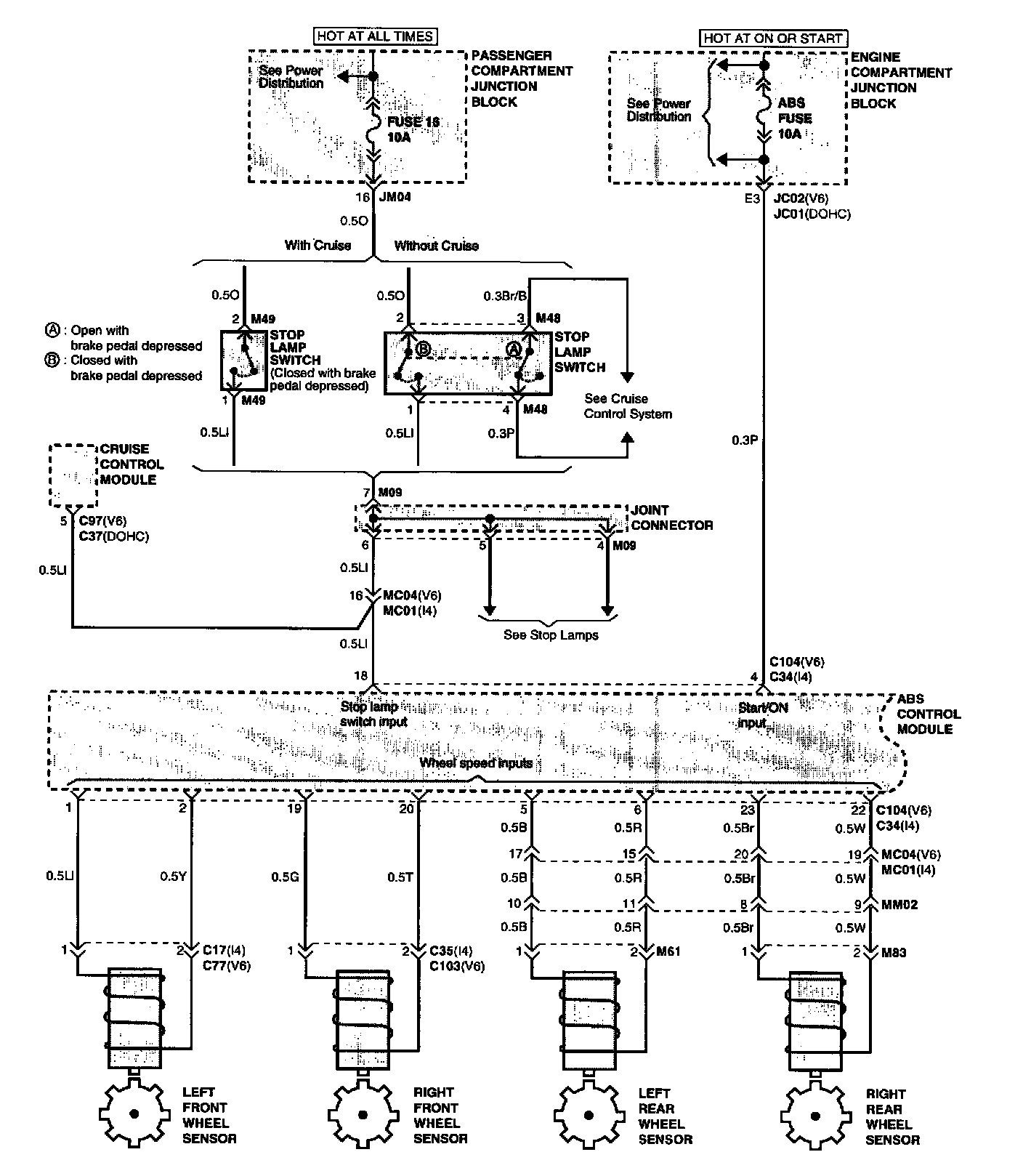

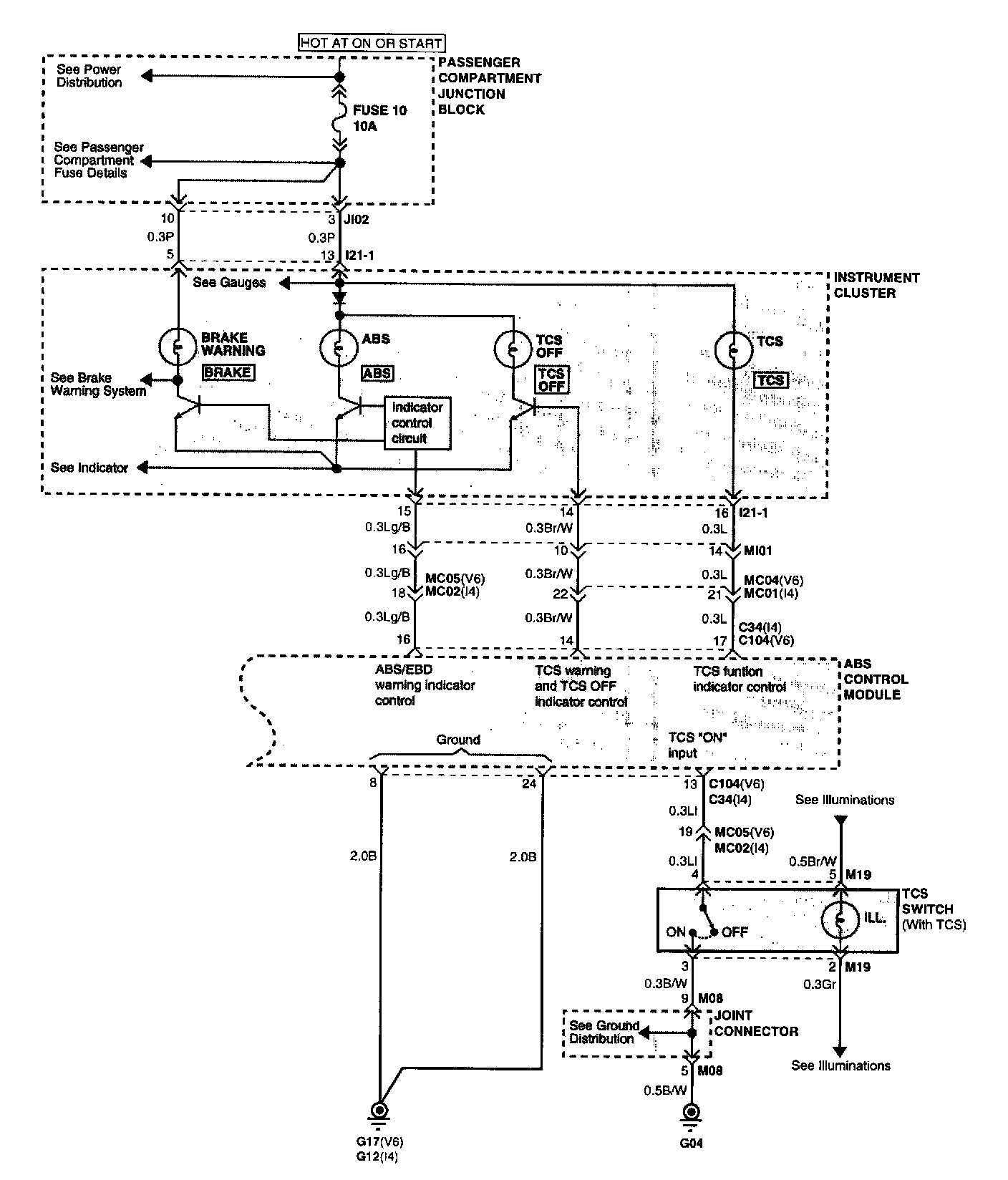

Image SD-118:

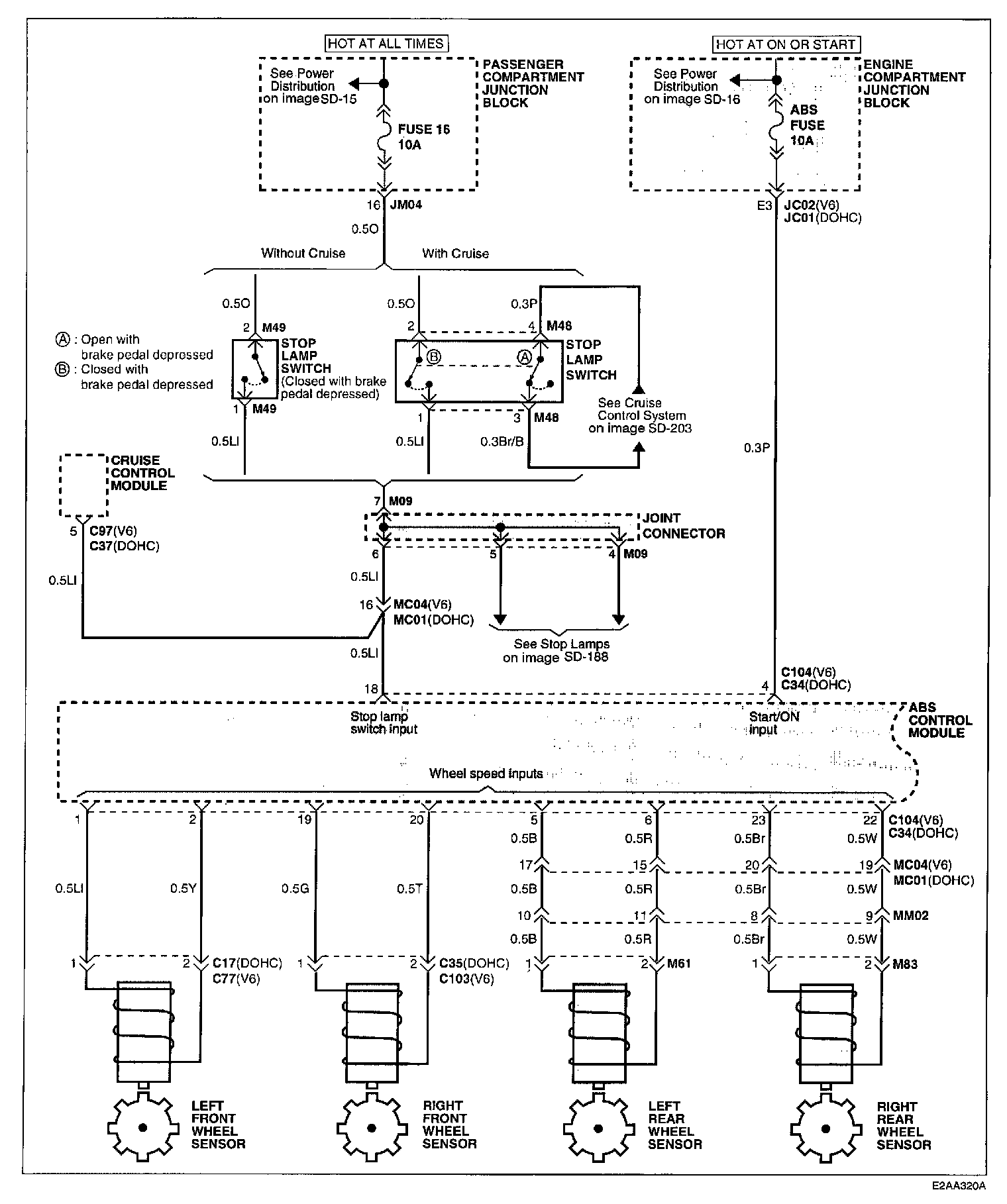

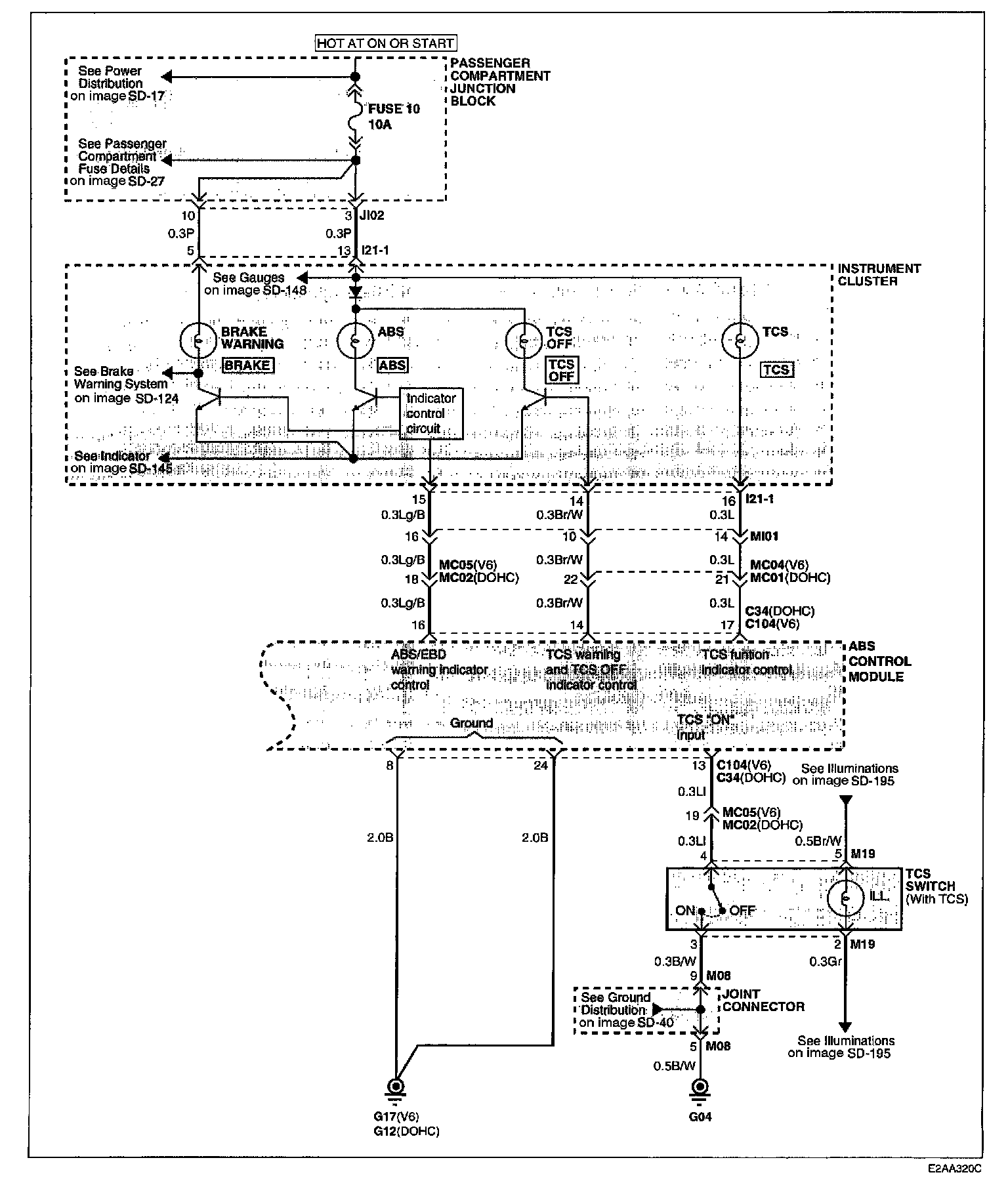

Image SD-119:

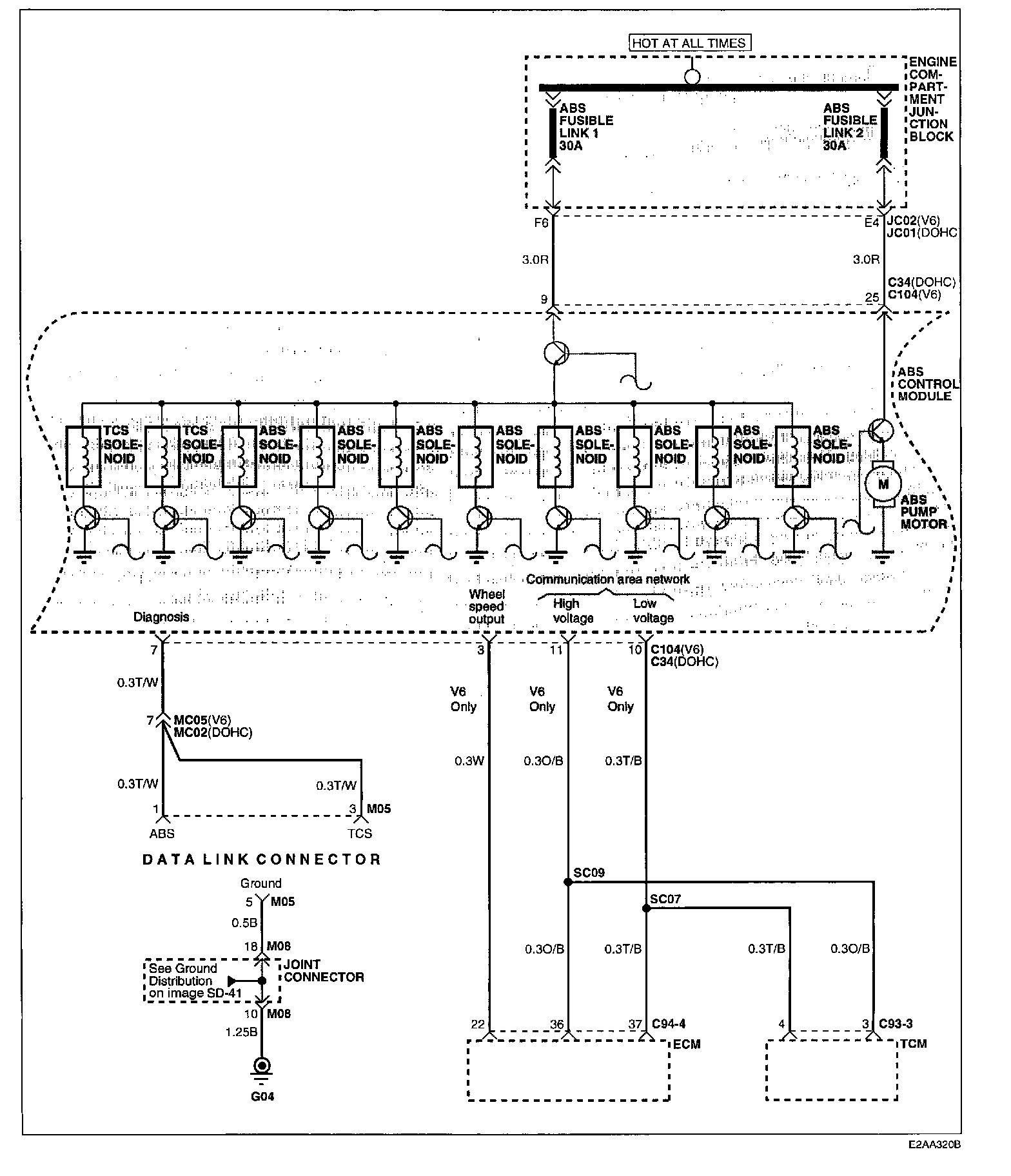

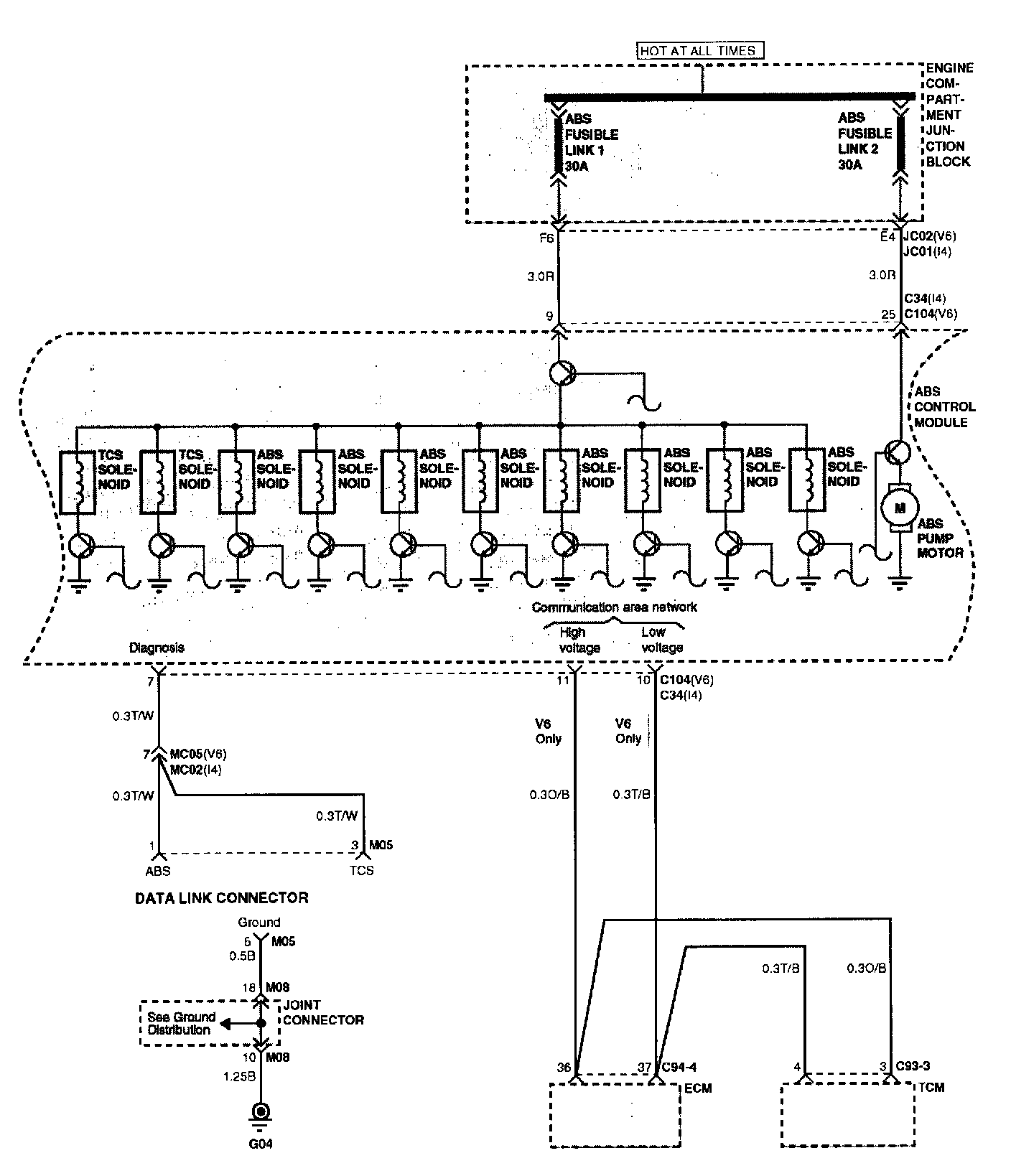

Image SD-120:




��O4 O� OImage SD 120-001:




Schematic Diagrams
