Evaporator Case: Locations

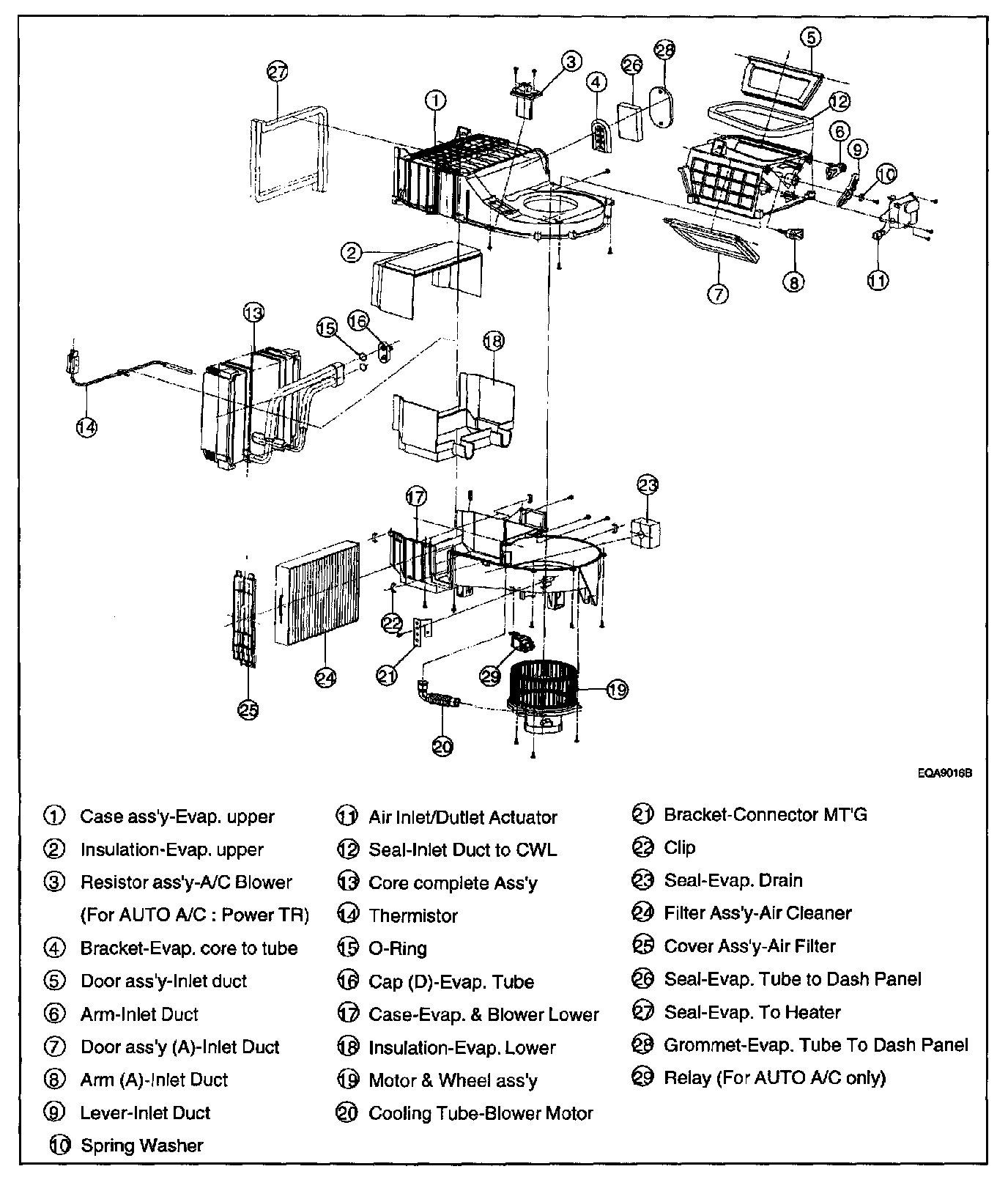

Components ( EVAP And Blower Unit ):



I08 Evaporator Temperature Sensor (Auto A/C), I10 Water Temperature Sensor (Auto A/C), I11 Temperature Actuator (Auto A/C):



I09 Thermistor (Manual A/C):
