Home >> Hyundai >> 2000 >> Sonata L4-2.4L >> Repair and Diagnosis >> Locations >> Harness Locations >> Door Harness

Door Harness

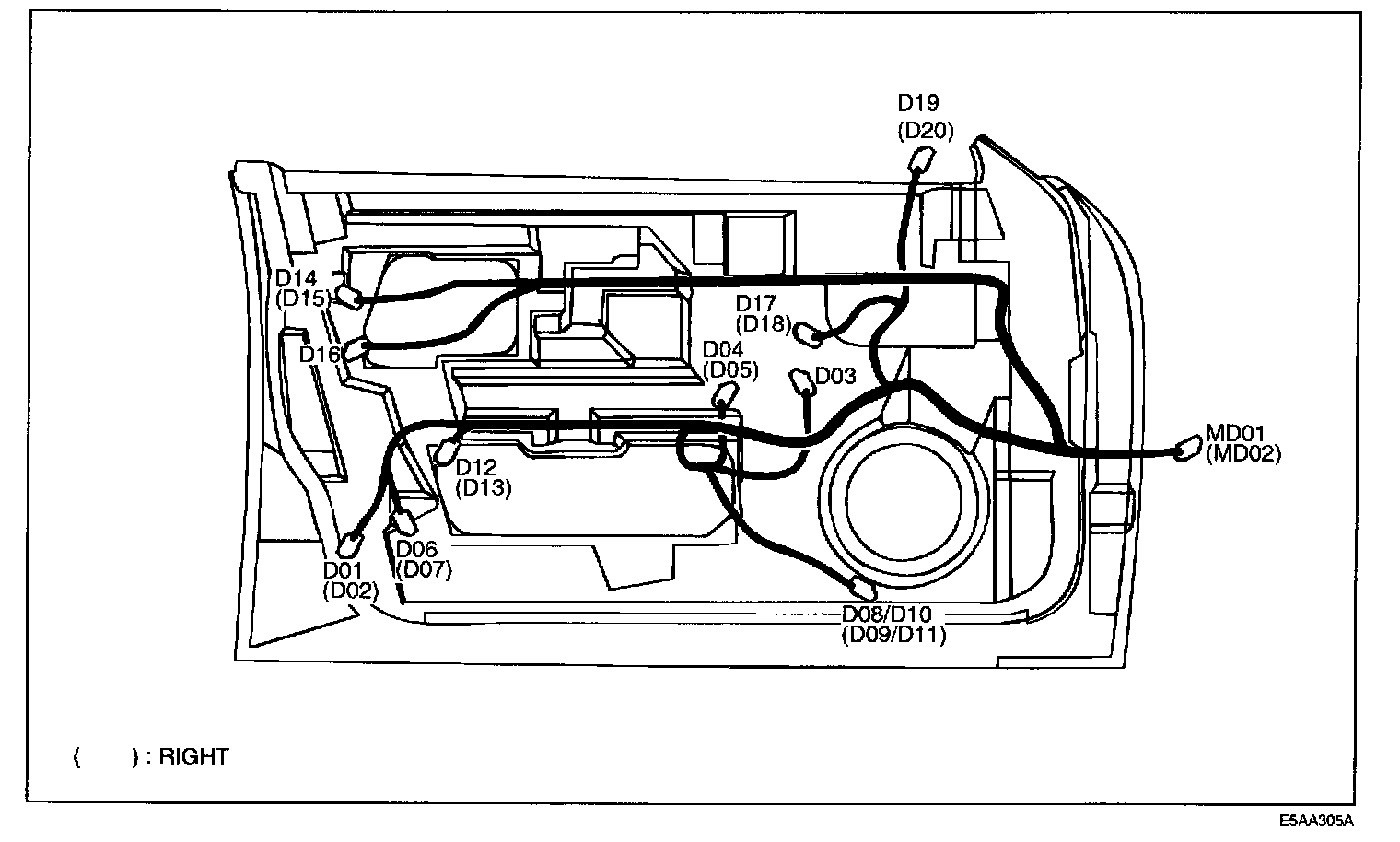

Connector Location (Front):

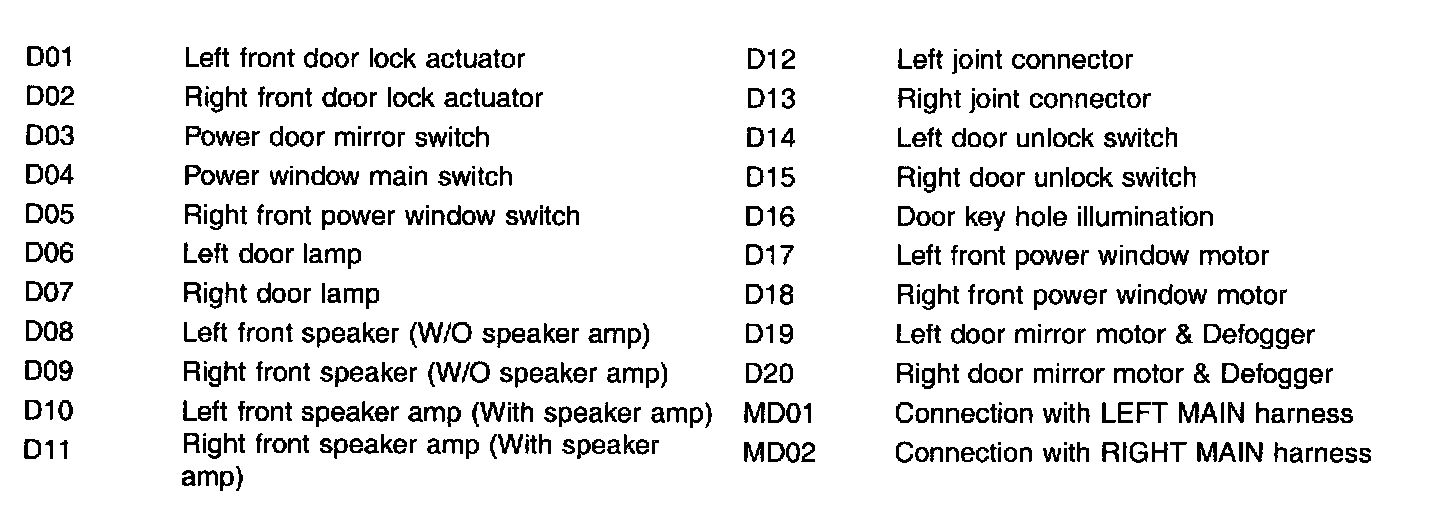

Connector Index (Front):

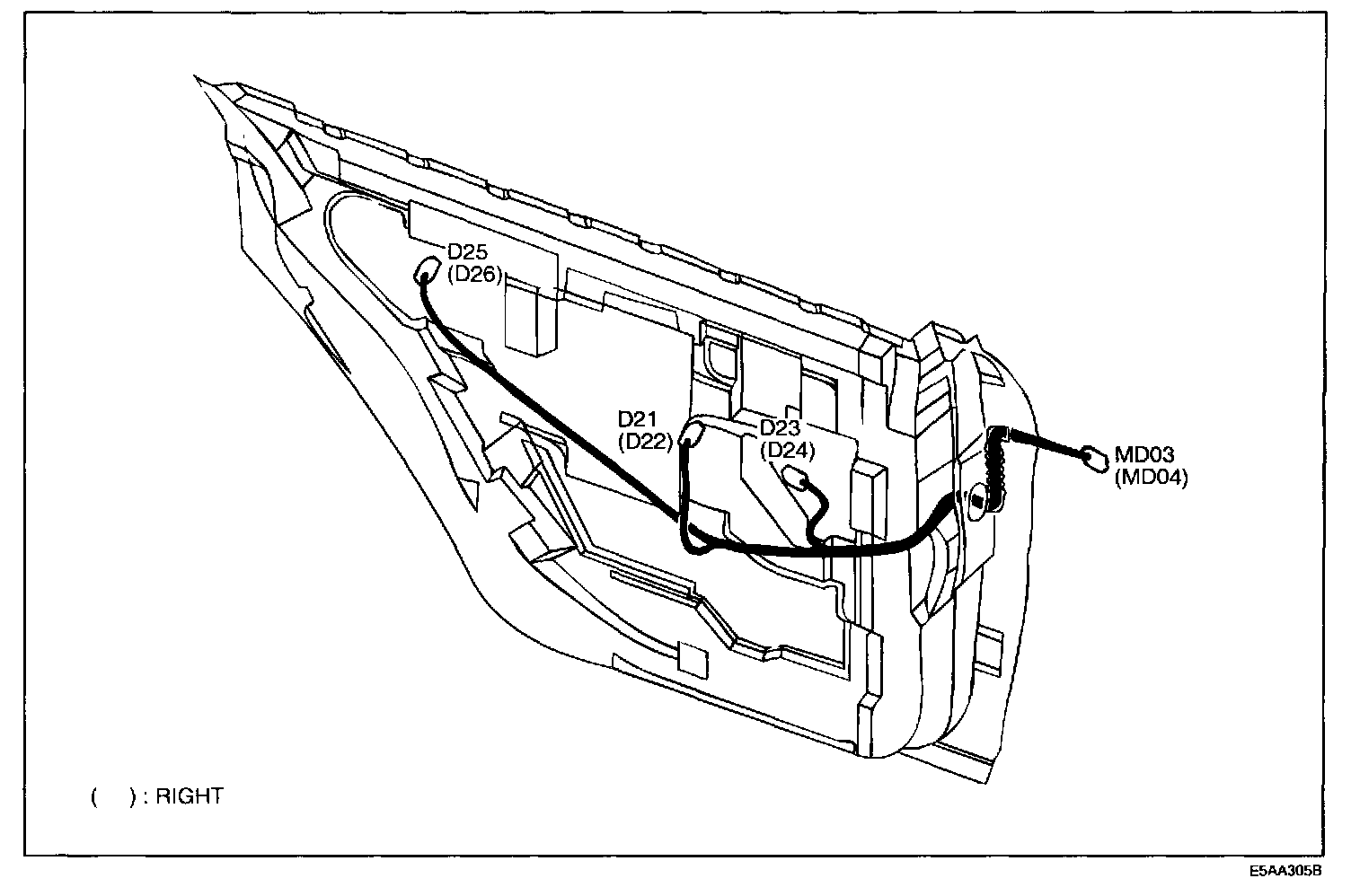

Connector Location (Rear):

Connector Index (Rear):
