Instrument Harness

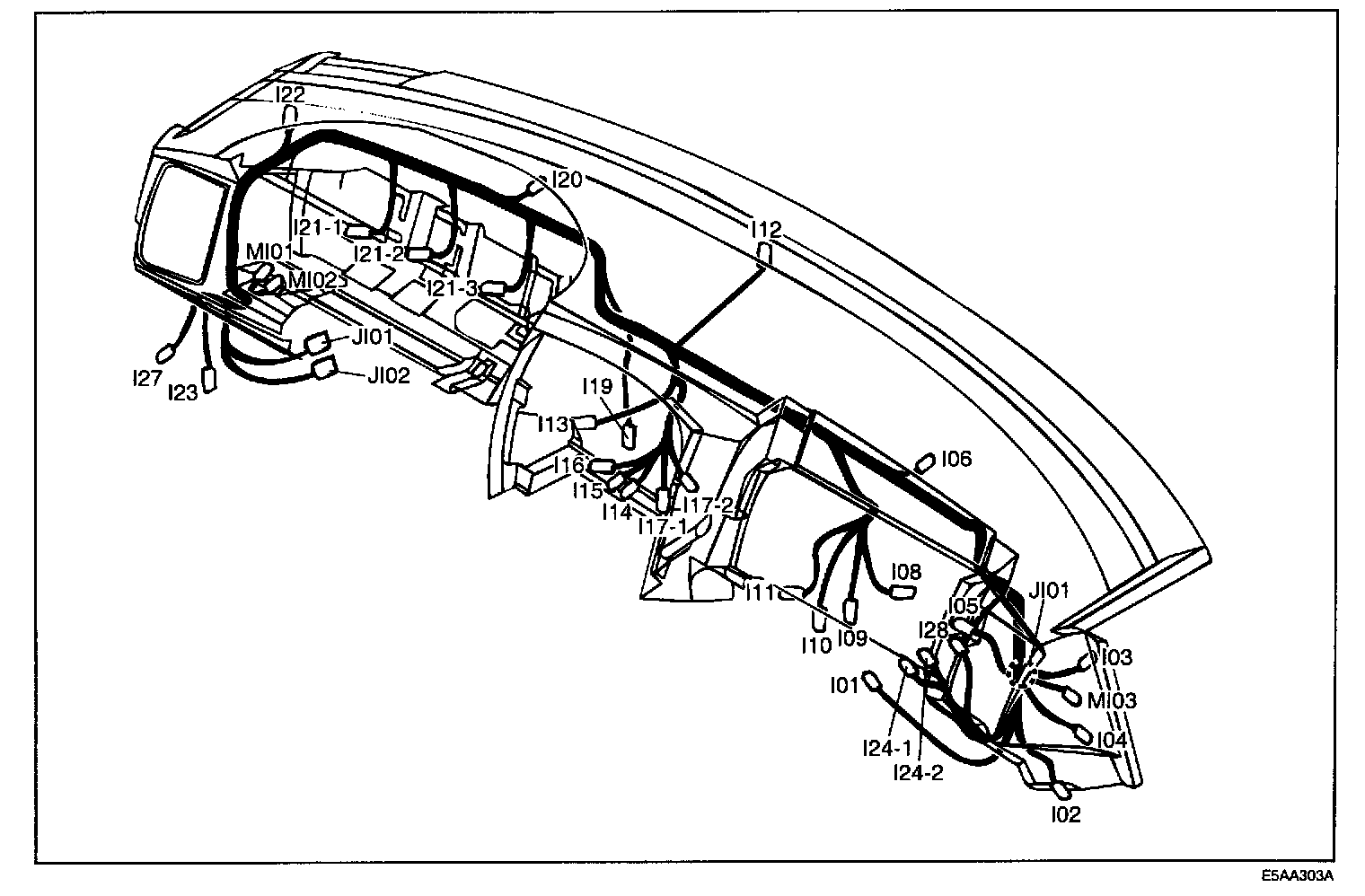

Connector Location:

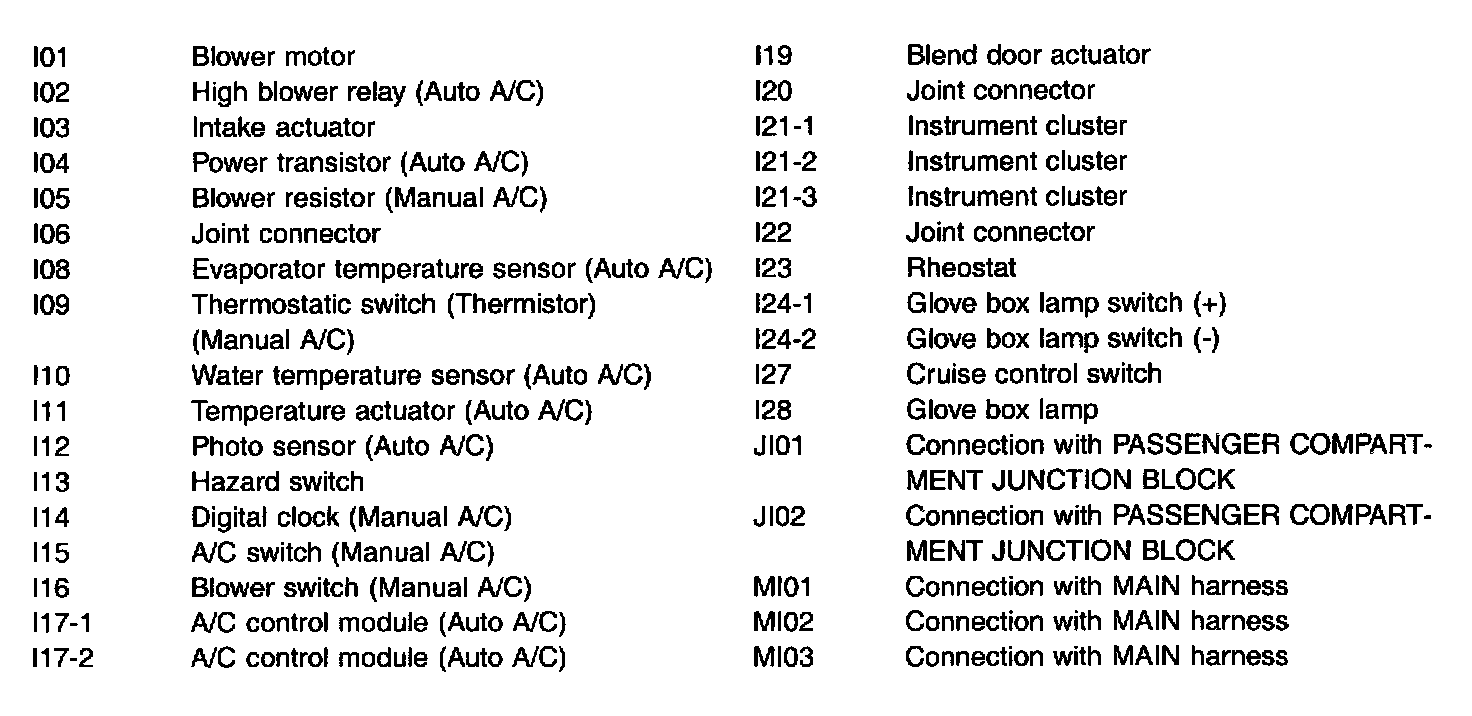

Connector Index:

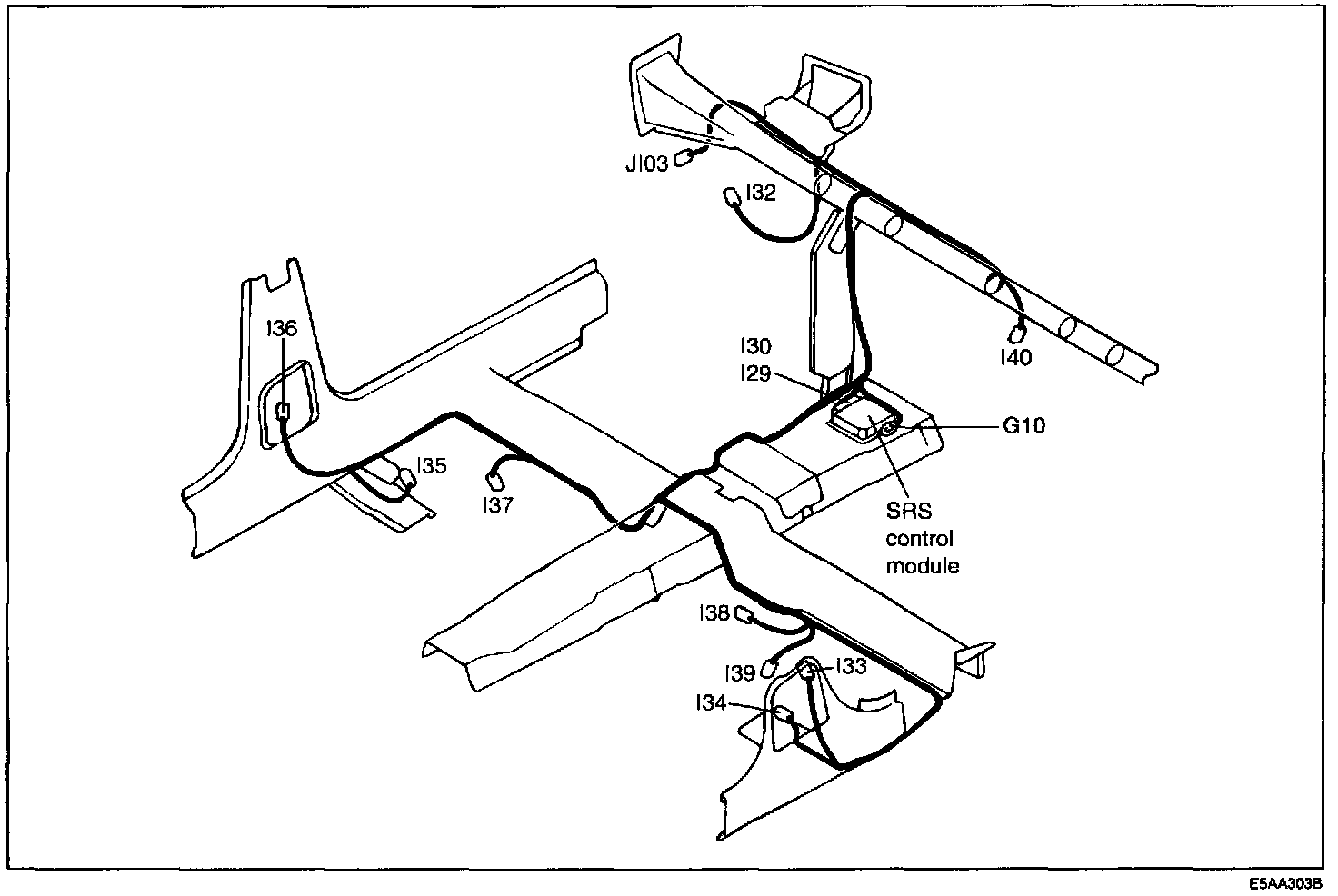

Connector Location (Air Bag):

Connector Index (Air Bag):
