Brake Pedal Assy: Testing and Inspection

SERVICE BRAKE PEDAL INSPECTION AND ADJUSTMENT

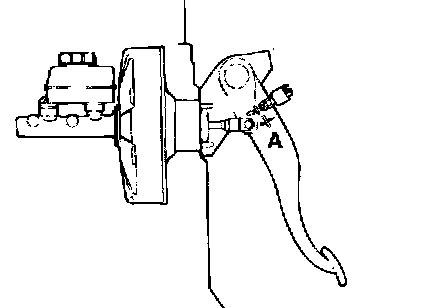

1. Turn the stop lamp switch until the clearance between the stop lamp switch outer case and pedal arm reaches the standard value, and secure the stop lamp switch with the lock nut.
Clearance between pedal and stop lamp switch A 0.5 - 1.0 mm (0.02 - 0.039 inch)

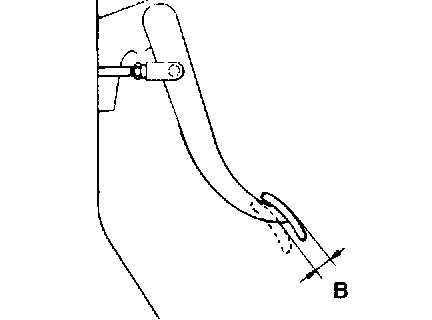

2. Free play of brake pedal.
Brake pedal free play B: 3 - 8 mm (0.117 - 0.312 inch)
