Power Seat Motor: Locations

M100 Power Seat Adjuster Switch, M101 Reclining Adjuster, M102 Front Hieght Adjuster, M104 Rear Height Adjuster:

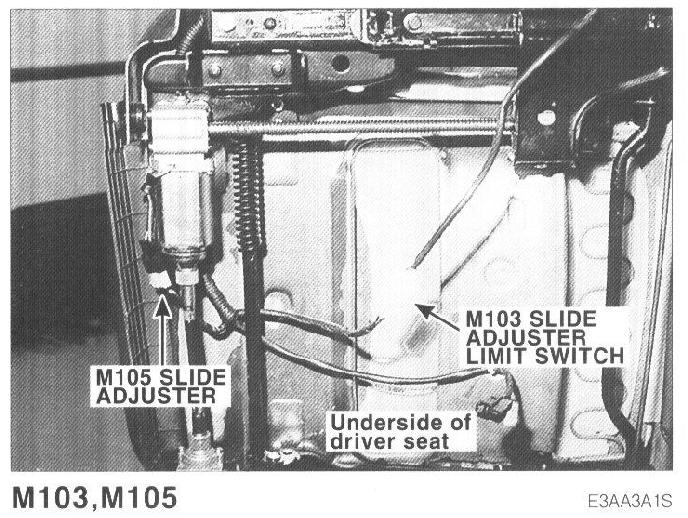

M103 Slide Adjuster Limit Switch, M105 Slide Adjuster:
