Power Seat Switch: Testing and Inspection

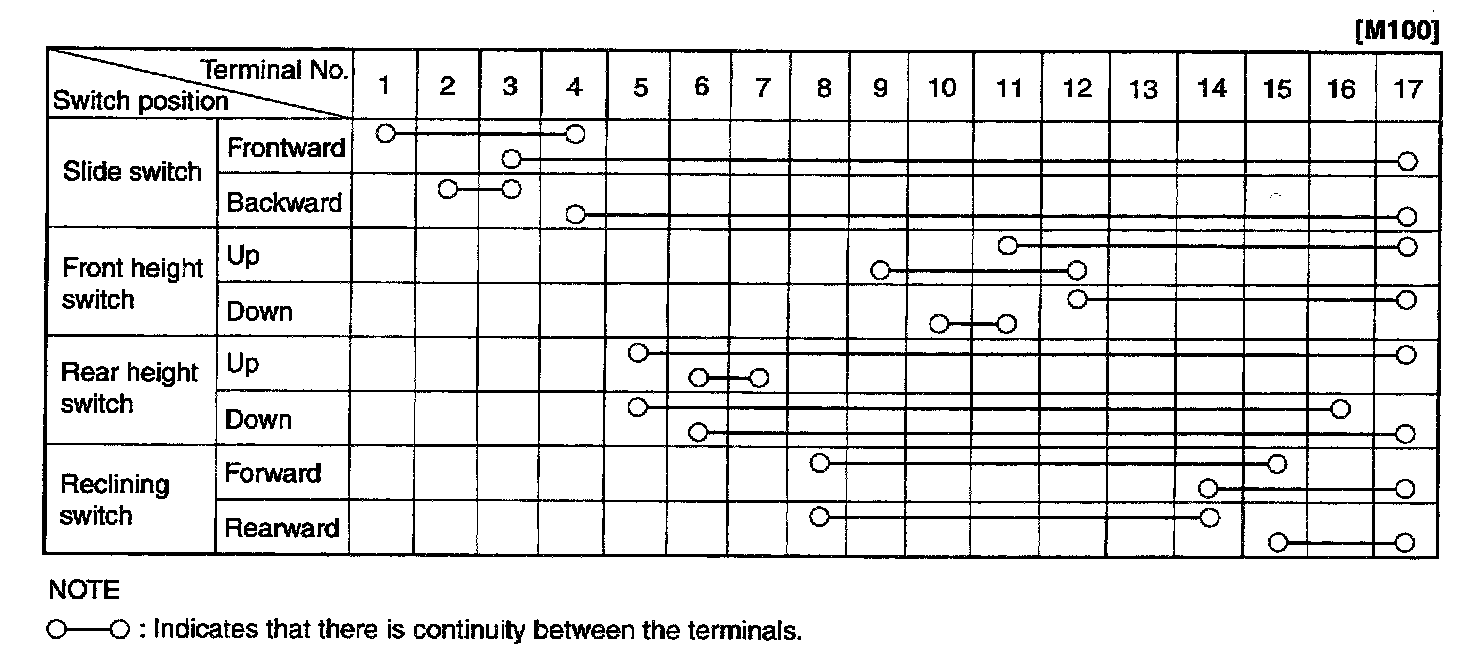

Operate the power seal switch and check for continuity between terminals. If continuity is not as specified, replace the switch.
