CANISTER CLOSE VALVE
The canister close valve is an ON/OFF type which controls the inner pressure of fuel tank caused by fuel evaporation. It is used to close the evaporative system and to observe tank pressure respectively with the fuel tank pressure sensor.

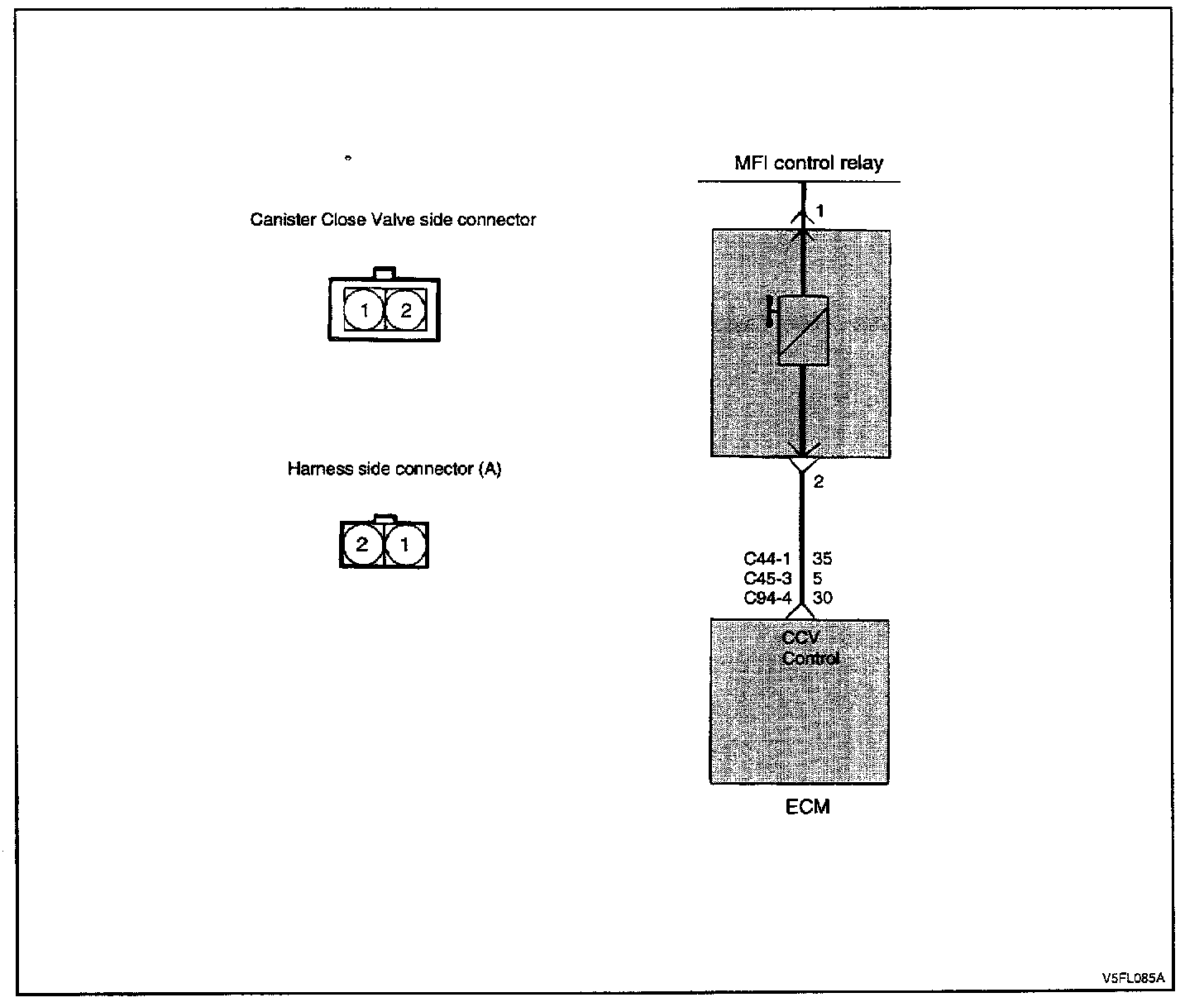

Circuit Diagram:

Harness Inspection:

VALVE INSPECTION
Refer to Component Inspection.

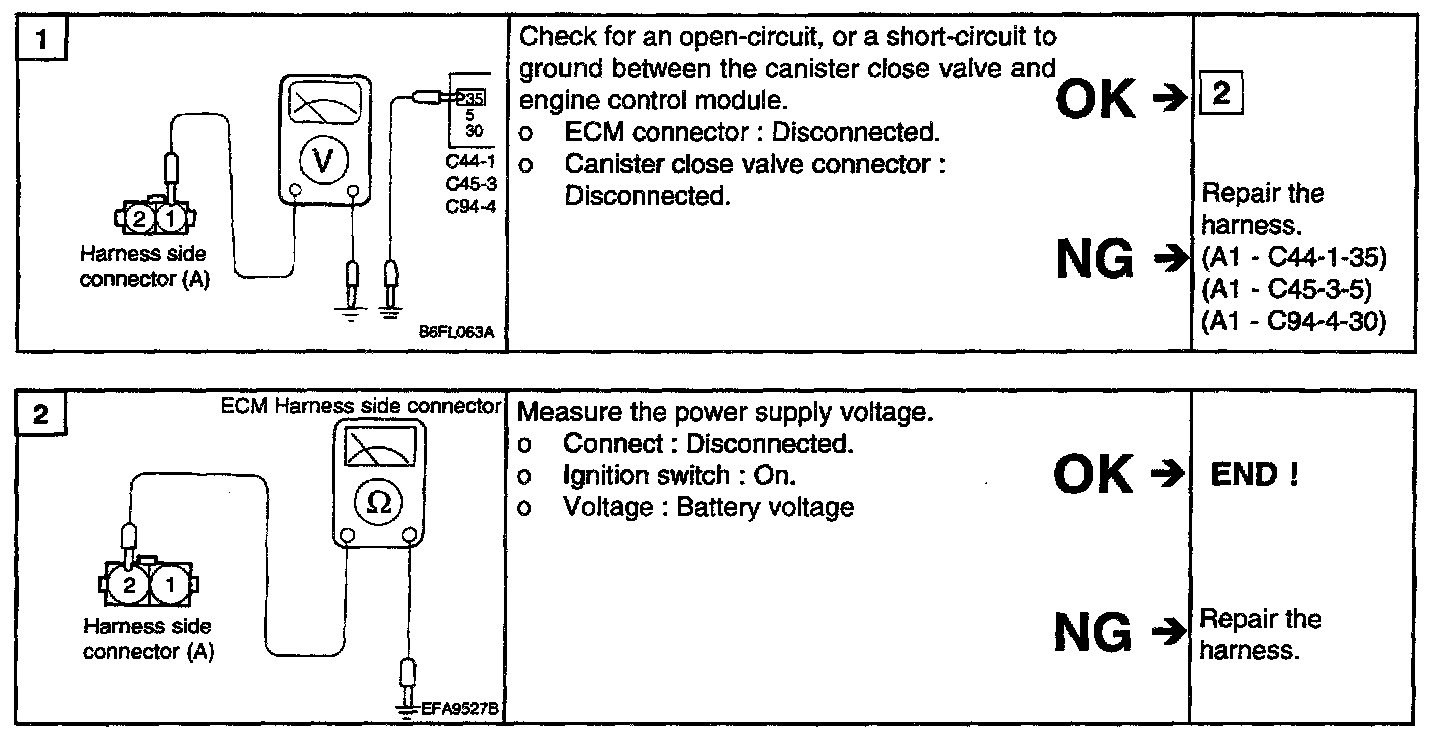

Troubleshooting Procedures:
