Home >> Hyundai >> 2001 >> Sonata L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Sunroof / Moonroof Relay >> Testing and Inspection

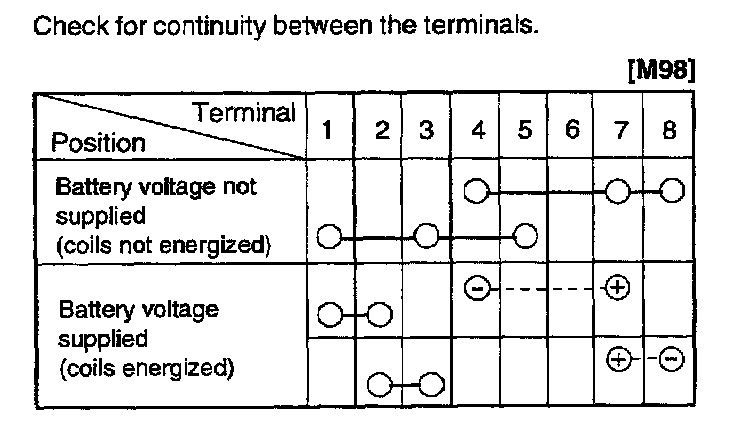

Sunroof / Moonroof Relay: Testing and Inspection

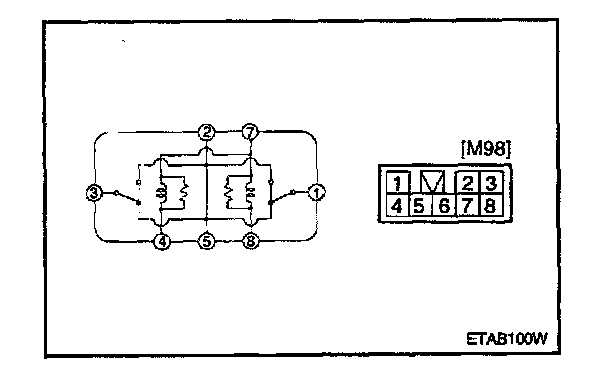

Sunroof Relay Connector M98:
