Antilock Brakes / Traction Control Systems

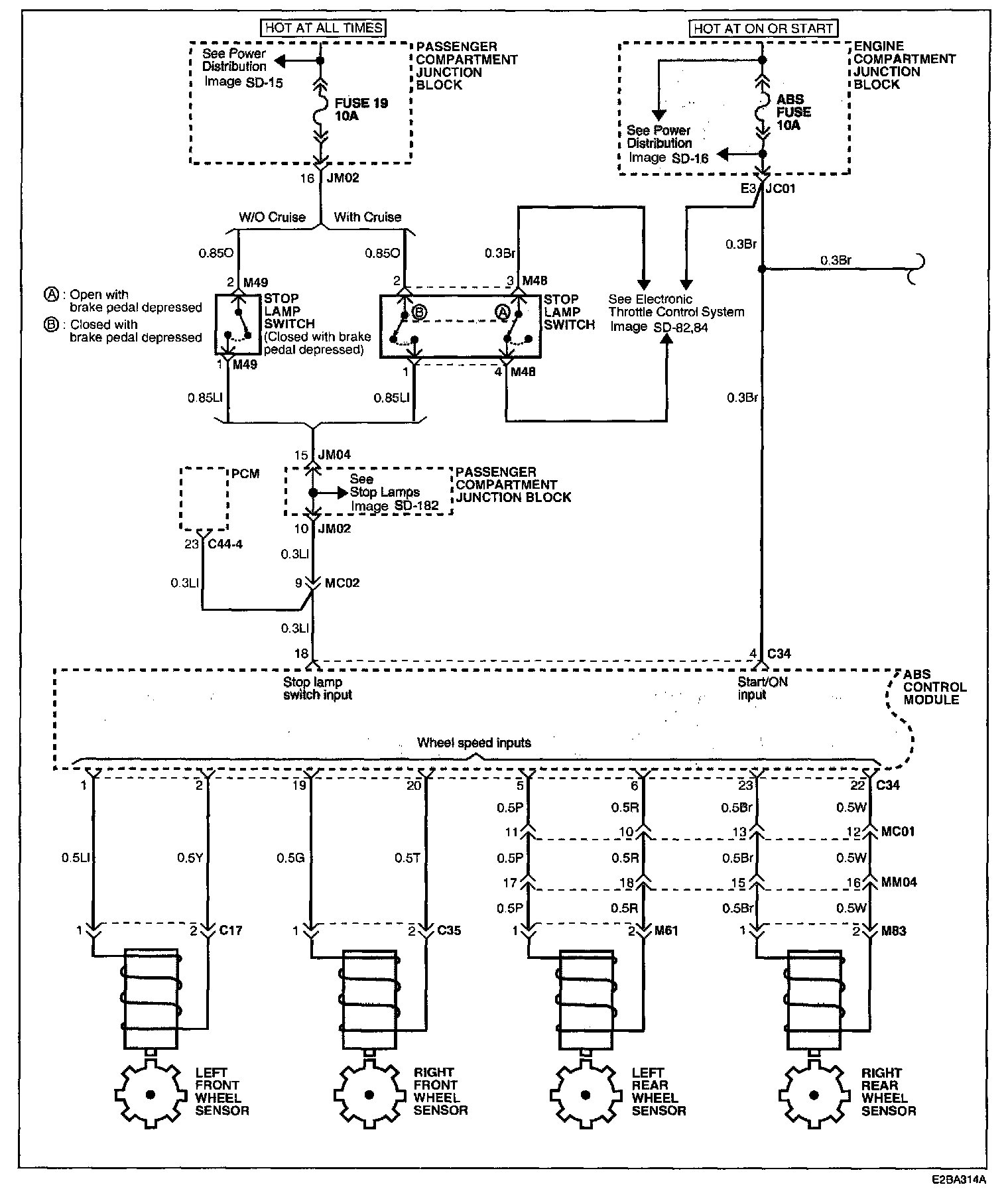

Image SD-90 - Anti-lock Brake System/Traction Control System (1):

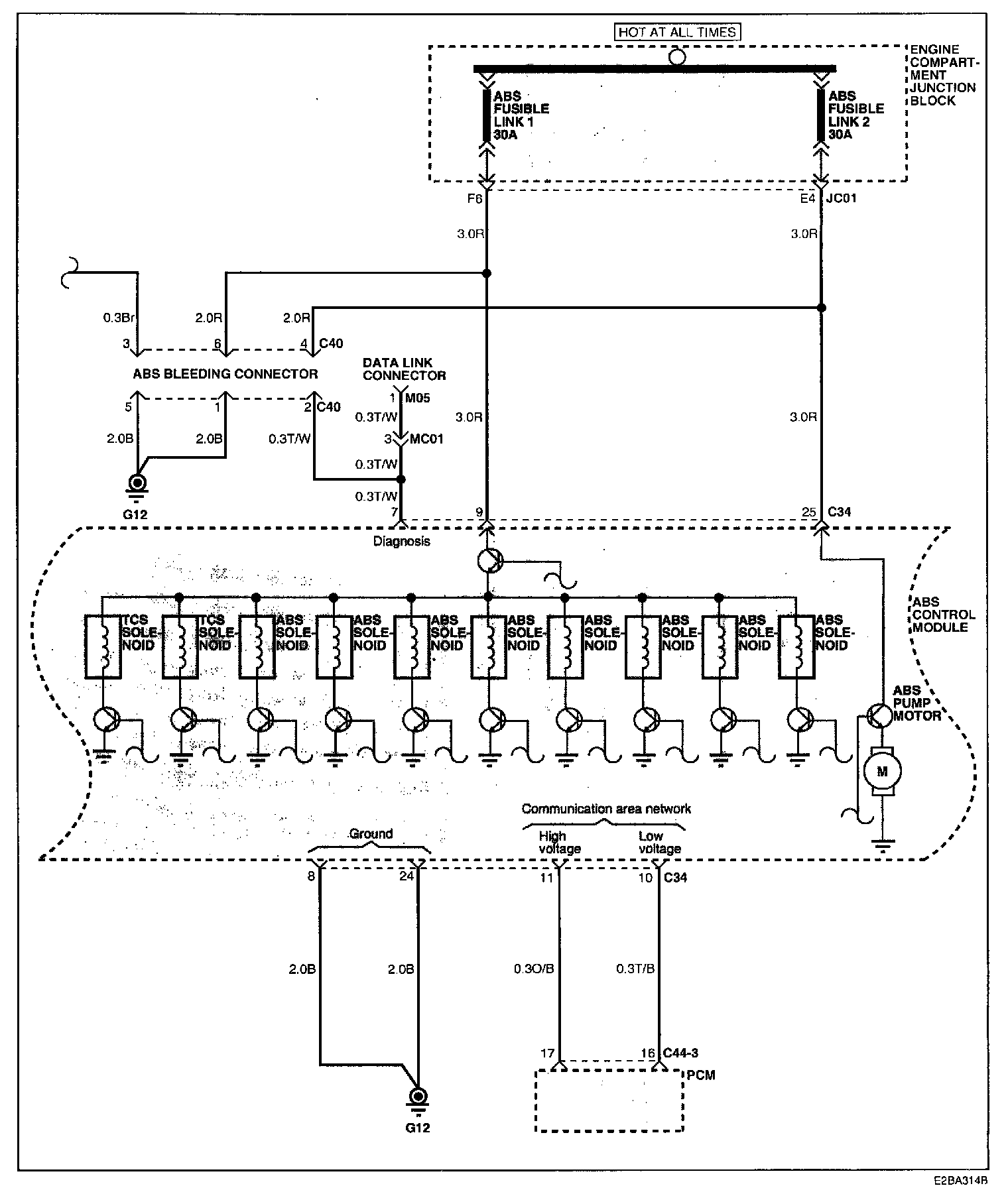

Image SD-91 - Anti-lock Brake System/Traction Control System (2):

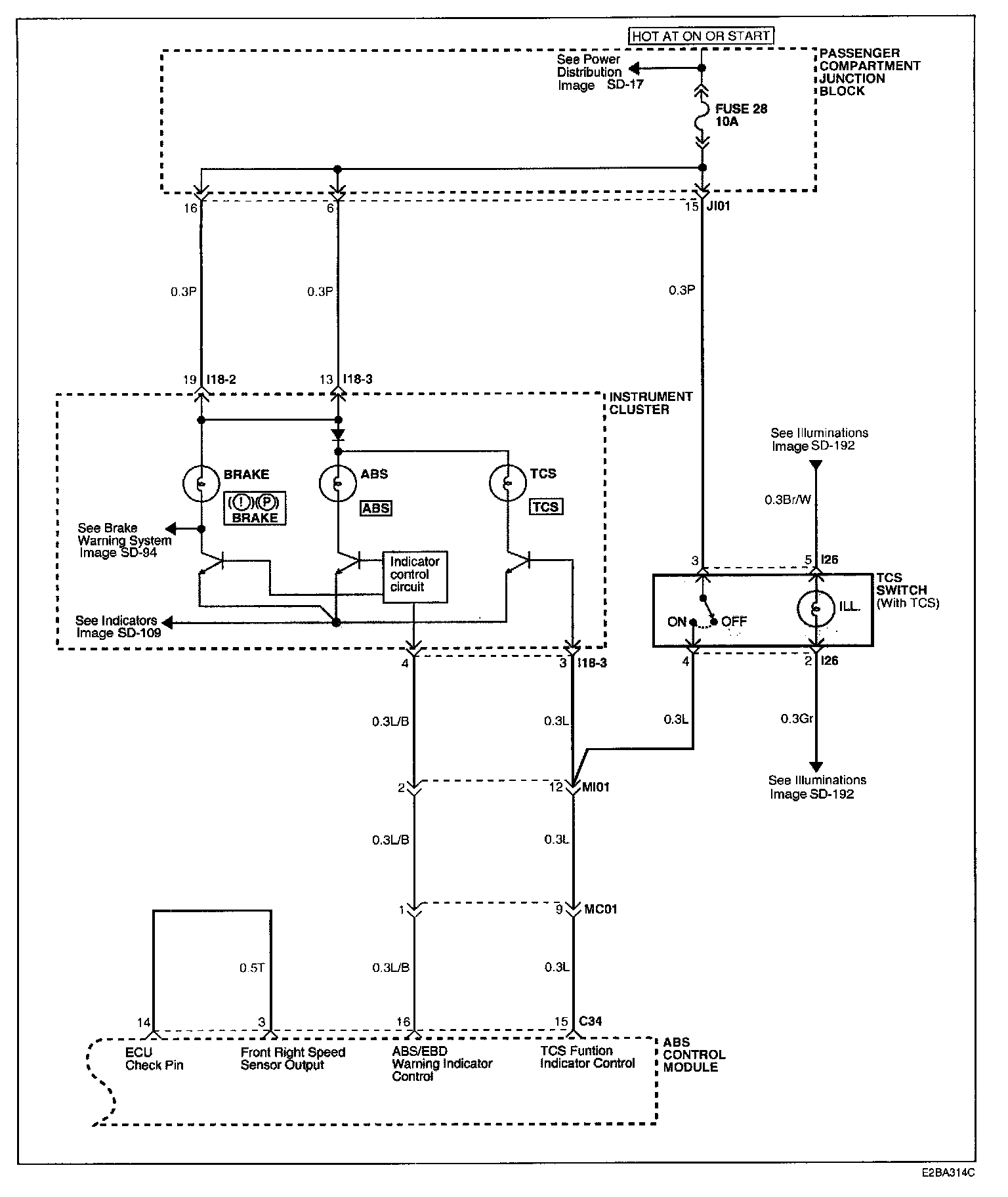

Image SD-92 - Anti-lock Brake System/Traction Control System (3):
