Removal

MANUAL TRANSAXLE SHIFT CONTROL

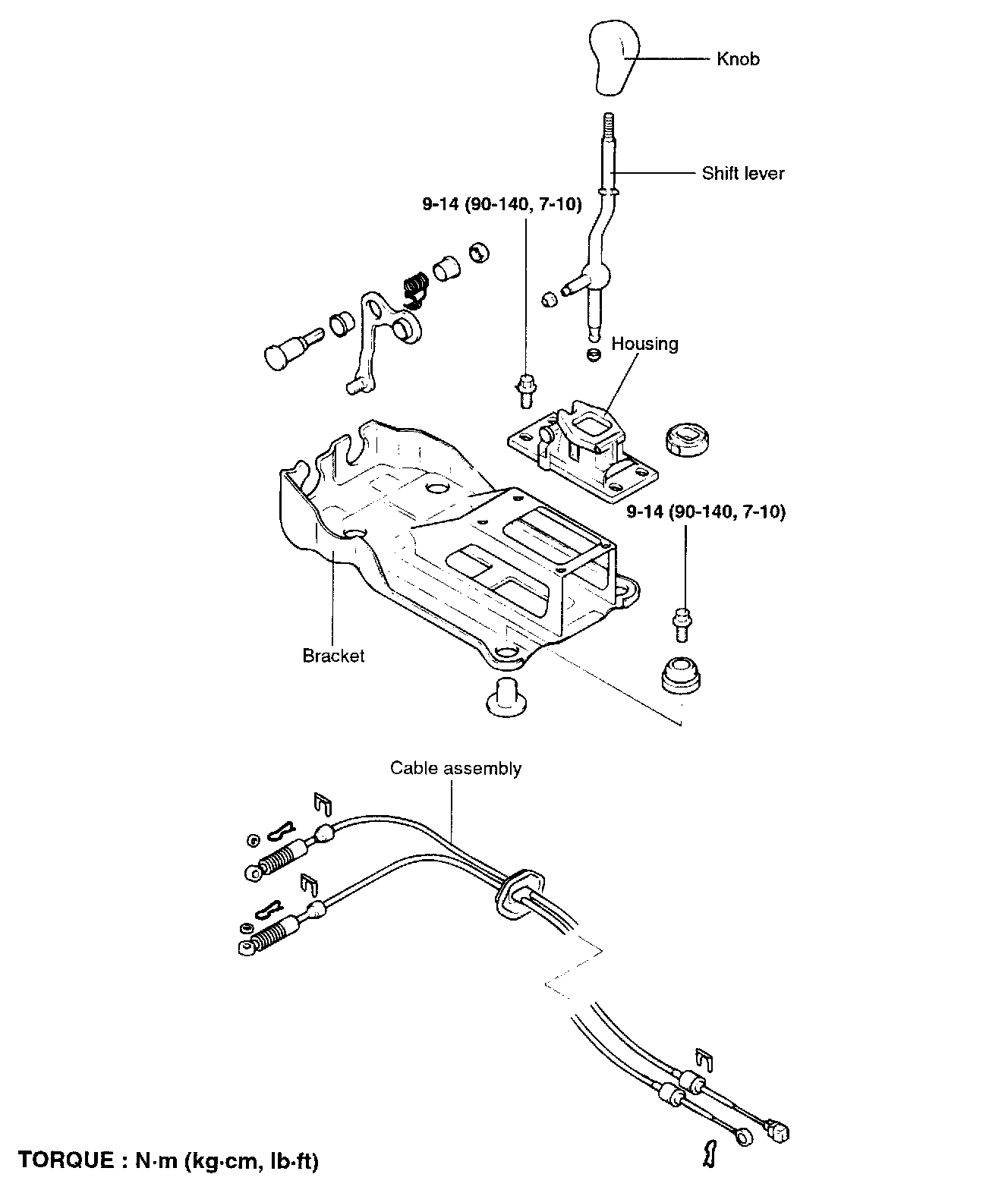

COMPONENTS

REMOVAL





1. Remove the shift knob and the rear console.





2. Remove the front console.





3. Remove the cable mounting bolts of the lower dash board.





4. Remove the cotter pin of the shift cable.





5. Remove the cotter pin of the selector cable.





6. Remove the clip of the shift cable and the selector cable.
7. Remove the shift lever assembly.
